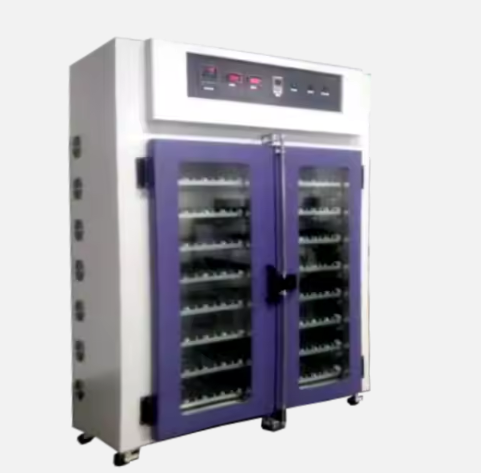

Products Description

Control methods and features:
1、Performance： Balanced temperature control system (BTC), PID control SSR, so that the system of
The heat addition is equal to the heat loss, so it can be used stably for a long time.
2、Temperature range: RT+15℃～100℃
3、Temperature fluctuation：±0.5℃
4、Temperature uniformity：±2℃
5、Rate of temperature rise: 5℃/min (Room temperature ~ 100℃±2℃)
6、Time setting: 0~999H can be set arbitrarily

Machine sheet metal structure:
1、Material of the inner box: SUS # 304 foot 1.2 thick stainless steel plate
2、Outer box material: cold-rolled steel plate, galvanized anti-rust treatment, with high-grade resin baking paint coating
3、Insulation material: hard imported rock wool (Cecil 120K rock wool)
4. Heater: finned heat sink tubular stainless steel heater (Taiwan Taizhan nickel-chromium alloy wire)

Air supply circulation system:
1、Circulation motor 2 sets (Taiwan high-temperature motor)
2, diameter Ø19 extended stainless steel shaft length 180mm
3、 10.5-inch multi-wing type high-temperature resistant wind wheel (special customized by the famous factory)
4、Adjustable side blowing air outlet and return air outlet with the protection net

Circuit control system:
1、Temperature controller: original Taiwan LCD temperature controller
2、Screen display function: temperature setting (SV) and actual (PV) value directly displayed
3、Sensor: high precision Taiwan Songqi PT100 type temperature sensor
4、Temperature control: The output power is calculated by a microcomputer to achieve a high precision control effect
5、Timing function: 0-999H/M/S. With long time timing, constant temperature timing, the untimed selection switch
and automatic stop function when time is up

Safety protection devices:
1、Temperature over temperature protection function
2、Motor over-current protection
3、Machine leakage protection
4、Machine phase failure protection
5、Fault not removed machine alarm

Air Conditioning System:
1, air conditioning method: forced ventilation within the balance of temperature
regulation method (BTC). This method means that under the continuous operation of the heating system, the control system will control the output of the heater according to the set temperature point through the PID automatic calculation output to finally achieve a dynamic equilibrium state.

2、Air circulation device: internal and external fresh air adjustable air inlet and outlet, circulation duct, and long shaft
centrifugal fan. The air circulating device: the inside and outside air inlet and outlet can be adjusted, the circulating air duct
and the long shaft centrifugal extract fan, using the high-efficiency energy regulating system, through the high-efficiency
ventilation fan for effective The air circulation device: the internal and external fresh air adjustable air inlets and outlets,
circulation ducts and long-shaft centrifugal extractor fans use a highly efficient energy regulating system to achieve effective temperature change through efficient ventilation fans.

By improving the airflow, the air flow and heat exchange with the heater and air table cooler, resulting in a significant
improvement in The temperature uniformity of the chamber is greatly improved by improving the airflow and the heat exchange capacity with the heater and air table cooler.

Brand Name

HD

Model Number

HD-G-800

Temperature range

RT+15℃~100℃

Temperature fluctuation

±0.5℃

Temperature uniformity

±2℃

Rate of temperature rise

5℃/min (Room temperature ~ 100℃±2℃)

Time setting

0~9999H can be set arbitrarily
