Daelim Three-Phase UL Pad-Mounted Distribution Transformer
- Section : Electrical & Tools
- Category : Transformers
- SKU : 1600154824773
Daelim Three-Phase UL Pad-Mounted Distribution Transformer
The Daelim Three-Phase UL Pad-Mounted Distribution Transformer is a high-performance, reliable solution designed for efficient power distribution in industrial and commercial applications. Engineered for safety and durability, this transformer is built to handle medium and high voltage with ease. With customizable ratings and certification for quality and safety, it is ideal for power distribution systems that require robust and consistent performance.
Key Features
- Rated Capacity: Available in multiple ratings, including 500kVA, 630kVA, 1MVA, 150kVA, and 333kVA, providing flexibility for various power distribution needs.
- Wide Voltage Range: Operates with input voltages of 35kV, 34.5kV, 33kV, 24.94kV, 13.8kV, 13.2kV, and 12.47kV, and provides output voltages such as 220V, 380V, 440V, 480V, and 400V, making it adaptable to diverse power systems.
- High-Quality Materials: Constructed using silicon steel sheets for optimal core efficiency, and features aluminum or copper winding materials for enhanced durability and performance.

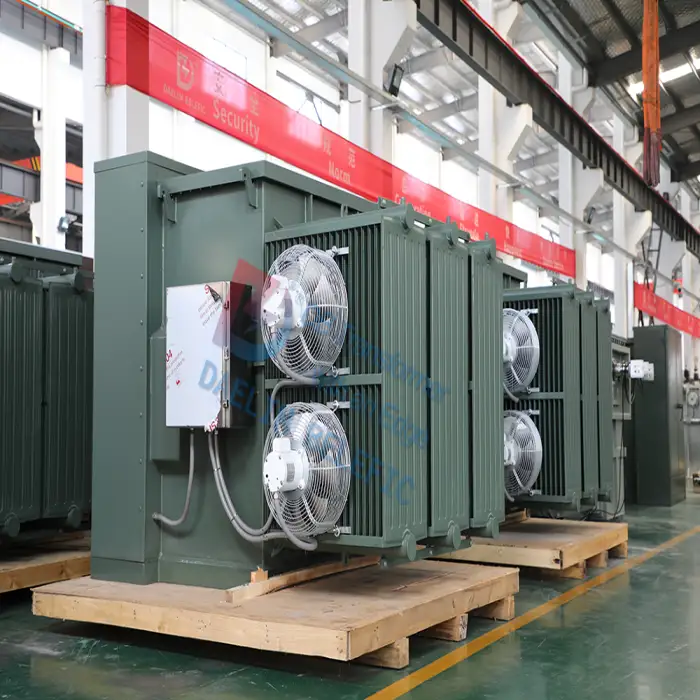

- Cooling Method: Designed with multiple cooling options, including YNd11, Dyn1, and Yny0, to ensure efficient thermal management in different operating environments.
- Certified for Safety: Complies with CSA, UL, and CUL certifications, ensuring it meets stringent quality, safety, and environmental standards.

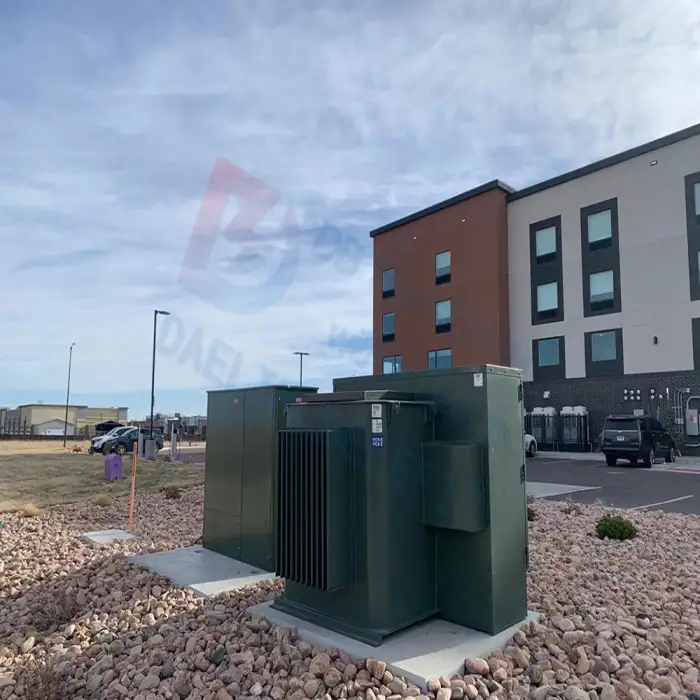

- Type: This transformer is a pad-mounted transformer, designed for outdoor use and easy integration into various distribution networks.
- Frequency Options: Supports 50Hz and 60Hz frequencies, providing compatibility with international grid systems.
- Standard Compliance: Meets ANSI, IEEE, and CSA standards, ensuring superior performance and reliability.
- Warranty: Comes with a 2-year warranty, giving peace of mind with reliable support for years of use.
The Daelim Three-Phase UL Pad-Mounted Distribution Transformer is the perfect solution for reliable and efficient medium-to-high voltage power distribution. With its customizable configurations, durable construction, and top-notch certifications, it offers excellent performance and safety for a wide range of power distribution applications.
Product Info Gallery
| TECHNICAL DATA | |
| RATING | 1,500kVA |
| PRIMARY VOLTAGE(V) | 13,200Grdy/7620 |
| SECONDARY VOLTAGE(V) | 480Y/277 |
| FREQUENCY | 60Hz |
| VECTOR GROUP | YNyn0 |
| WINDING MATERIAL | ALUMINUM |
| IMPEDANCE | 6% |
| ALTITUDE | ≤1,000m |
| No.OF TAP POSITION | 5 |
| TANK & ACCESSORIES | 1,650Kg |
| TOTAL OIL WEIGHT | 1,690L |
| TOTAL WEIGHT | 5,750Kg |
| TECHNICAL DATA | |
| RATING | 2,500kVA |
| PRIMARY VOLTAGE(V) | 13,200/6720 |
| SECONDARY VOLTAGE(V) | 600/347 |
| FREQUENCY | 60Hz |
| VECTOR GROUP | YNyn0 |
| WINDING MATERIAL | ALUMINUM |
| IMPEDANCE | 5.75% |
| ALTITUDE | ≤1,500m |
| No.OF TAP POSITION | 5 |
| TANK & ACCESSORIES | 3,500Kg |
| TOTAL OIL WEIGHT | 1,600L |
| TOTAL WEIGHT | 7,000Kg |
Product Description
Pad mounted transforemers

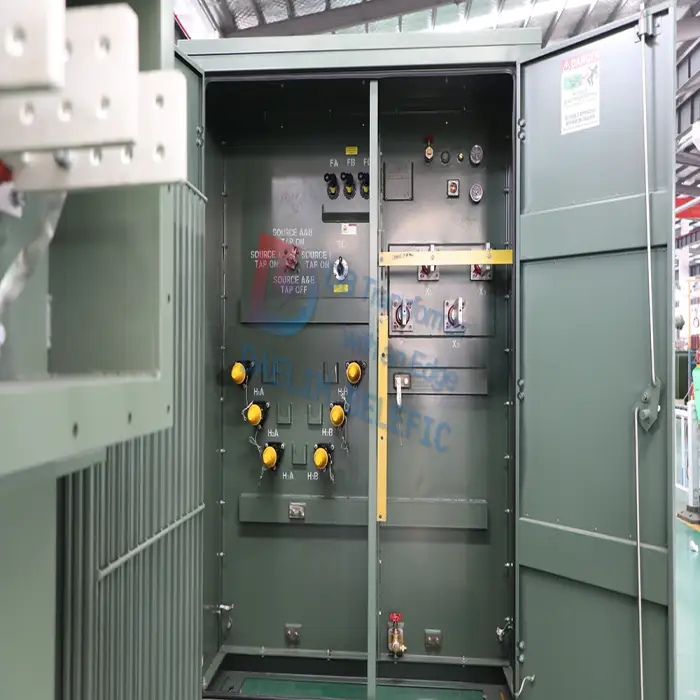

Pad-mounted transformers are made in power ratings from around 75 KVA to around 10 MVA and often include built-in fuses and
switches. Primary power cables are connected with elbow connectors, which can be operated when energized using a hot stick and
allows for flexibility in repair and maintenance.
Our pad mounted transformer is designde and tested in accordance with industry standards including CSA,ANSI C.57,DOE,and IEEE as applicable.
Technical Specification
| Pad Mounted Transformer | ||||
Rated Power (KVA) |
High Voltage (KV) |
Low Voltage (V) | Loss (W) | |
| No-load Loss (W) | On-load Loss (W) | |||
| 75KVA |
34.5KV/ 19.92KV/ 13.8KV/ 79.57KV/ 13.2KV/ 7.62KV/ 12.47KV/ 7.2KV or others |
240V 480V 480Y/ 277V 600Y/ 347V | 180 | 1250 |
| 112.5KVA | 200 | 200 | 1500 | |
| 150KVA | 280 | 280 | 2200 | |
| 225KVA | 400 | 400 | 3050 | |
| 300KVA | 480 | 480 | 3650 | |
| 500KVA | 680 | 680 | 5100 | |
| 750KVA | 980 | 980 | 7500 | |
| 1000KVA | 1150 | 1150 | 10300 | |
| 1500KVA | 1640 | 1640 | 14500 | |
| 2000KVA | 2160 | 2160 | 20645 | |
| 2500KVA | 2680 | 2680 | 27786 | |
| 3000KVA | 3300 | 3300 | 30300 | |
| 3750KVA | 4125 | 4125 | 37875 |
