After Service:The machine will have one year warranty . During the warranty year if any of the parts broken not by man-made . We will free charge to replace the new one to you . The warranty will begin after the machine send out we received the B/L

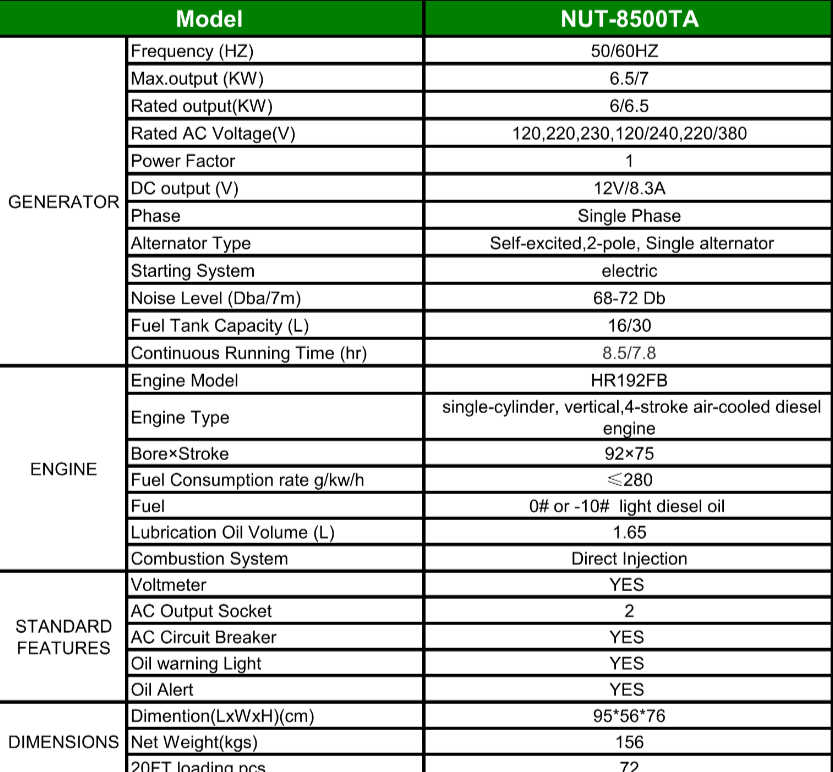

| Model | NUT-8500TA | ||
| GENERATOR | Frequency (HZ) | 50/60HZ | |
| Max.output (KW) | 6.5/7 | ||
| Rated output(KW) | 6/6.5 | ||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380 | ||
| Power Factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single Phase | ||
| Alternator Type | Self-excited,2-pole, Single alternator | ||
| Starting System | electric | ||
| Noise Level (Dba/7m) | 68-72 Db | ||
| Fuel Tank Capacity (L) | 16/30 | ||
| Continuous Running Time (hr) | 8.5/7.8 | ||
| ENGINE | Engine Model | HR192FB | |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | ||
| Bore×Stroke | 92×75 | ||
| Fuel Consumption rate | ≤280 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication Oil Volume (L) | 1.65 | ||
| Combustion System | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC Output Socket | 2 | ||
| AC Circuit Breaker | YES | ||
| Oil warning Light | YES | ||
| Oil Alert | YES | ||
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | OPTIONAL | ||
| Current meter | OPTIONAL | ||
| ATS | OPTIONAL | ||
| Remote control | OPTIONAL | ||
| Welding | NO 无 | ||
| DIMENSIONS | Dimention(LxWxH)(cm) | 95*56*76 | |
| Net Weight(kgs) | 156 | ||
| 20FT loading pcs | 72 | ||
| 20FT loading pcs | 30 |
