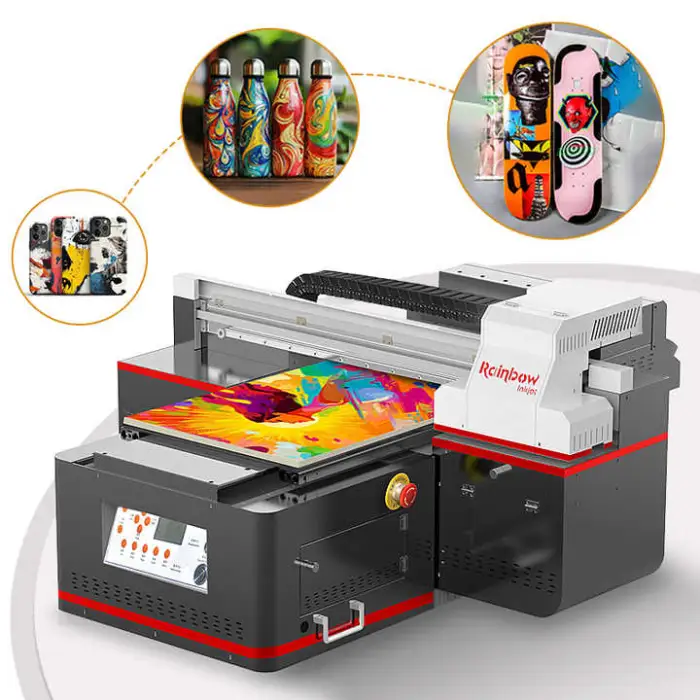

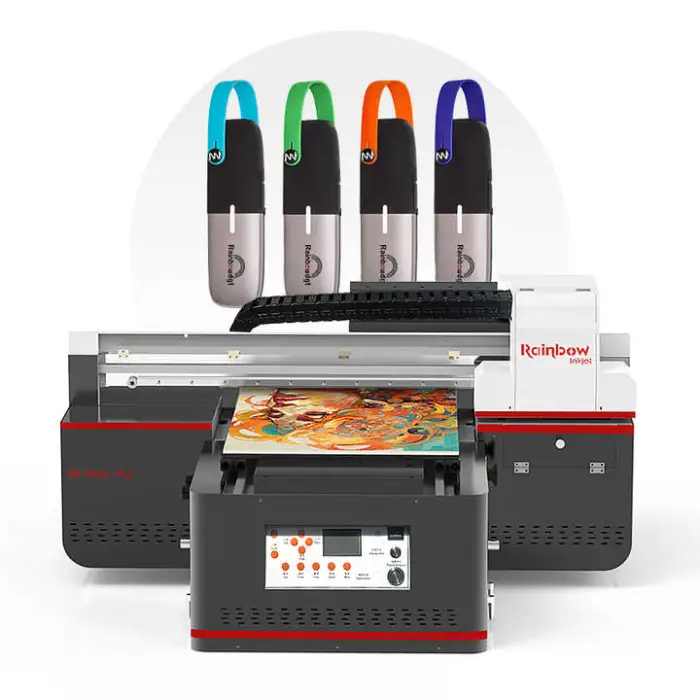

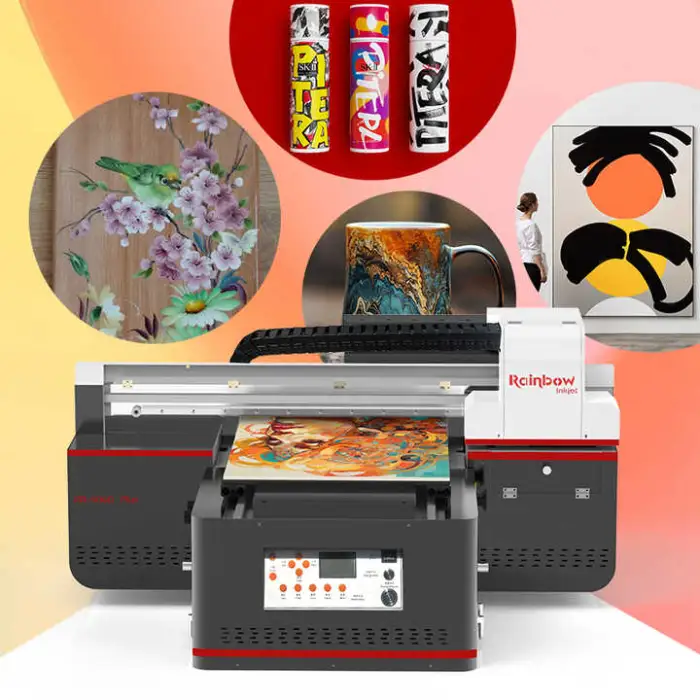

Rainbow A2 A3 Size 4060 Multifunction Mini Uv Printer for Plastic Phone case Wood Acrylic Metal Cylinder Card Uv Printer

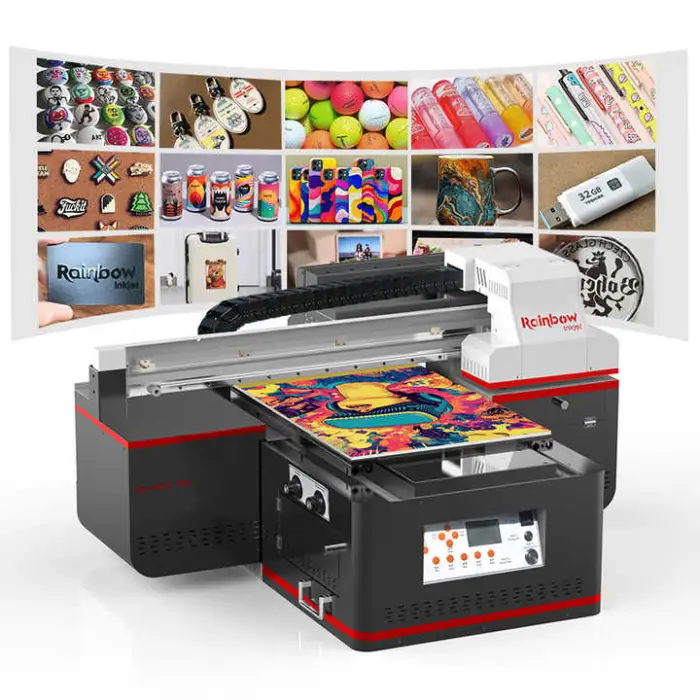

It can print on a wide range of substrates including plastics (phone cases, PVC), wood, acrylic, metal, canvas, leather, cards, and coated tubes. Adhesion may vary by material—testing or primers may be recommended for some low-energy plastics and bare metals.

Maximum flatbed print size is 40 × 60 cm (16" × 24"). Maximum printable height (thickness) is 15 cm (5.9").

The printer supports multiple resolution modes including 1200, 2400, 4800 and up to 9600 dpi. The ink droplet size is 1.5 picoliters for fine detail and smooth gradients.

Color configuration is CMYK plus light cyan and light magenta (Lc, Lm). The system also supports white and varnish/varnish-like effects (listed as WV) for opacity and special finishes.

It uses UV-curable inks. Prints are cured immediately by built-in UV lamps, producing fast-drying, durable prints with good scratch and chemical resistance (substrate-dependent).

The printer is a flatbed model and can be used for tubes/cylinders when equipped with an optional rotary attachment. Confirm availability and supported diameters with the supplier.

The unit uses an Epson print head. Included software is Maintop (RIP) and WellPrint (printer control) for workflow, color management and job setup.

Maintop/WellPrint RIPs typically accept standard image and layout formats such as TIFF, JPEG, PNG, PSD, PDF and EPS. The control software commonly runs on Windows—confirm exact OS/version requirements with the seller.

Most printers in this class support USB and Ethernet connectivity for file transfer and network printing. Verify exact ports and network setup details with your supplier or in the user manual.

Routine maintenance includes daily/weekly head cleaning cycles, capping station care, periodic ink line purges, UV lamp checks, and using recommended UV inks and consumables. Follow the manufacturer maintenance schedule to avoid clogging and ensure consistent output.

Yes—for some low-energy plastics (e.g., TPU, some ABS) and bare metals, a primer or surface pre-treatment (flame/Corona, chemical primer) may be required to ensure long-term adhesion. Always test before full production.

Dimensions are approximately 97 × 101 × 56 cm (L × W × H). Weight is about 90 kg. Voltage range is 110–220 V (confirm exact plug type and power specs with supplier).

Consumables include UV ink cartridges, waste ink pads/containers, maintenance cartridges, UV lamps and eventually replacement print heads or caps. Stock genuine parts recommended by the manufacturer for reliability.

Handle UV inks with gloves and avoid skin contact; follow the ink MSDS. Ensure adequate ventilation (cured prints have low emissions, but uncured ink can be hazardous). Protect eyes from UV lamp exposure and follow local disposal regulations for waste ink and cartridges.

Warranty, training and support packages vary by supplier. Many vendors offer at least limited hardware warranty, remote support, and optional on-site installation/training. Confirm warranty length, what is covered, and available service options with the seller before purchase.
