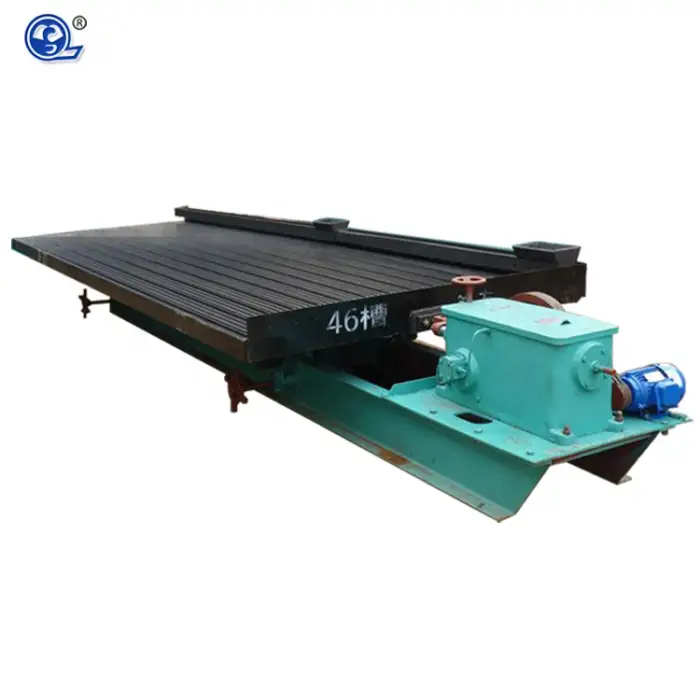

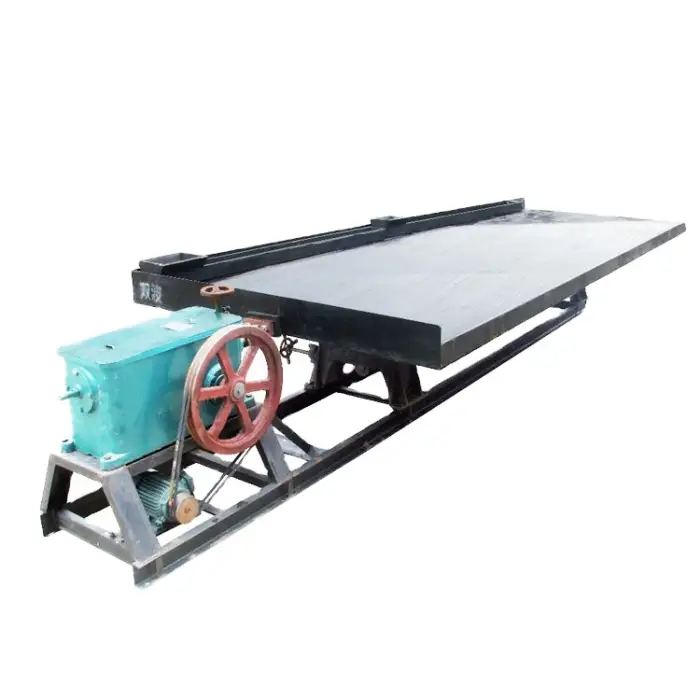

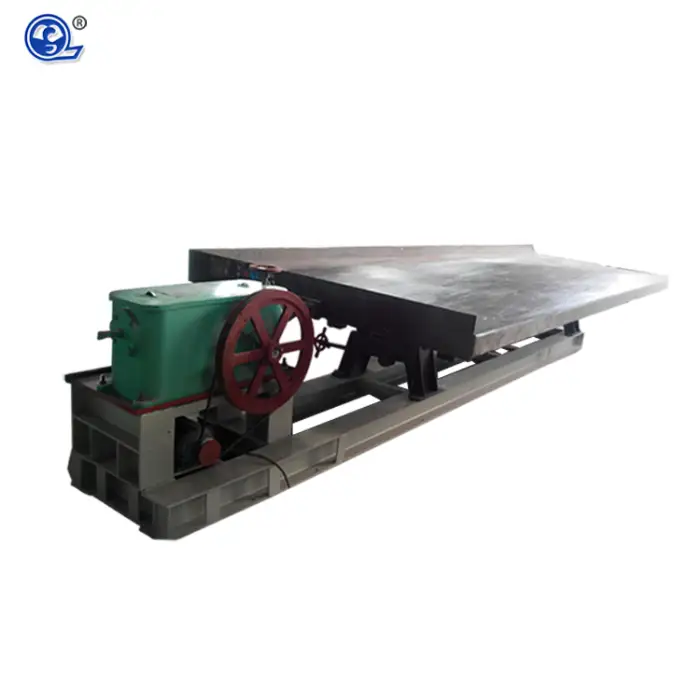

Gravity Wilfley Wet 6S Shaking Table Concentrating Copper Gold Sorting With Fiberglass Deck/mineral Separator with Full set including Feeding Chute, Table, Channel Frame, Transmission Box & Electric Motor

A gravity-based wet concentrating table designed to separate and concentrate minerals such as copper and gold. It features a fiberglass deck, a full equipment set (feeding chute, table, channel frame, transmission box, electric motor) and is intended for small to medium scale mining operations.

Primarily gold and copper concentrates, but it can also be used for other mineral materials that respond to gravity separation. Suitability depends on mineral density and particle size; contact the supplier with sample details for confirmation.

Rated up to 15 tons per day. Actual throughput depends on ore characteristics, feed preparation, particle size distribution and table settings.

Type: Gravity Separator. Production capacity: 15t/day. Voltage: 380V (customizable). Weight: 800 kg. Dimension: 4450 x 1550 mm (L x W). Deck: Fiberglass. Core components: gear transmission (brand: Mingxin).

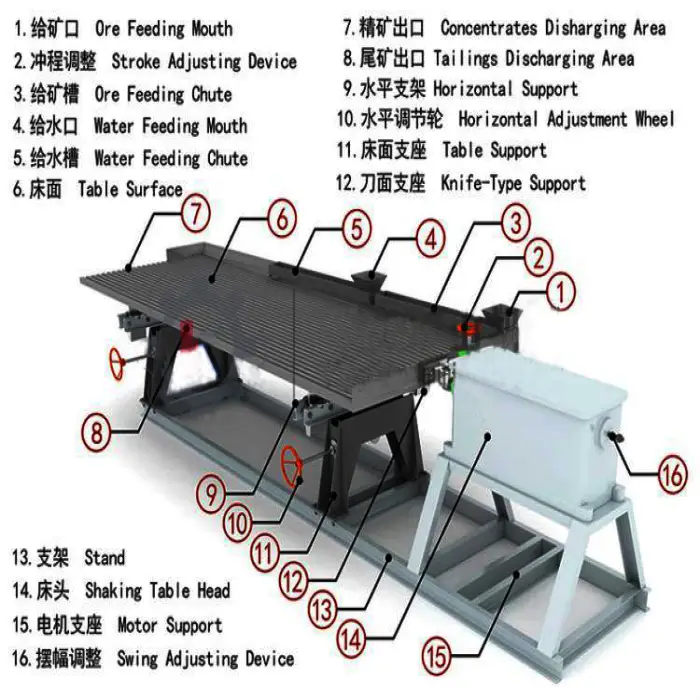

Feeding chute, shaking table with fiberglass deck, channel frame, transmission box (gear), and electric motor. The package also comes with a comprehensive machinery test report.

Standard supply is 380V. Custom voltage options are available upon request. An electric motor is included; specific motor power and electrical consumption depend on the ordered configuration—please request motor specifications for your model.

An engineer installation guide is provided. Onsite installation or commissioning assistance can usually be arranged—contact the supplier to discuss engineer dispatch, costs and local requirements.

Separation is achieved by a combination of table motion, riffle pattern and water flow that stratify particles by density. The product is described as having high separation efficiency; actual recovery and grade depend on ore properties and operating conditions. A machinery test report is provided to demonstrate performance with given feed conditions.

Proper feed preparation (classification, desliming and slurry concentration) improves performance. Exact recommended particle size range and pulp density depend on the ore; provide sample material to the supplier for specific recommendations and pre-sale test work.

Regular tasks include keeping the fiberglass deck and riffles clean, checking and maintaining the transmission box (lubrication/oil level), inspecting and tightening mechanical fasteners, checking motor mounts and electrical connections, and replacing worn deck or riffles as needed. Follow the supplied maintenance guide.

Yes. Spare parts are available—contact the supplier for a parts list, lead times and pricing (common spares include deck panels, riffles, drive components, motor parts and seals).

A warranty is provided with the product. For warranty length, coverage details and claim procedures, contact the seller or refer to the sales contract and warranty documentation.

Follow standard electrical safety (lockout/tagout, proper grounding), use personal protective equipment (gloves, goggles, hearing protection), avoid contact with moving parts, maintain slip-free working areas around wet equipment, and ensure correct handling of slurry and tailings. Refer to the supplied safety and operation manual.

Contact the supplier or sales representative with your required configuration, voltage, shipping destination and any sample material for test work. They can provide quotations, lead times, shipping options and a comprehensive machinery test report tailored to your feed.
