AKG6090 CNC Router 3 Axis - ACCTEK
- Section : Machinery
- Category : Woodworking Machinery
- SKU : 60738494108

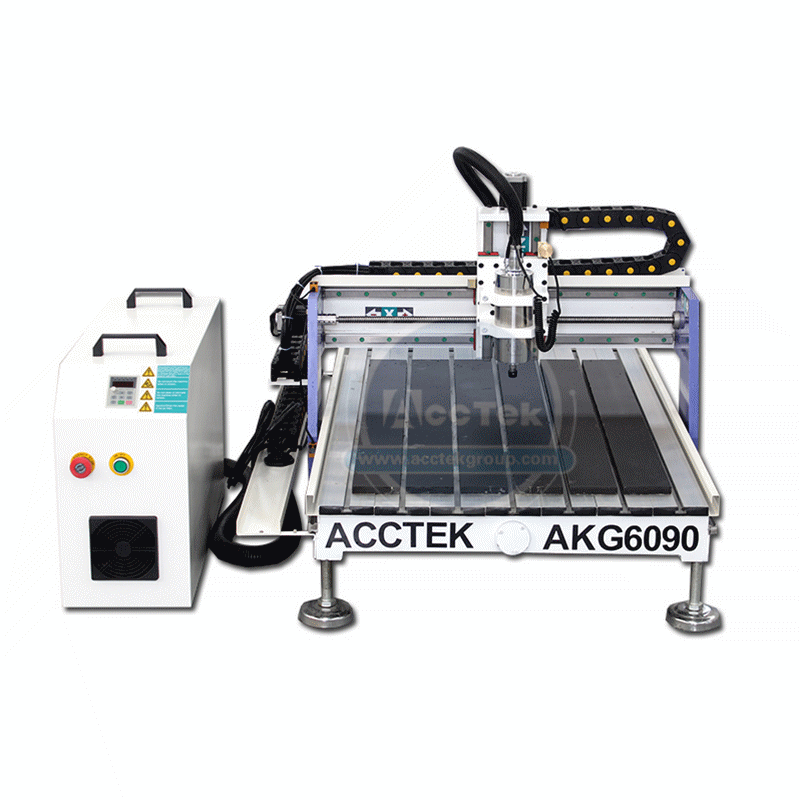

CNC Router 3 Axis - ACCTEK
Introducing the ACCTEK CNC Router 3 Axis! This powerful machine is designed for precision and efficiency, making it ideal for a wide range of applications, from woodworking to metalworking.
Key Features:
High Precision: With a positioning accuracy of 0.03 mm and repeatability of 0.01 mm, this CNC router ensures detailed and accurate cuts every time.

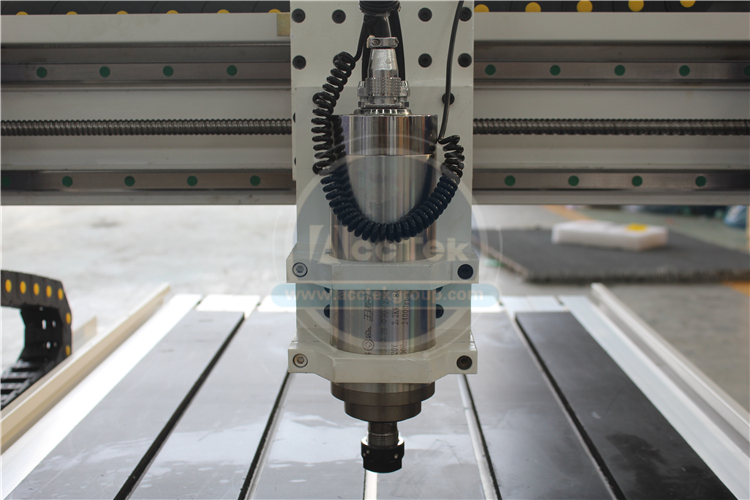

Powerful Spindle: Equipped with a 1.5KW water cooling spindle, it supports spindle speeds ranging from 1 to 24,000 RPM, allowing for versatile machining capabilities.
Robust Structure: The cast iron framework provides stability and durability, ensuring the machine can withstand heavy use.
Large Travel Capacity: The router offers travel dimensions of 600 mm on the X axis and 900 mm on the Y axis, making it suitable for various project sizes.
User-Friendly Design: The ACCTEK CNC Router is easy to operate, making it accessible for both beginners and experienced users.
Efficient Driving System: Features a stepper motor with a Leadshine driver, providing smooth and precise movements.
Quality Components: Utilizes Taiwan TBI ball screws for all axes, ensuring reliable performance and longevity.
Product Specifications:
- Number of Axes: 3
- Number of Spindles: Single
- CNC Type: Yes
- Voltage: 220V/380V
- Power: 2.5 kW
- Weight: 230 kg
- Spindle Motor Power: 1.5 kW
- Max Motion Speed: 8,000 mm/min
- Max Engraving Speed: 6,000 mm/min
- Dimensions: 600 mm x 900 mm x 200 mm
- Packing Size: 1340 mm x 1040 mm x 1185 mm
- Packing Weight: 250 kg
The ACCTEK CNC Router 3 Axis is the perfect choice for those seeking precision and efficiency in their machining projects. Its advanced features and robust construction make it a valuable addition to any workshop.
In conclusion, if you are looking for a reliable and high-performing CNC router, the ACCTEK 3 Axis is an excellent option. Experience the difference in quality and performance for all your machining needs!
Product Info Gallery
Feature of mini cnc engraving machine 6090 cnc router 3 axis:1) The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability.2) Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc3) Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed. Adopting Taiwan’s high-precision square linear guide, effectively imported the precision of carving.4) Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life. 5) Available for continuous work for a long time.
Machine Details
Machine parameter
| Model | AKG6090 |
| Working Area | 600x900x200mm |
| Frame | Cast iron |
| Spindle Motor | 1.5kw water cooling spindle |
| Rotating Speed of Spindle | 24 000rpm |
| Working Mode | NEMA23 Stepper motor and Leadshine driver |
| Control System | Mach3 control system |
| Drive Mechanism | Taiwan TBI ball screw for all axis |
| Table Surface | T-slot table |
| Max Motion Speed | 8 000mm/min |
| Max Engraving Speed | 6 000mm/min |
| Motion Positioning Accuracy | ± 0.03mm |
| Graphic Format Supported | G Code, *uoo, *mmg, *plt |
| Software | Artcam, Type3 |
| Working Voltage | AC220 1PH, 50/60Hz |
Application and Working Samples
1) Wood furniture industry.
Doors, cabinets, tables, chairs, wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2) Advertising industry.
Signage, logo, badges, display board, meeting sign board, billboard advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3) Die industry.
Sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4) Artwork and decoration.
Wood crafts, gift box, jewelry box.
5) Others.
Relief sculpture and 3D engraving and cylindrical object.
Our Services
1) Guarantee 3 years guarantee of the whole machine. 2) Software issue Our technician is able to re-install or set up by remote for free. 3) Hardware issueMain parts(excluding the consumables) shall be replaced/repaired free of charge if there is any problem during the warranty period. 4) Support online Our technician is able to teach you online to run the machine oreliminate the fault for free. 5) Training in AccTek factory We are able to train your staff after placed order in our factory for free. 6) On-site training(Recommended, the most effective way)We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight, visa, hotel, training costs, etc.)
