WMTCNC Vertical Drilling Z5045
- Section : Electrical & Tools
- Category : Power Drills
- SKU : 62071682886

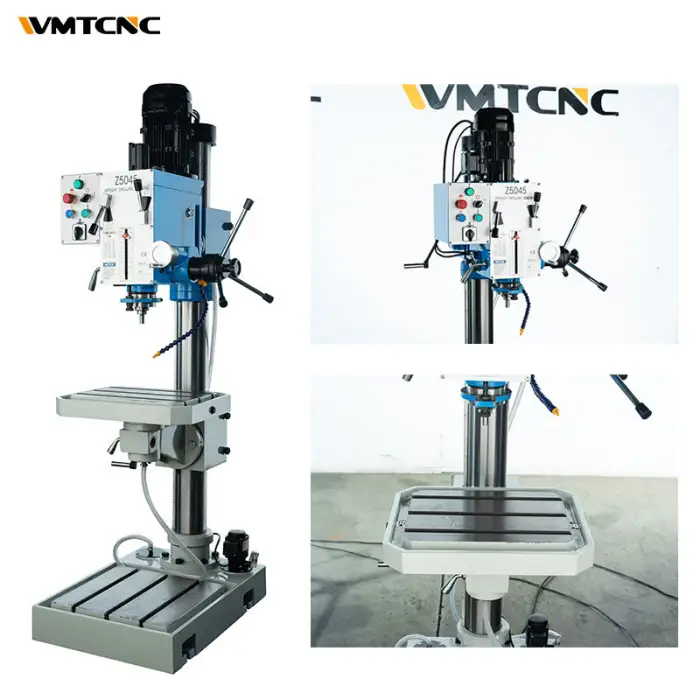

WMTCNC Vertical Drilling Z5045
The WMTCNC Vertical Drilling Z5045 is a high-performance vertical drilling machine, ideal for precision metal processing tasks. Featuring a robust 1.5kW power motor and a max drilling diameter of 45mm, this machine is designed for metal drilling, milling, and tapping, making it perfect for applications that require accuracy and reliability.
Key Features
High Drilling Capacity (45mm):
With a maximum drilling diameter of 45mm, the Z5045 provides exceptional drilling power, making it ideal for a wide range of metal processing tasks. It’s capable of handling medium to large-scale drilling applications with ease.
Adjustable Spindle Speed (80-1250rpm):
The Z5045 comes with a variable spindle speed range (80 - 1250 rpm), giving you the flexibility to adjust the speed according to the material and specific requirements of your drilling project.
Powerful 1.5kW Motor:
Equipped with a 1.5kW motor, this vertical drilling machine provides the necessary strength to complete demanding tasks. Whether you're drilling, milling, or tapping, it offers reliability and consistent performance.
Versatile Metal Processing Application:
Perfect for metal drilling, milling, and tapping, the Z5045 can handle a variety of materials, from standard metals to more complex alloys. It's a perfect fit for industrial environments that require precise, high-volume processing.
Durable and Reliable:
The Z5045 features high-quality components including bearing, pump, gear, PLC, and pressure vessel, ensuring durability and long-term reliability. It’s built to withstand heavy use in demanding industrial environments.
Compact and Sturdy Design:
The Z5045 is designed with a sturdy frame and a table size of 380*300mm, making it ideal for both small and medium-sized workshops. Its compact structure allows easy integration into your workshop space.
Competitive Price:
Offering outstanding value, the WMTCNC Vertical Drilling Z5045 combines precision, power, and durability at a competitive price, making it a great investment for businesses looking to upgrade their metal processing capabilities.
Comprehensive Warranty:
The Z5045 is backed by a 13-month warranty, ensuring peace of mind for your investment and protection against manufacturing defects.
Specifications
- Model Number: Z5045
- Brand Name: WMTCNC
- Type: Vertical Drilling Machine
- Power: 1.5kW
- Max Drilling Diameter: 45mm
- Spindle Speed: 80 - 1250 rpm
- Voltage: 220/380V
- Table Size: 380*300mm
- Core Components: Bearing, Pump, Gear, PLC, Pressure Vessel
- Weight: 530kg
- Dimensions (LWH): 18507501000mm
- Warranty: 13 months
- Application: Metal processing (drilling, milling, tapping)
- Machinery Test Report: Provided
- Video Outgoing Inspection: Provided
- Color: Customer required (customizable)
- Keyword: CNC Vertical Drilling Milling Tapping Machine
- Usage: Metal drilling, milling, and tapping
Why Choose the WMTCNC Vertical Drilling Z5045?
- Precision: The Z5045 is engineered to meet the needs of high-precision drilling, milling, and tapping applications.
- Adjustable Speeds: With variable spindle speeds, you can optimize performance for different materials and tasks.
- Durability: Built with top-tier components, it is designed for long-lasting and reliable operation.
- Competitive Price: Get a top-quality vertical drilling machine at an affordable price, perfect for businesses aiming to improve their machining capabilities.
- Warranty and Support: With 13 months of warranty, you can be confident in your purchase, knowing you are covered by professional support.
Features:
1,Drilling,milling,tapping.
2,Headstock and worktable up and down perpendicularly.

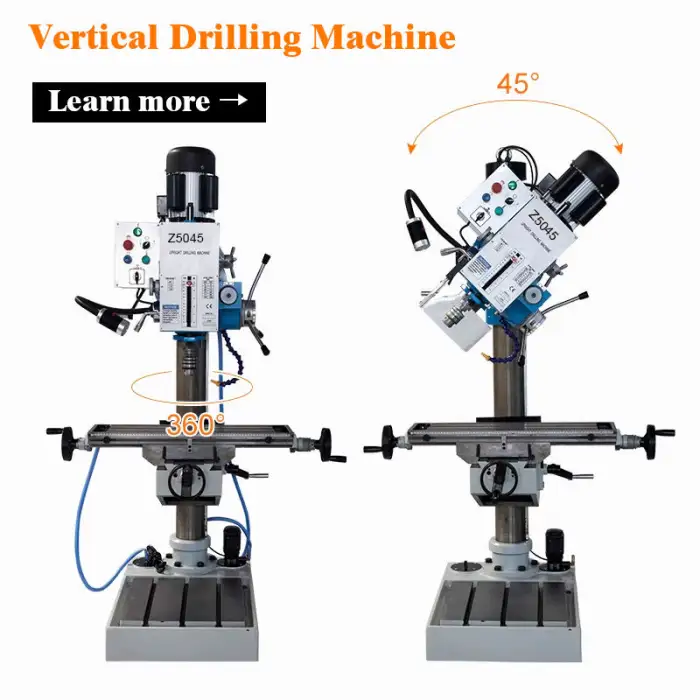

3,Head swivels 360° horizontally.
4,Gear driven,lower noise.
5,Positive spindle lock.

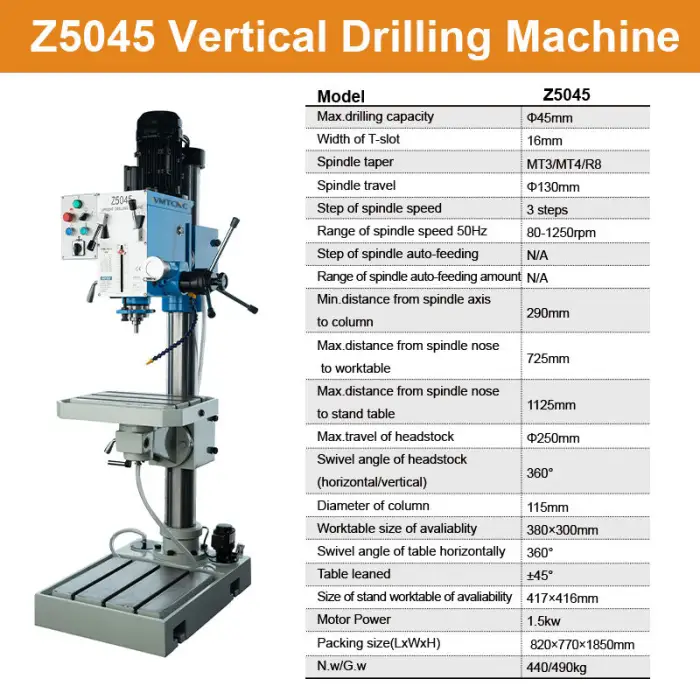

| Specification | Z5032 Z5040 Z5045 | Z5032/1 Z5040/1 Z5045/1 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm | |
| Spindle taper | MT3/MT4/R8 | |
| Spindle travel | Φ130mm | |
| Step of spindle speed | 6 steps | |
| Range of spindle speed 50Hz | 80-1250rpm | |
| 60Hz | 95-1500rpm | |
| Step of spindle auto-feeding | / | 6steps |
| Range of spindle auto-feeding amount | / | 0.06-0.30rpm |
| Min.distance from spindle axis to column | 290mm | |
| Max.distance from spindle nose to worktable | 700mm | 725mm |
| Max.distance from spindle nose to stand table | 1125mm | |
| Max.travel of headstock | Φ250mm | |
| Swivel angle of headstock(horizontal/vertical) | 360° | |
| Max.travel of worktable bracket | Φ600mm | |
| Worktable size of avaliablity | 730*210mm | 380*300mm |
| Swivel angle of table horizontally | 360° | |
| Table leaned | / | 45° |
| Size of stand worktable of avaliability | 417×416mm | |
| Motor Power | 0.75kw/1.1kw/1.5kw | 0.75kw/1.1kw/1.5kw |
| Speed of motor | 1400rpm | 1400rpm |
| N.W/G.W | 440/490kgs | 470/530kgs |
| Packing size | 1850×750×1000mm | 1850×950×1000mm |
| Loading amount/20" container | 18pcs | 12pcs |
