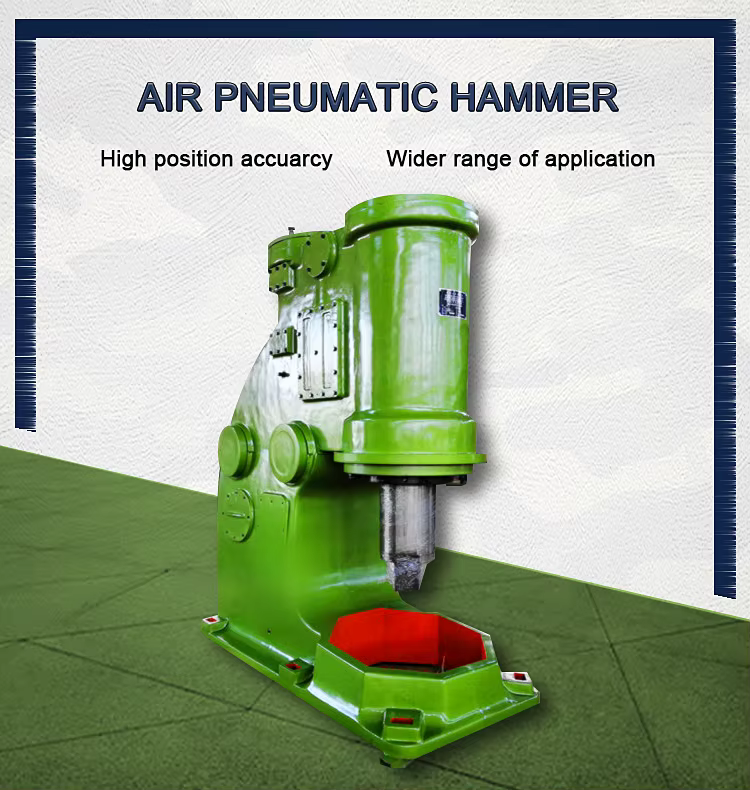

The Air Hammer C41-400B is a powerful and versatile machine widely used in various forging operations, including drawing-out, upsetting, punching, chiseling, and bending. It offers precise control over the hammer blows and is designed for both light and heavy-duty applications.
Applications:
Ease of Use:
Maintenance:
Design Options:
| Specification | Unit | Value |
|---|---|---|
| Model | C41-400B | |
| Rated Weight of the Tup | kg | 400 |
| Maximum Single Hit Energy | kg | 9.5 |
| Hit Number | min–1 | 120 |
| Tup Axis to Frame Front | mm | 520 |
| Forge Square Work Area | mm | 220 x 220 |
| Forge Round Work Area | mm | 240 |
| Motor Type | Y200L-4 | |
| Motor Power | kW | 30 |
| Weight of Hammer | kg | 8000 |
| Weight of Anvil Block | kg | 4800 |
| Outside Dimensions | mm | 2785 x 1100 x 2884 |
The C41-400B Air Hammer is a robust and efficient tool for various forging and shaping tasks. With adjustable blow types, a special lubrication system, and CE certification, it is designed for high efficiency and reliability in professional forging environments.
| Model | C41-400B |
|---|---|
| Rated Weight of the Tup | 400 kg |
| Maximum Single Hit Energy | 9.5 kg |
| Hit Number | 120 min–1 |
| Tup Axis to Frame Front | 520 mm |
| Forge Square Work Area | 220 x 220 mm |
| Forge Round Work Area | 240 mm |
| Motor Type | Y200L-4 |
| Motor Power | 30 kW |
| Weight of Hammer | 8000 kg |
| Weight of Anvil Block | 4800 kg |
| Outside Dimensions | 2785 x 1100 x 2884 mm |
| Forging Works | Suitable for drawing-out, upsetting, punching, chiseling, forge welding, bending, and twisting. |
| Bolster Dies | Can also be used for forging in bolster dies. |
| Ready Operation | Designed for economic and convenient operation. |
| Adjustable Blows | Offers single blow, light, or full series blows, easily adjustable as required. |
| Lubrication System | Equipped with a special oil-pump to lubricate cylinders effectively. |
| Pre-operation | Hand-crank the pump to lubricate the cylinders before operation. |
The C41-400B Air Hammer is suitable for various forging operations including drawing-out, upsetting, punching, chiseling, forge welding, bending, and twisting.
The maximum single hit energy of the C41-400B is 9.5 kg.
The adjustable blows feature allows you to select between single blow, light blows, or full series blows, making it easy to customize the hammering intensity for your specific application.
The C41-400B is equipped with a Y200L-4 motor with a power rating of 30 kW.
Yes, the C41-400B features a special lubrication system with an oil-pump that effectively lubricates the cylinders, and it is recommended to hand-crank the pump before operation for optimal performance.
The outside dimensions of the C41-400B are 2785 mm x 1100 mm x 2884 mm.
Yes, the C41-400B is designed for both light and heavy-duty applications, making it versatile for various forging tasks.
The weight of the C41-400B Air Hammer is 8000 kg.
The weight of the anvil block is 4800 kg.
The C41-400B Air Hammer is CE certified, ensuring it meets European safety and performance standards.
Yes, the C41-400B can also be used for forging in bolster dies.
The forge square work area of the C41-400B is 220 mm x 220 mm.
The forge round work area of the C41-400B is 240 mm.
Yes, the C41-400B is available in one-piece or two-piece designs to suit different user needs.
The C41-400B can achieve a hit number of up to 120 hits per minute.
