Two-In-One Winding Coiling Metal Embossing Machine
The Embossing Machine is designed for creating various patterns on aluminum plates, including custom designs, for a variety of industrial applications. Below are the key details and specifications:
Select a product option to continue.
Asset Finance Available
Check Funding Options
Explore funding with Afrimart's partners. Subject to provider approval.
Product Description
Embossing Machine
The Embossing Machine is designed for creating various patterns on aluminum plates, including custom designs, for a variety of industrial applications. Below are the key details and specifications:
Key Features:

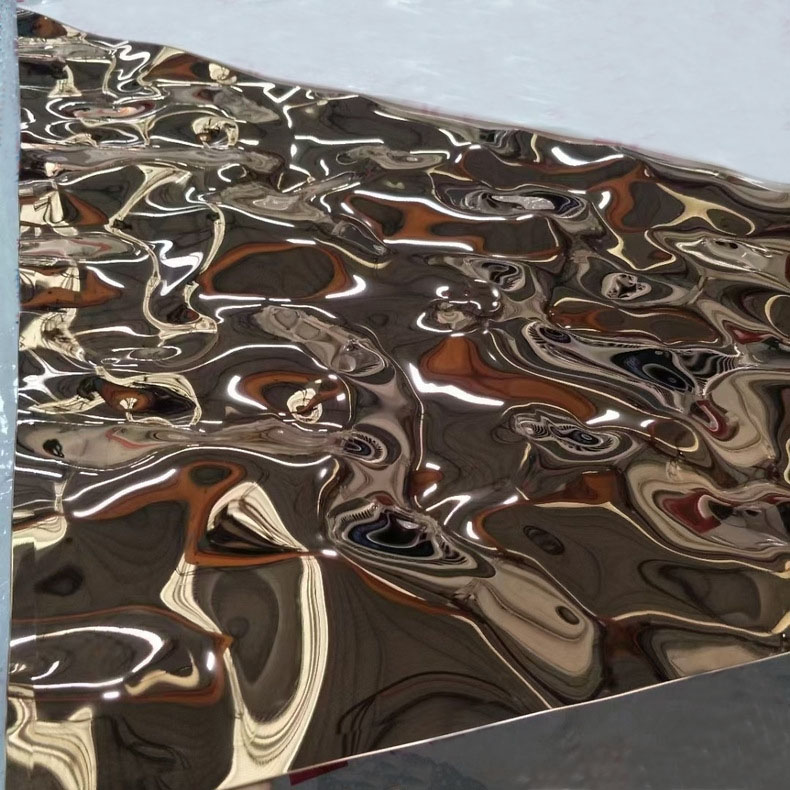

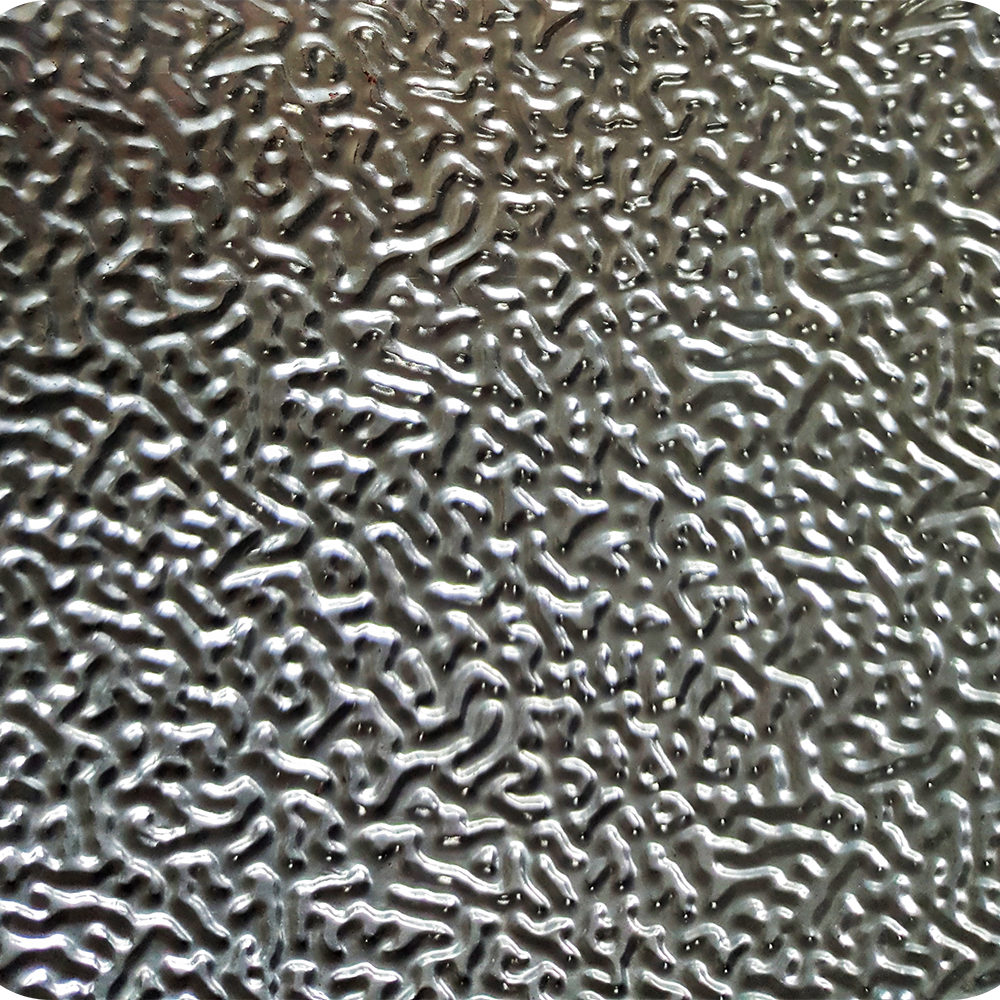

- Pattern Options: Includes convex hull, corn grain, pearl pattern, ball pattern, and custom patterns upon request.
- Pressure Adjustment: Hydraulic unilateral adjustment with a 50T capacity for consistent pressure.
- Transmission Mode: Gear transmission for smooth and reliable operation.

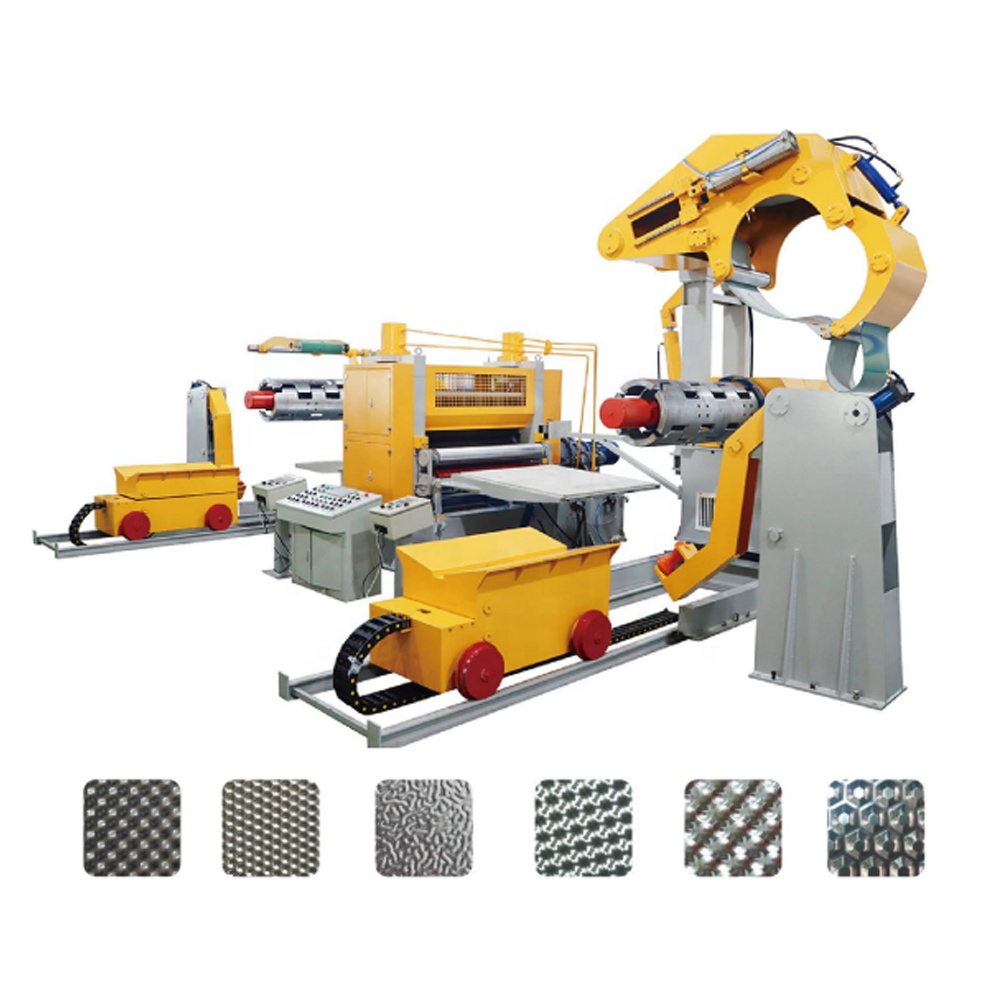

- Comprehensive Equipment: Includes embossing machine, uncoiler with hydraulic trolley, winder with hydraulic trolley, hydraulic station, and control cabinet for a complete system.
Specifications:
| Specification | Unit | Value |
|---|---|---|
| Embossing Roller Size | mm | Φ510mm (Diameter), 1400mm (Width) |
| Embossing Roller Pattern | Convex Hull, Corn Grain, Pearl, Ball (Customizable) | |
| Aluminum Plate Size | Thickness: 0.25-0.5mm; Max. Width: 1250mm | |
| Embossing Roller Material | 9Cr2Mo (High-strength Steel) | |
| Embossing Mode | Upper and Lower Concave-Convex Rollers, Opposing Pressure | |
| Pressure Adjustment | Hydraulic Unilateral 50T | |
| Transmission Mode | Gear Transmission | |
| Voltage and Power | 380V/50HZ, 3P; 15KW (Wire Speed: 1-60m/min) | |
| Equipment Composition | 1 Embossing Machine, 1 Uncoiler with Hydraulic Trolley, 1 Winder with Hydraulic Trolley, 1 Hydraulic Station, 1 Control Cabinet |
The Embossing Machine is highly versatile, allowing for a range of custom patterns and providing efficient processing of aluminum plates. It is equipped with hydraulic pressure adjustment, gear transmission, and robust materials for reliable and consistent performance. The system includes essential components such as an uncoiler, winder, hydraulic station, and control cabinet for complete operational control. Ideal for industries requiring high-quality embossing with adjustable speed and pressure.
Frequently Asked Questions
What types of patterns can be created with the Two-In-One Winding Coiling Metal Embossing Machine?
The machine can create various patterns including convex hull, corn grain, pearl pattern, ball pattern, and custom patterns upon request.
What is the maximum thickness of aluminum plates that can be processed?
The machine can process aluminum plates with a thickness ranging from 0.25mm to 0.5mm.
What is the maximum width of aluminum plates compatible with this machine?
The maximum width of aluminum plates that can be used with the machine is 1250mm.
What is the capacity of the hydraulic pressure adjustment?
The hydraulic pressure adjustment has a capacity of 50 tons, allowing for consistent and reliable pressure application.
What type of transmission mode does the machine use?
The machine uses gear transmission for smooth and reliable operation.
What are the key components included with the embossing machine?
The system includes an embossing machine, uncoiler with hydraulic trolley, winder with hydraulic trolley, hydraulic station, and control cabinet.
What is the motor power and voltage requirement for the machine?
The machine requires a voltage of 380V/50HZ and has a power rating of 15KW.
What is the size of the embossing roller?
The embossing roller has a diameter of 510mm and a width of 1400mm.
Can the machine accommodate custom patterns?
Yes, the machine can create custom patterns upon request, providing versatility in design.
What material is the embossing roller made from?
The embossing roller is made from high-strength steel, specifically 9Cr2Mo material.
How does the hydraulic adjustment work?
The hydraulic unilateral adjustment allows the operator to easily set and control the pressure applied during the embossing process.
What industries can benefit from using this embossing machine?
This embossing machine is ideal for various industrial applications that require high-quality embossing on aluminum plates.
What is the operational speed range of the machine?
The wire speed of the machine can be adjusted between 1 to 60 meters per minute.
Is training provided for operating the embossing machine?
Typically, training is provided by the manufacturer or supplier to ensure safe and efficient operation of the machine.
What safety features are included with the embossing machine?
The machine includes safety features aligned with industry standards, but specific details should be verified with the manufacturer.
Technical Specifications
No approved technical specifications are available yet. Please refer to the product description or contact our team.
