Tissue Paper Production Line Toilet Paper Making Machine
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
Tissue Paper Production Line Toilet Paper Making Machine
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special- made according to clients' requirements.
Specification:
| Model | 1092B | 1575B | 1760B | 2150B | 2200B | 2500B | 2800B |
| Jumbo Roll Max. width | 1350mm | 1750mm | 1880mm | 2000mm | 2150mm | 2400mm | 2750mm |
Max. Jumbo Roll diameter
| 2-3 stands (pls specify when order) Paper gram weight 13-16 g/m2 | ||||||
Jumbo Roll Standings
| Standardφ3"(76.2mm) (Other sizes specified)
| ||||||
Data setting
| HMI | ||||||
Programming controller
| PLC, touch screen
| ||||||
Operate Speed
| 0-230m/min 15000-25000 rolls/8hours | ||||||
| Finished Log Outer dia. | φ90-140mm | ||||||
| Finished Log Inner dia. | φ38-76mm | ||||||
| Perforation Distance | 100-150mm | ||||||
Mechanical driving
| Driving by Stepless gear box
| ||||||
Air -system
| 3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
| ||||||
Main driving
| Frequency conversion speed regulation 7.5-15KW 380V,50HZ
| ||||||
Embossing unit
| Steel to rubber
| ||||||
| Dimensions | 6x3x1.7 (length x width x height);(m)
| ||||||
| Weight | 3T-4T(depends on the Model you have )
| ||||||
| Options: | |||||||
| Embossment Roller | Plane, Single Set, Double Sets Can be ordered | ||||||
Color Printing Unit
| 1-2 Colors can be order
| ||||||
Lamination Unit
| Can be Ordered
| ||||||
Edge-Embossing Line
| Steel to Steel Operate by Pneumatic
|

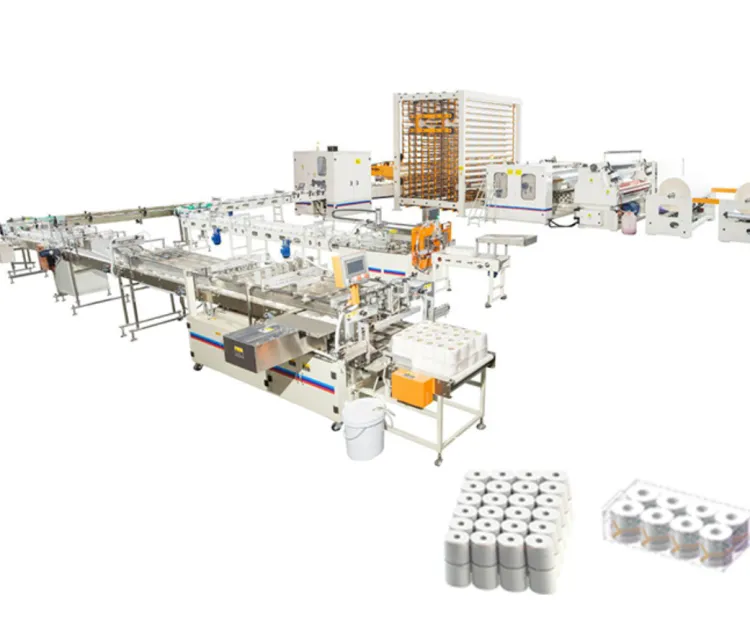

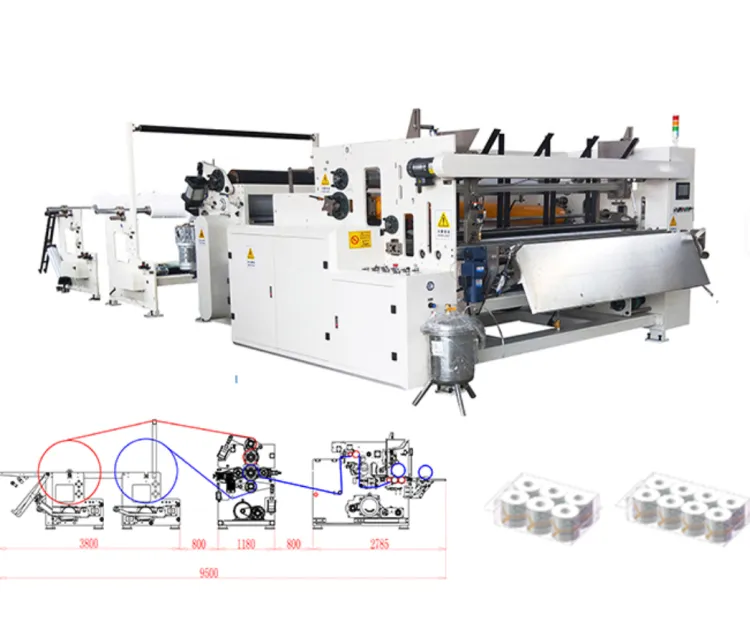

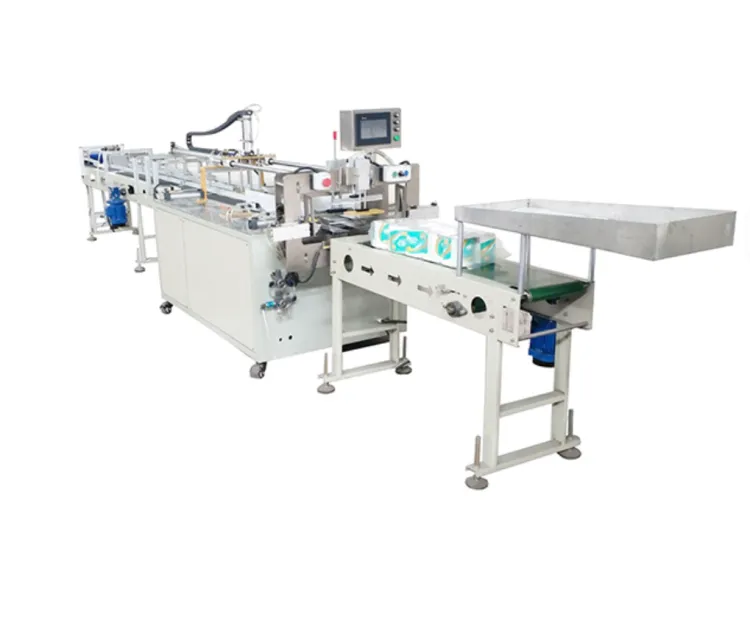

Machine Detail Pictures:
Deco Color Lamination Parts:
Finished Products:
Specification details are not available in this product description. Contact our team for more information.
The maximum width of the jumbo roll that our Tissue Paper Production Line can handle varies by model, with options ranging from 1350mm to 2750mm.
The machine can operate at speeds of 0-230 meters per minute, producing between 15,000 and 25,000 rolls in an 8-hour shift.
Yes, the machine is controlled by a PLC and operated through a touch screen, making it easy to use and reducing the need for extensive manual labor.
The machine offers various embossing options, including steel to rubber and steel to steel, with options for plane, single set, and double sets.
Yes, the machine has a core feeding unit that allows it to process toilet paper rolls both with and without a core.
The weight of the machine ranges from 3 tons to 4 tons, depending on the specific model.
The machine can process paper with a gram weight ranging from 13 to 16 g/m².
Yes, our Tissue Paper Production Line can be specially made according to clients' specific requirements.
The main driving power requirement is between 7.5 to 15KW, operating at 380V and 50Hz.
The air system requires a minimum pressure of 5 kg/cm², which must be provided by the user.
Yes, the machine can be equipped with a color printing unit that supports 1-2 colors, which can be ordered additionally.
The dimensions of the machine are approximately 6 meters in length, 3 meters in width, and 1.7 meters in height.
Yes, a lamination unit can be ordered as an optional feature for the machine.
The perforation unit allows for the creation of perforated sheets, with a perforation distance adjustable between 100mm to 150mm.
The machine is driven by a stepless gear box and features frequency conversion speed regulation for smooth operation.
