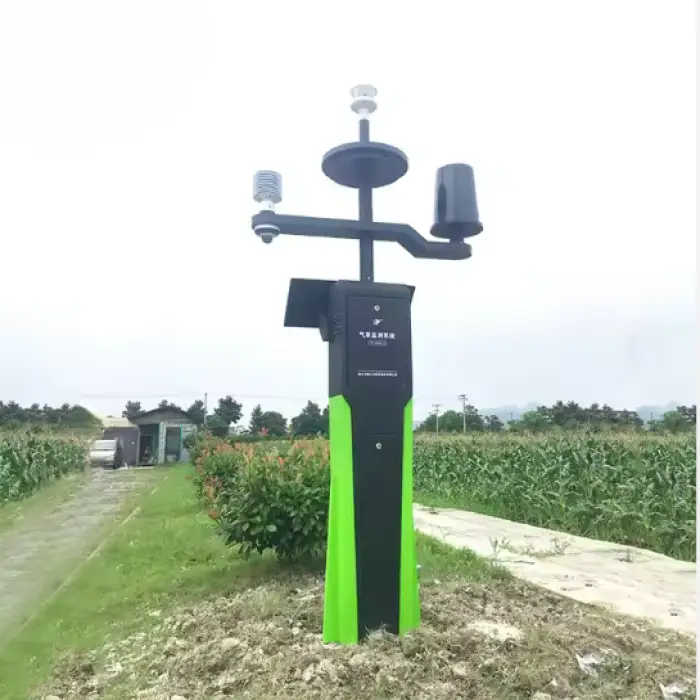

TP-WMS-1 Environmental Monitoring


The TP-WMS-1 is an unmanned meteorological multi-element automatic monitoring system developed based on Internet of Things technology and wireless communication technology. Composed of meteorological sensors, meteorological data collectors, management cloud platforms, and apps, it can monitor conventional meteorological elements such as air temperature, air humidity, soil moisture, soil temperature, wind speed, wind direction, rainfall, and light intensity. It has functions such as real-time collection, transmission and storage, over limit warning, and data analysis. Widely used in fields such as agricultural and forestry climate monitoring, ecological environment monitoring, pest and disease monitoring, as well as agricultural research and teaching.Functional FeaturesFunctional requirements:The meteorological monitoring system comes with a management cloud system and APP, which allows real-time data to be viewed online through web pages or mobile phones no matter where you are.Technical requirements:1. Working environment of the whole machine: Outdoor temperature: -40 to+50C; Relative humidity: 0-100% RH (non condensing);2. Communication: The device network supports 2/3/4G from China Unicom Mobile (the camera only supports 4G cards) and 4G from China Telecom;3. Location: The device has a GPS module with automatic location acquisition and altitude calculation functions;4. Long term endurance: The system power supply system is a combination of solar energy and rechargeable batteries. The sensor is equipped with a large capacity lithium battery, which can work independently for more than 15 days; External solar panels can achieve continuous operation; The dual power supply system ensures the normal power supply of the equipment.5. Protection level: IP656. Data collection frequency: Factory default collection once every 1 hour (users can set it as needed on mobile apps or web platforms in the future)7. The host can remotely set the data collection time, sending time interval, and network IP address through the cloud management system.8. Sensors can be configured arbitrarily on the management cloud platform, with a total of 50 channels and 16 types of sensors that can be connected. Sensors can be added through the mobile app settings.9. The sensor adopts a low-power design and is powered by a built-in disposable battery, which can work for more than 5 years. The sensor is wirelessly connected to the host;10. The system supports communication between 4G/RJ45 networks and servers, and data can be uploaded to cloud servers or to designated computers. It is switchable and provides dual protection.11. The system is compatible with RS485 and Lora sensor communication interfaces;12. Configure an ultrasonic wind speed and direction sensor, using RS485 interface and 12V power supply. It can work at zero wind speed without starting wind speed limit and has 360 ° all-round angle limitation. It can simultaneously obtain wind speed and direction values.13. The moisture sensor adopts a wired RS485+8V power interface

▲ 14. The air temperature and humidity sensor, light intensity sensor, and rainfall sensor all use Lora wireless communication interface, which is independent of the host communication and has a built-in lithium battery. The system automatically assigns device IDs and is easy to operate.▲ 15. The system adopts the FREERTOS operating system, which improves the reliability of system operation, real-time performance of multiple data acquisition tasks, modularity of the system, and efficient application of CPU; (Provide a testing report with CNAS logo issued by an institution with testing qualifications)▲ 16. The system has an altitude function, which automatically obtains altitude parameters and GPS coordinate information and displays them on the app or web platform. It can know the specific geographical location of the device and data collection point, and prevent theft and displacement;17. Equipped with a camera: 1920 × 10802 million pixels, focal length of 4mm, horizontal field of view angle of 89.1 °, supports timed photography function, can upload on-site images to the management cloud platform for easy observation of actual plant growth, and can also set photography intervals and times on the platform;18. Equipped with a smart cloud management system that includes a B/S architecture, it can summarize and analyze data from all portable and online devices, ensuring that data is never lost. The viewing and operation methods include both web and mobile devices.19. Display the trend of the process curve for each parameter, including the maximum, minimum, and average values, as well as zoom in and out functions.20. Data can be uploaded to the management cloud platform. Data within the platform can be downloaded, compared and analyzed, and printed.21. Users can set the minimum and maximum limit values for the device, and alert for limit alarms. The platform supports cloud storage of device data and provides sufficient capacity for permanent storage. The platform provides report forms such as curves and tables for device data, and the data can be exported in formats such as Excel.22. Data evaluation: The minimum and maximum limit values can be set, and automatic data warning analysis can be performed.23. The device software, web platform, and APP can all support online upgrades.
