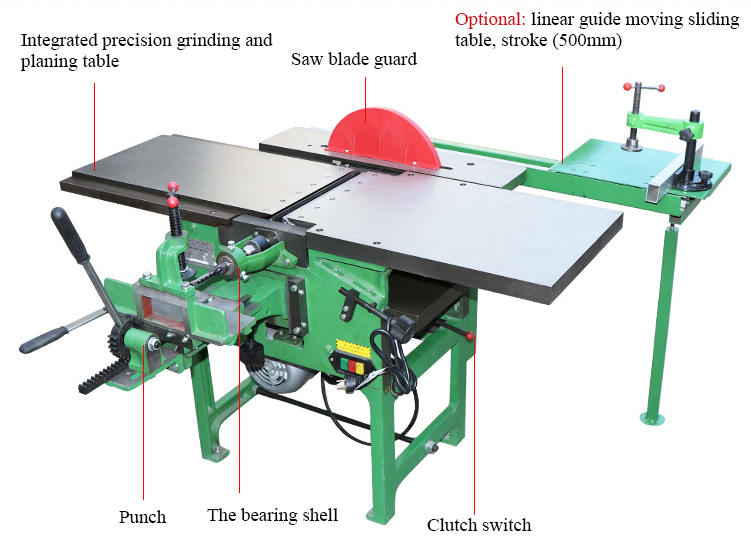

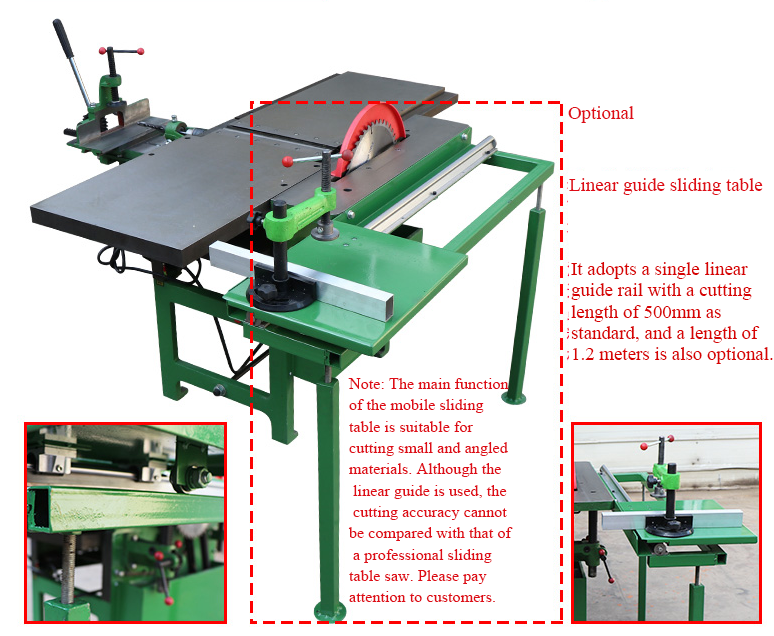

SINO STAHLMLQ342A Woodworking Multi-Purpose Machine Tool Thicknesser Surface Planer

SKU: 1600248898385
Category: Woodworking Machinery

Price per item

R43,799.00

Quantity

Contact Support

Section:: Machinery
Category:: Woodworking Machinery
SKU:: 1600248898385

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Plan your purchase

Delivery & Shipping

Estimated delivery

10 Jan, 2027

Delivery timing is confirmed with your order.

View Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

Model		MLQ342	MLQ343
Spindle speed	r /min	3560	3100
Max.planing width	mm	250	300
Max.planing depth	mm	3	3
Max.sawing thickness	mm	100	80
Max.planing thickness	mm	110	110
Mortising range	mm	10-16	10-16
Max.mortising depth	mm	120	120
Planing blade	mm	*260325*	*310325*
Circular sawblade	mm	*3001.425-N*	*3001.425*
Emery wheel for blade	mm	*B503213*	*B503213*
Emery wheel for blade	mm	*PD11251018**	*PD111251025**
V-belt		A-1000	A-1000
Motor powre	kw/v	2.2/220	2.2/220
Overall dimensions	mm	*10101000810*	*12101050810*
Net,weight	kg	170	190

Frequently Asked Questions

What is the maximum planing width of the SINO STAHLMLQ342A?

The maximum planing width of the SINO STAHLMLQ342A is 250 mm.

How deep can I plane with this machine?

The maximum planing depth of the SINO STAHLMLQ342A is 33 mm.

What is the spindle speed of the SINO STAHLMLQ342A?

The spindle speed of the SINO STAHLMLQ342A is 3560 r/min.

What is the maximum sawing thickness this machine can handle?

The maximum sawing thickness of the SINO STAHLMLQ342A is 100 mm.

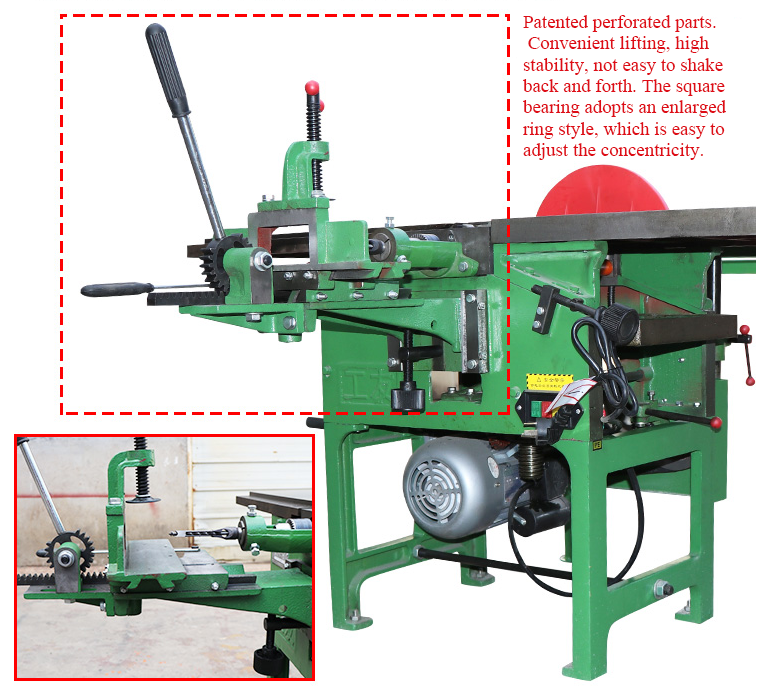

Can the SINO STAHLMLQ342A perform mortising operations?

Yes, the SINO STAHLMLQ342A has a mortising range of 10-16 mm and a maximum mortising depth of 120 mm.

What are the dimensions of the SINO STAHLMLQ342A?

The overall dimensions of the SINO STAHLMLQ342A are 1010 mm x 1000 mm x 810 mm.

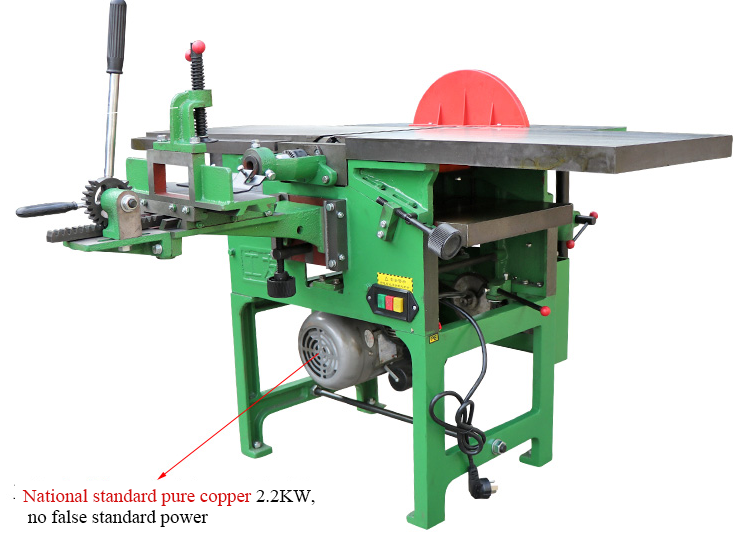

What is the motor power of the SINO STAHLMLQ342A?

The motor power of the SINO STAHLMLQ342A is 2.2 kW.

What is the net weight of the SINO STAHLMLQ342A?

The net weight of the SINO STAHLMLQ342A is 170 kg.

What size are the planing blades for the SINO STAHLMLQ342A?

The planing blade size for the SINO STAHLMLQ342A is 260 mm x 3 mm x 25 mm.

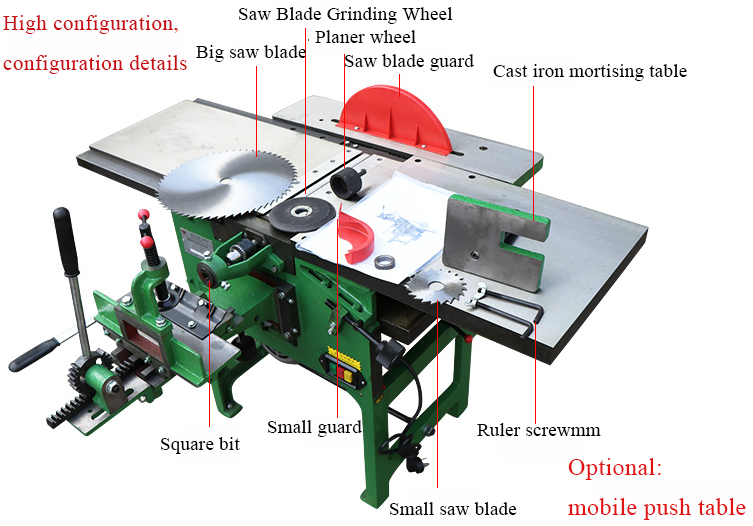

Does the SINO STAHLMLQ342A include a circular saw blade?

Yes, the SINO STAHLMLQ342A includes a circular saw blade of size 300 mm x 1.4 mm x 25 mm.

What type of V-belt does the SINO STAHLMLQ342A use?

The SINO STAHLMLQ342A uses an A-1000 V-belt.

Is there a warranty for the SINO STAHLMLQ342A?

Please refer to the manufacturer's warranty policy for details on warranty coverage for the SINO STAHLMLQ342A.

Can I use this machine for both thicknessing and surfacing wood?

Yes, the SINO STAHLMLQ342A is designed as a multi-purpose machine, allowing for both thicknessing and surfacing wood.

How can I maintain the SINO STAHLMLQ342A?

Regular maintenance includes cleaning the machine after use, checking and replacing blades as needed, and ensuring proper lubrication of moving parts.

Where can I buy replacement parts for the SINO STAHLMLQ342A?

Replacement parts for the SINO STAHLMLQ342A can be purchased through authorized dealers or directly from the manufacturer.
