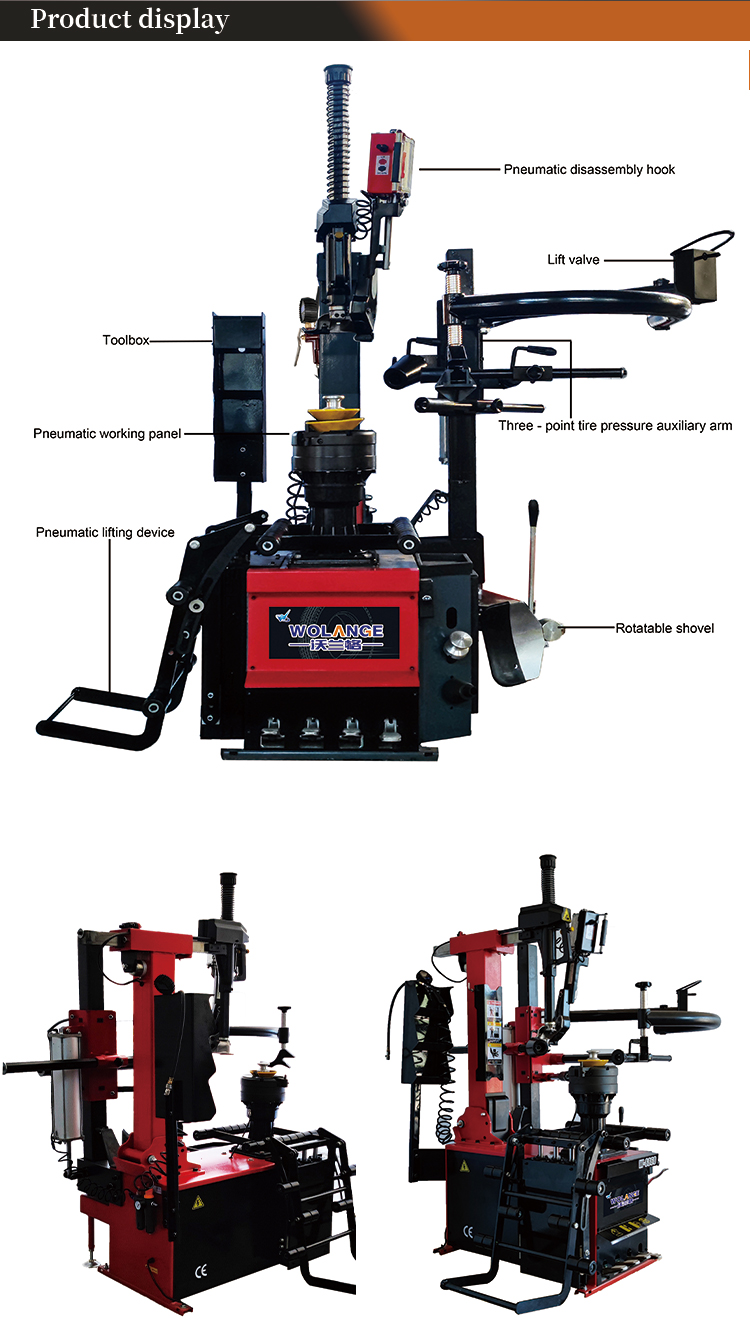

Tire Changer Machine W-8860

The W-8860 is a heavy-duty, fully automatic tire changer designed primarily for car tire repairing in automotive shops and service centers.

The machine is offered with a 0.75 kW or 1.1 kW motor and supports 110V, 220V, 240V, or 380V at 50Hz/60Hz (select the voltage that matches your workshop).

The recommended operating pressure is 8–10 bar. Ensure your air compressor can reliably deliver this pressure and sufficient airflow for continuous use.

Outside clamping: 10"–26". Inside clamping: 13"–26". Maximum wheel diameter is 1100 mm and maximum rim width is 3"–12".

The W-8860 has a bead breaking force of 3000 kg, suitable for stubborn beads and heavy-duty tire service.

The W-8860 is CE approved and the manufacturer holds ISO 9001 certification, indicating compliance with relevant quality and safety standards.

Net weight is 400 kg. Packing dimensions are 1165 × 1115 × 1750 mm, with a packing volume of approximately 2.3 m³. It is shipped in a plywood box.

The working noise is under 70 dB.

The machine comes with an 18-month warranty. For spare parts, service or installation support, contact the supplier or manufacturer directly.

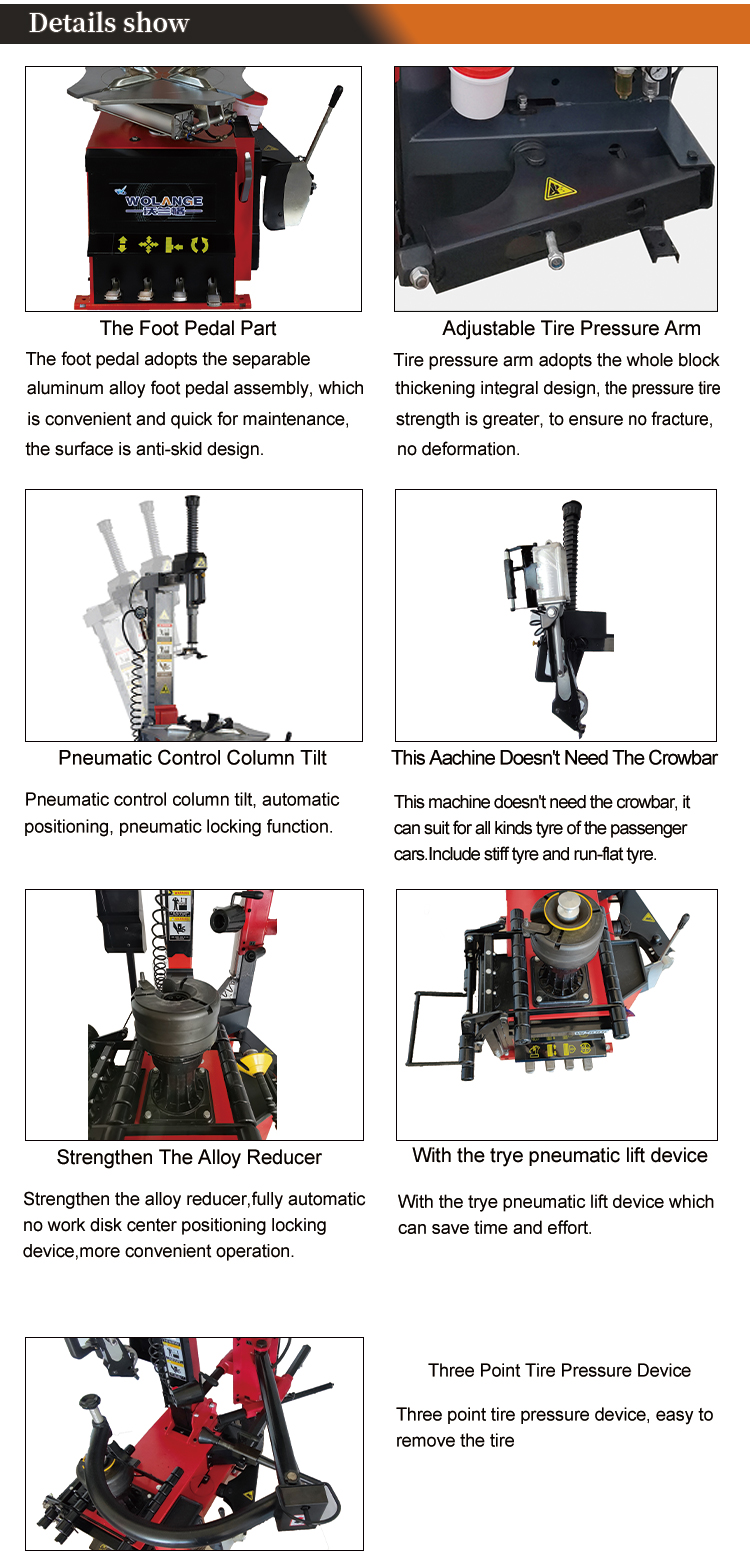

This indicates a fully automatic design that does not rely on a traditional turntable or manual crowbar for demounting. Instead it uses built-in clamping and automated demounting mechanisms to speed up the process and reduce manual effort.

Yes — the machine is suitable for many run-flat and low-profile passenger tires. Extra care, correct settings, and protective accessories (rim protectors, appropriate mounting heads) are recommended for delicate alloy or specialty rims.

The W-8860 is optimized for car wheels within the specified diameter and width ranges. It is generally not intended for large commercial truck tires or very small motorcycle wheels outside those ranges.

Provide a level, solid floor able to support the 400 kg machine. Arrange for appropriate electrical supply matching your voltage choice and proper grounding. A forklift or lift is recommended for unpacking and positioning. Follow the operator manual for final commissioning.

Perform regular checks and maintenance: keep moving parts lubricated, inspect air lines and fittings, clean bead breaker and clamping areas, check for loose bolts or wear, and replace worn consumables as needed. Follow the manufacturer's maintenance schedule in the manual.

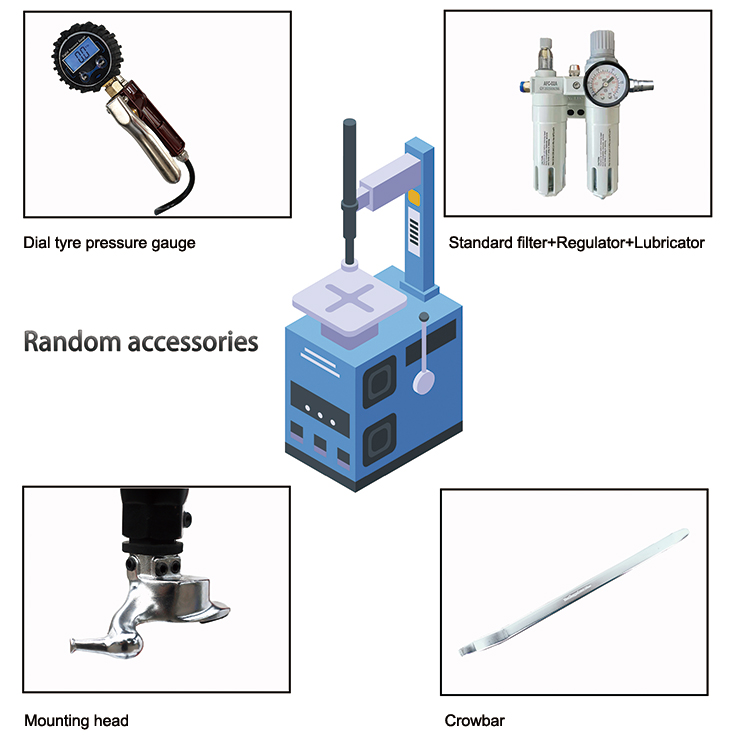

Common accessories (rim protectors, mounting heads, adapters) and spare parts are typically available — check with your supplier for included items and optional accessories, and confirm availability of replacement parts before purchase.
