Shock Wave Therapy Device (Model: SW-200)

Shock Wave Therapy Device (Model: SW-200)

The SW-200 Shock Wave Therapy Device by Rhein is a professional-grade medical tool designed to reduce pain and promote healing in clinical settings. This device utilizes advanced shock wave technology to provide effective pain management and is ideal for use in clinics, offering both powerful performance and ease of use.

Key Features:

• Function: Designed to reduce pain through shock wave therapy, promoting healing and recovery.
• Power: 350W for high performance and effectiveness in therapy sessions.
• Frequency: Adjustable frequency range from 1 to 16 Hz, allowing customization based on treatment needs.
• Energy: Shock wave energy settings from 60-210mJ (1-6 BAR), providing adjustable intensity for various pain management treatments.
• Application: Ideal for use in clinics, particularly for medical care related to pain relief and rehabilitation.
• Voltage: AC110V/220V 50-60Hz, suitable for international use.
• Dimension: Compact design with dimensions of 320 x 133 x 244 mm for easy handling and storage.

Specifications:

• Product Name: Shock Wave Therapy Device.
• Model Number: SW-200.
• Instrument Classification: Class I.
• Function: Pain reduction.
• Application: Clinic use.
• Usage: Medical care.
• Power: 350W.
• Voltage: AC110V/220V 50-60Hz.
• Frequency: 1-16 Hz.
• Energy: 60-210mJ (1-6 BAR).
• Dimension: 320 x 133 x 244 mm.
• Keywords: Clinic Supplies, Shock Wave

The SW-200 Shock Wave Therapy Device is an essential tool for clinics, offering effective and customizable pain relief treatments with its advanced shock wave technology. Reliable, easy to use, and backed by excellent after-sales service, this device is an invaluable asset in any clinical environment.

Main unit:

Simple and stylish appearance Advanced, with a sense of design, making users feel very professional

Handle: Made of aviation aluminum precision

With intelligent heat dissipation device, it can be used continuously to save energy and electricity, with fast heat dissipation and long service life. The surface is smooth and exquisite, and the grip and use feel are very good

Touch screen： The whole operation is completed on the display screen, and the treatment site can be selected, and the corresponding frequency and energy parameters have been set for each treatment site.


Foot switch： The foot switch is used by the customer's foot. During the treatment, if the customer has any discomfort, he can press down on the foot switch and the handle will stop working.


Principle of Treatment

SWAVE-200 Extracorporal shock wave therapy medical equipment/pain relief machine/pain treat shockwave

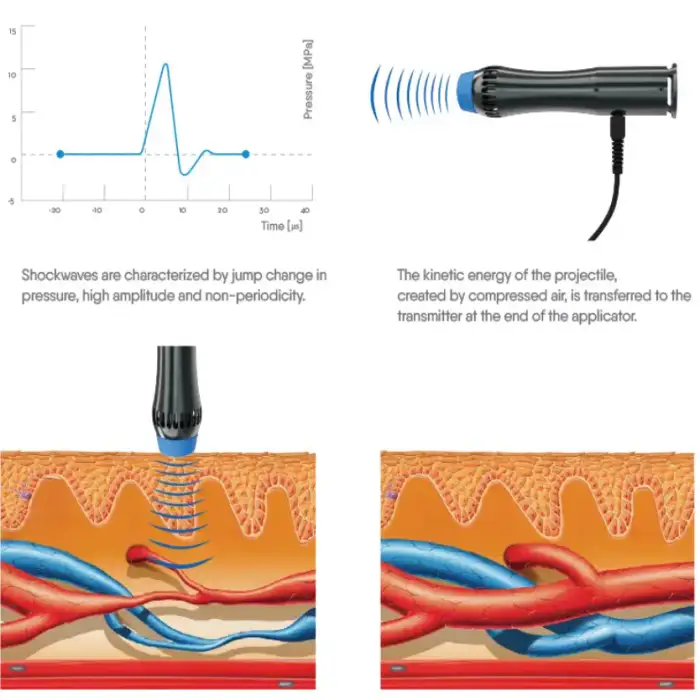

A shockwave is defined as a wave with a rapid increase of pressure within a very short time and then having a gradual decrease of pressure with a small negative pressure phase. Shockwave is aimed at the affected areas that are the source of chronic pain. The influence of the shockwaves causes to thedissolution of calcium deposits and leads to better vascularization. The after-effect is relief from the pain

In addition, shock waves cause the production of endofibrin , Reduce the sensitivity of the affected area to pain, the above several mechanisms are aimed at the synthetic effect of the injury, and can achieve long-term effective treatment for the patient's pain. By improving the metabolism of the treated area and reducing the inflammatory response in the affected area, shock wave therapy also promotes the recovery of the tissue. Its mechanisms include relaxing the calcium deposit in the affected area,reducing edema and increasing the mechanical load of the tissue.


SW-200 Extracorporal shock wave therapy medical equipment/pain relief machine/pain treat shockwave Frequency range from 1Hz to 16Hz, you could Choose the frequency according to your pain level
