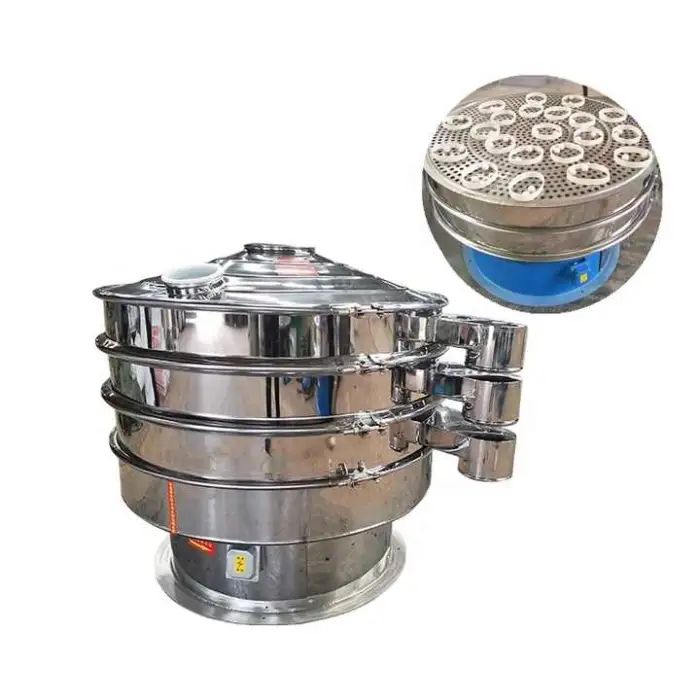

Pineapple Juice Vibrating Screen

It's designed to separate and filter pineapple juice and other food products (e.g., glutinous rice flour), removing solids and impurities through circular vibration screening to improve product quality and consistency.

The machine uses an eccentric vibrator and circular motion to evenly distribute material across the screen mesh. This motion promotes efficient screening, prevents clogging, and enhances throughput and screening accuracy.

Screen mesh options range from 2 to 325 mesh, allowing customization to meet different filtering fineness requirements. Choose mesh size based on particle size and desired filtration level.

Overall dimensions are approximately 850 × 650 × 650 mm. The listed net weight is about 110 kg. Packaged weight and shipping weight may vary—confirm final shipping weight with the supplier.

The machine frame and contact parts are available in food-grade stainless steels (SUS304, SUS316L) and Q235 carbon steel, enabling hygienic operation and corrosion resistance for food processing.

The machine supports 1–3 layers, so you can select a single screen for coarse separation or multiple layers for staged, graded separation according to your process needs.

Maximum recommended feed particle/agg size is within 30 mm. The outlet (discharge) diameter is 150 mm, suitable for direct connection to downstream piping or conveyors.

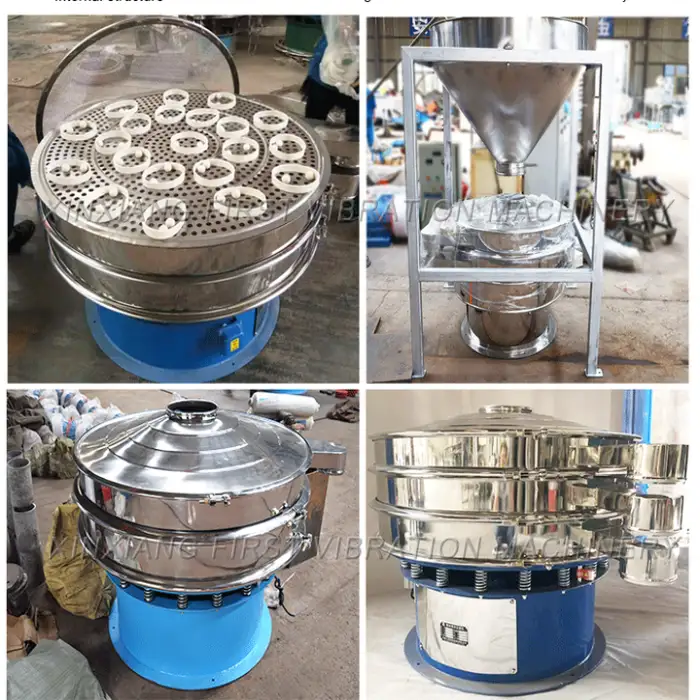

This model uses jumping balls (ball-cleaning) located under the screen to continuously strike the mesh during vibration, dislodging particles and preventing mesh blinding and clogging.

Yes — voltage and electrical configurations can be customized to meet regional power supply requirements. Contact the supplier with your local voltage/frequency for a matched motor and control setup.

Yes. The product listing indicates that an outgoing inspection and machinery test report are provided to verify performance and quality prior to shipment.

Yes, when specified with SUS304 or SUS316L contact parts, the unit is suitable for food processing. Choose stainless-steel finishes and hygienic options for easy cleaning and compliance with food safety requirements.

Installation typically requires a level, solid foundation or mounting frame. Use anti-vibration mounts or springs per supplier instructions, secure inlet/outlet connections, and ensure electrical wiring is completed by qualified personnel.

Regular checks include inspecting screen mesh for wear, tightening fasteners, checking motor and bearings, cleaning the screen and jumping balls, and replacing consumable parts as needed. Follow supplier maintenance schedule for best results.

Throughput depends on mesh size, product viscosity, feed rate and number of layers. Provide sample material to the supplier for trial screening or request test data; the supplier can estimate capacity for your specific application.

Common spare parts include replacement screen meshes (various mesh sizes), jumping balls, bearings, springs, and vibration motors. Contact the supplier for a parts list, recommended spares, and lead times.
