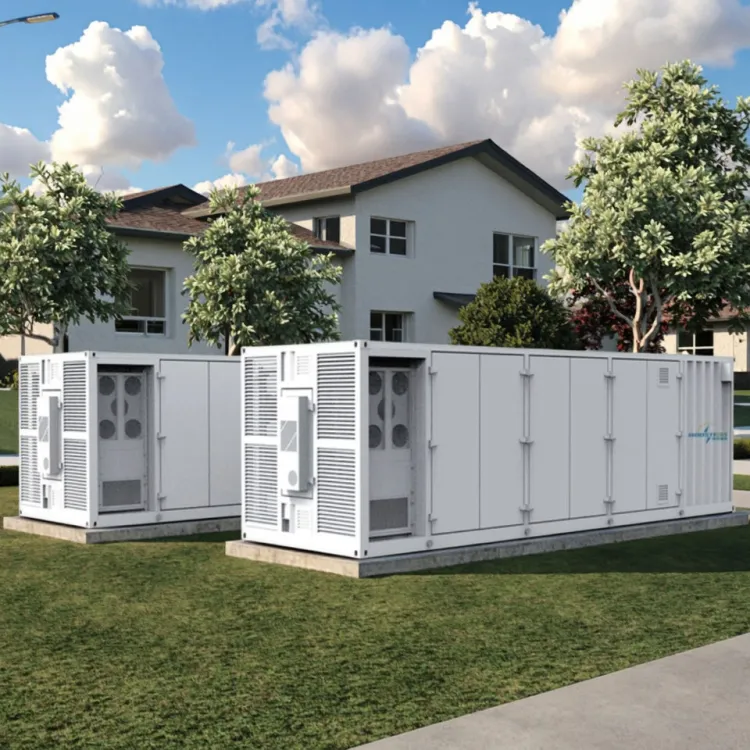

SCU 100kWh Solar Energy Storage System - BESS Peak Shaving for Villa Power Supply
Product Description:
The SCU 100kWh solar energy storage system is designed to optimize energy consumption in residential settings, particularly villas. This battery energy storage system (BESS) supports peak shaving, ensuring that electricity usage during peak hours is minimized, thus reducing electricity costs. With an impressive capacity and cutting-edge technology, this system is perfect for hybrid, on-grid, or off-grid configurations. It is ideal for households looking to store solar energy and use it efficiently throughout the day and night.
Key Features:
Battery Type: LiFePO4 (Lithium Iron Phosphate) for long-lasting performance and safety.
Battery Capacity: 150kWh for reliable and high-capacity storage.
PCS Power: 50~150kW, ensuring flexibility to meet different power requirements.
MPPT Power: 50~100kW, allowing the system to optimize solar energy conversion.
Grid Connection Type: Compatible with both on/off grid and hybrid systems for versatile use.
AC Voltage: AC380V/400V 3P4W, suitable for high-efficiency applications.
Frequency: 50/60Hz to accommodate various energy grid standards.
BMS: Active equalization BMS (Battery Management System), with 2-level management for optimal battery health and longevity.
Certifications: CE, EN50549, VDE, G99 for international safety and performance standards.
IP Rating: IP54, providing dust and water resistance for outdoor use.
Warranty: 3 years, ensuring long-term reliability and support.
Specifications:
Attribute
Specification
Model Number
GRES-150-100
Battery Type
LiFePO4
Battery Capacity
150kWh
PCS Power
50~150kW
MPPT Power
50~100kW
Grid Connection
On/off grid/Hybrid
AC Voltage
AC380V/400V 3P4W
Frequency
50/60Hz
BMS
Active Equalization BMS, 2-Level
Certifications
CE, EN50549, VDE, G99
IP Rating
IP54
Warranty
3 years
LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
GRES is an intelligent and modular power supply equipment integrating lithium battery and MPCS. According to different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be arbitrarily combined to realize grid connected power supply, off grid power supply and off grid uninterrupted power supply power supply, static reactive power compensation, harmonic suppression and other functions. The system can have access to new energy, power grid, diesel generator and to rreasonable configuration, scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.
LiFePO4 Battery Energy Storage System
Using Lithium-ion phosphate battery cell, long life cycle and high safety;
Each battery module is with 5.12kWh, the pack has a built-in BMU system, which can collect the voltage and temperature of each cell, and manage the cell balance, so as to ensure the normal operation of the whole pack safely and efficiently.
15 modules are connected in series to form one cluster, with control box and second level BMS(BCU);
Several clusters connected in parallel to be different capacity.
Multifunctional PCS
Bidirectional AC / DC converter can realize the bidirectional conversion from DC to AC and AC to DC. It can not only convert AC to DC to charge battery, but also convert DC to AC to supply power to load or feed back to power grid.
PV Control Module (MPPT)The function of DC / DC module is to filter the power from photovoltaic panel, increase its voltage for bidirectional DC / AC converter or store energy for lithium battery.Static Transfer SwitchSeamless on/off grid automatically switch.
HVAC
The battery compartment integrates 1200W industrial air conditioner to meet the stable operation of the system in different environments and prolong the service life of the system.
PMS(Power Management System)
System operation data monitoring, operation strategy management, historical data record, system status record, etc.
Specification
Parameter
GRES-75-50
GRES-150-100
GRES-225-150
GRES-300-200
PV parameters (Optional)
MPPT voltage range
DC200V～DC700V
Full power MPPT voltage range
DC370V～DC700V
MPPT channel Qty
1/2/3
Single-circuit MPPT maximum current(A)
135A
AC parameters (grid connected)
Rated output power (kW)
50
100
150
200
Max output power (kW)
55
110
165
220
Rated grid voltage (V)
3W+N+PE, 380
Grid voltage range
±15%
Rated grid frequency (Hz)
50
Grid frequency range (Hz)
±2
Current waveform distortion rate
<3%(Rated voltage)
DC component
<0.5%In
Power factor
>0.99(Rated voltage)
Power factor adjustable range
1(lead)～1(lag)
Overload capacity
110% Long term
AC parameters (off grid)
Rated output power (kW)
50
100
150
200
Max output power (kW)
55
110
165
220
Rated grid voltage (V)
3W+N+PE, 380
Current waveform distortion rate
<3%(Linear Load)
Rated frequency（Hz)
50
Overload capacity
110% Long term
Battery
Battery type
Lithium iron phosphate
Energy of each module(kWh)
5.12
Module qty
15
30
45
60
Total power (kWh)
76.8
153.6
230.4
307.2
Running Time (h)
1.5(Optional by Changing module qty)
Cyclelife
25℃0.5C/0.5C100%DODEOL80%≥4000s
System efficiency
Max efficiency
95%
Protection
DC Switch
YES
AC switch
YES
Grid monitoring
YES
Surge protection
DC /AC 2nd level
Basic Parameters
Dimension（W*D*H）(mm)
1680*1500*1700
1680*2270*1700
1680*3050*1700
1680*3830*1700
Weight (kg)
1395
2470
3545
4620
Isolated transformer
NO
On/off grid switching
STS
Protection
Outdoor IP54
Working temperature
-20～55℃(>45℃derating)
Relative humidity
0～95% ( (no condensing)
Cooling
Intelligent air cooling (intelligent heating optional )
Max working altitude(m)
4000(>2000 derating)
Display
Touch screen
Communication
RS485、CAN、LAN
Communication Protocol
Modbus-RTU、Modbus-TCP、CAN2.0B
Application
LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
Peak and frequency regulation, smoothing new energy generation;
Industrial and commercial demand management, peak shaving;
Power quality improving, and backpower supply at user side;Mobile energy storage, electric rescue;
Building microgrid system.
Successful Cases
LiFePO4 Battery 100kWh, 200kWh, 300kWh with AC Power Output GRES Integrated Battery Energy Storage System
Our GRES integrated BESS has been sold to Europe (Germany, Italy, Netherland, Poland, UK, Bulgaria, Czech, Spain etc), Asia (Thailand, Indonesia, Singapore etc), Africa (Ethiopia, South Africa, Zambia, Chad etc)
