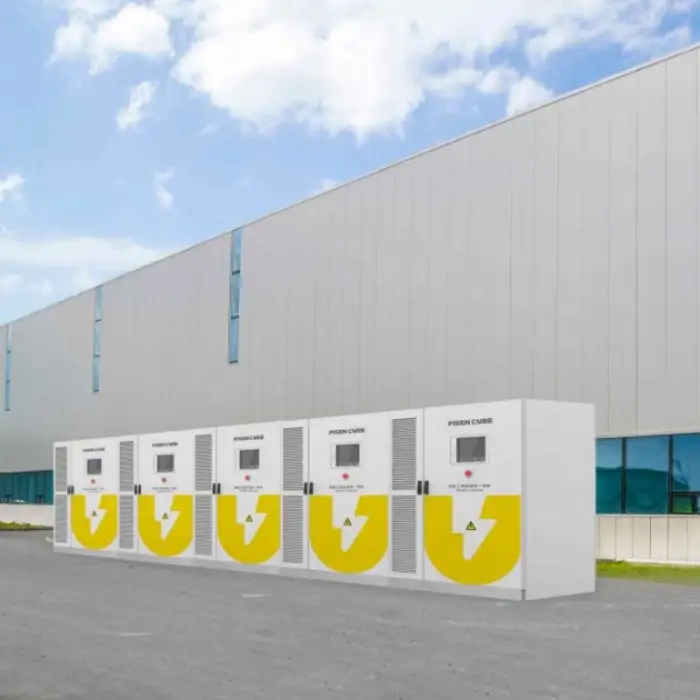

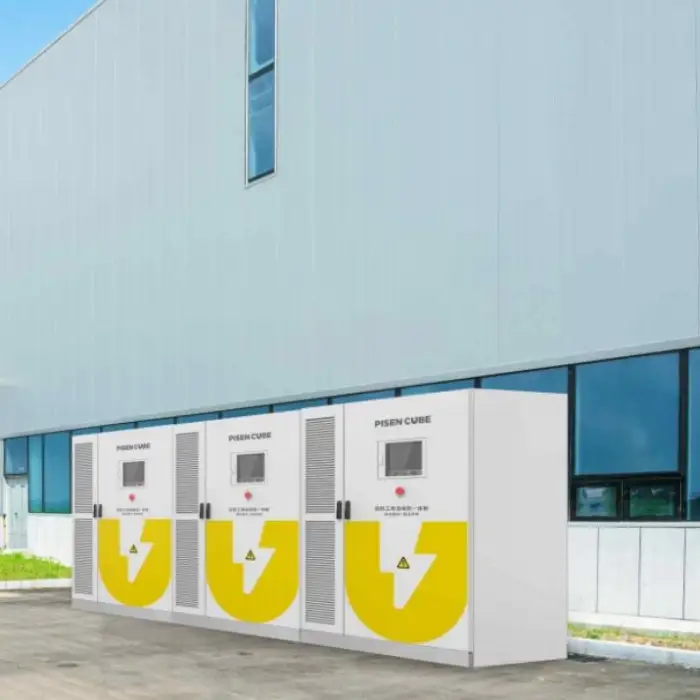

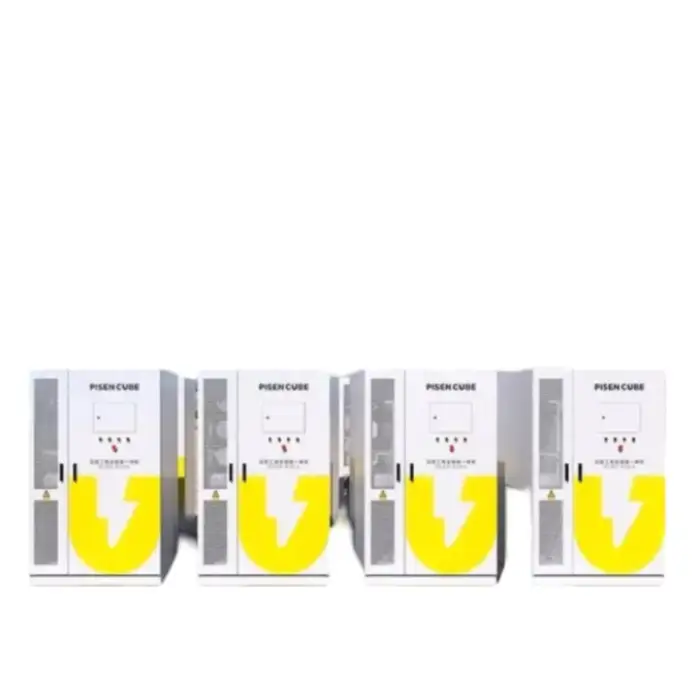

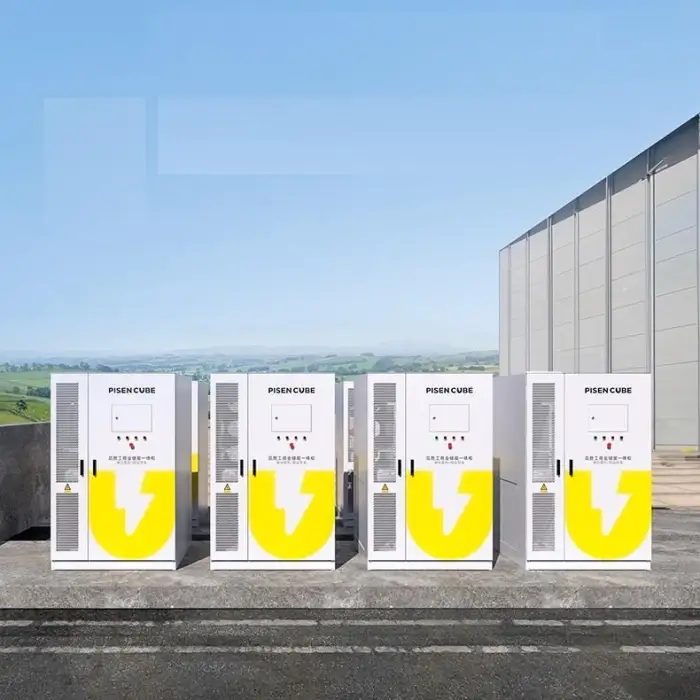

The PISEN CUBE TS-IN0004/100-232W is a high-performance energy storage solution designed for commercial use. Offering efficient energy management, long-lasting power, and easy installation, this system is ideal for businesses looking to optimize their energy usage and ensure reliable power supply. With its lithium-ion battery technology, ground mounting design, and a working time of up to 24 hours, the TS-IN0004/100-232W ensures that your commercial operations stay powered, day and night.
High Capacity: The TS-IN0004/100-232W offers a load power of 232KWh, providing ample energy storage for large-scale commercial applications. Whether for backup power or energy optimization, this system can handle high energy demands.
Lithium-Ion Battery: Equipped with advanced lithium-ion batteries, the system ensures long lifespan, fast charging, and minimal maintenance. These batteries are known for their stability and efficiency.
Output Voltage: The system delivers a reliable output voltage of 110KWh, making it compatible with a wide range of commercial devices and equipment.
Output Frequency: The PISEN CUBE supports both 50Hz and 60Hz output frequency, ensuring compatibility with different power standards for commercial applications worldwide.
24 Hours of Working Time: The system is designed to operate continuously for up to 24 hours, ensuring reliable power for extended periods and reducing downtime in case of power failure.
Free Installation Service: Enjoy the added benefit of free installation service, making the setup process quick and hassle-free for your business.
Ground Mounting: The TS-IN0004/100-232W is designed for ground mounting, offering flexibility in installation and making it suitable for various commercial locations.
Pre-sales Project Design: PISEN offers pre-sales project design services, helping you plan and optimize the installation for your specific energy needs.
Warranty: The system comes with a 5-year warranty, providing peace of mind and ensuring long-term support and reliability.
The PISEN CUBE TS-IN0004/100-232W Commercial Energy Storage System is the perfect solution for businesses looking for a powerful, efficient, and reliable energy storage system. With its high capacity, advanced lithium-ion battery technology, and 24-hour working time, it ensures your commercial operations remain powered at all times. Benefit from free installation and pre-sales project design with this outstanding energy storage solution.
Specifications
| Parameter Sheet | TS-IN0004/100-232W |
| DC battery parameter | |
| Cell type | LFP3.2V/280Ah |
| Battery pack configuration | 1P52S/46kWh |
| Battery system configuration | 1P260S |
| Battery voltage range | 728V-936V |
| Battery system capacity | 232kWh |
| Temperature detection | Battery core + copper bar |
| AC parameters (grid connection) | |
| Rated power | 100kW |
| Maximum output power | 110kW |
| Rated power grid voltage | 380V |
| Allowable grid voltage | -15%-10% |
| Rated grid frequency | 50Hz/60Hz |
| Allow power grid frequency fluctuation | ±5Hz |
| Power factor | -1 (lead) - 1 (lag) |
| AC harmonics (THDi) | <3% (rated output power) |
| Access mode | Three-phase three-wire/three-phase four-wire |
| Full-power charge-discharge conversion time | <25ms |
| System parameters | |
| Maximum efficiency of converter | 98.5% |
| System efficiency | >88% |
| Charge-discharge rate | ≤0.5C |
| Protection | |
| DC input | Load switch + fuse |
| Overvoltage protection | DC Type II/ACType II |
| Fire-fighting system | Perfluorohexanone |
| General parameters | |
| Dimensions (W x D x H) | 1300*1350*2200mm |
| Mode of incoming lines | AC incoming at bottom |
| Allowable ambient temperature | -30°C~+60°C(>50°C derating) |
| Allowable relative temperature | 0-100% |
| Maximum operating altitude | 4000m(>2000m derating) |
| Net Weight | 2500kg |
| Degree of protection | IP54 |
| Cooling mode | Water cooling |
| Communication | |
| Communication interface | RS485/Ethemet |
| Communication protocol | IEC61850/MODBUS-RTU/MODBUS-TCP |
