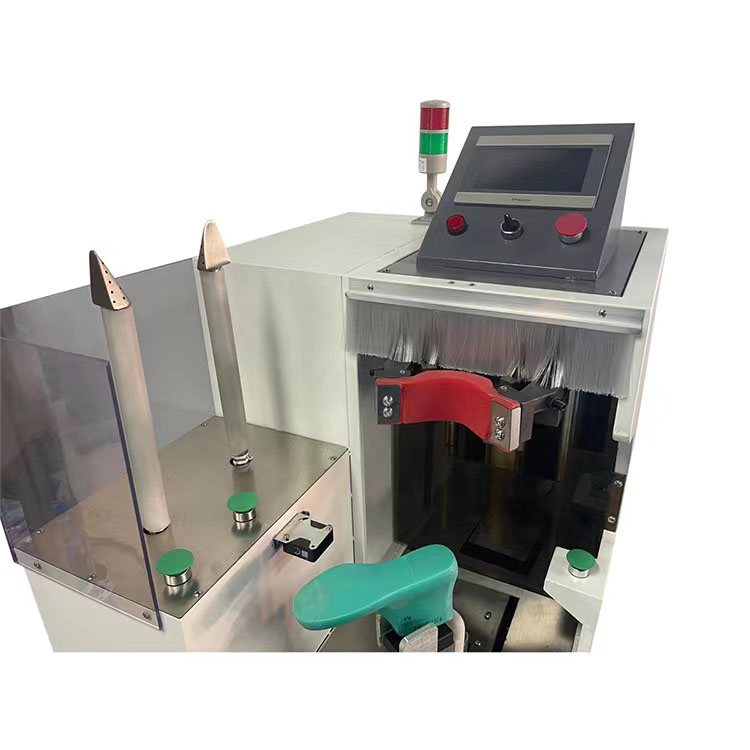

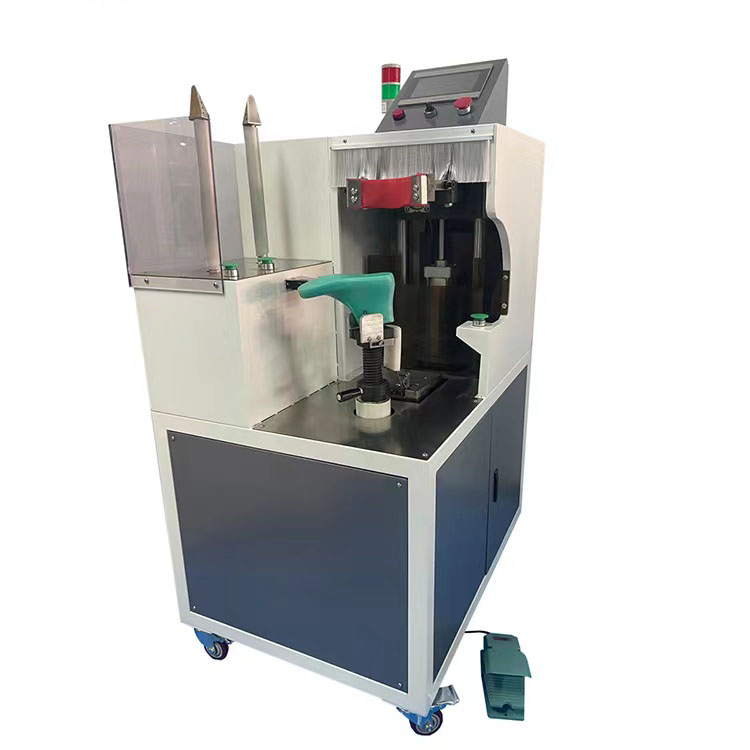

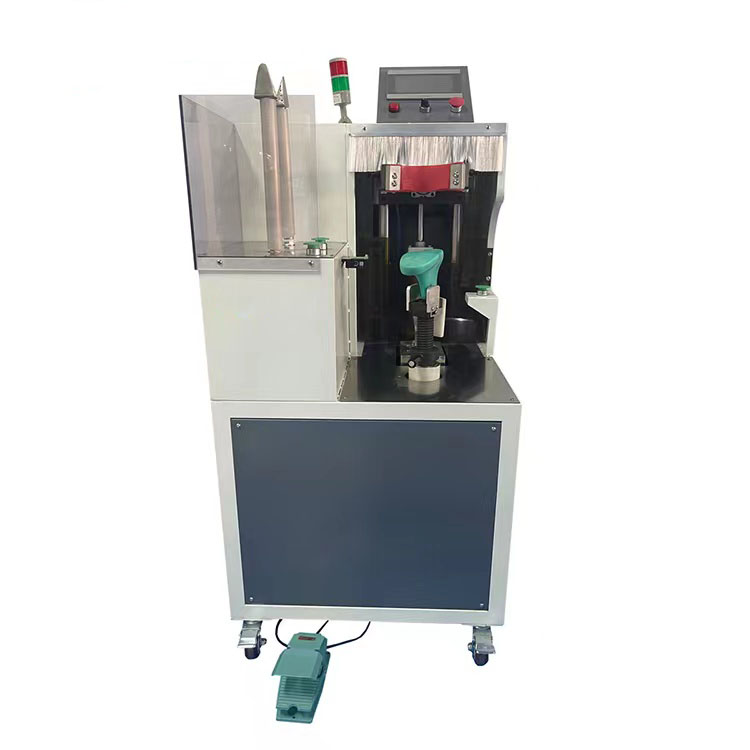

Pneumatic Automatic Footwear Vamp Upper Making Sports Shoe Last Inserting Machine

SKU: 1600714929700
Category: Vehicle Accessories, Electronics, & Tools

R101,133

Quantity

Contact Support

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options

Section:: Sports & Entertainment
Category:: Vehicle Accessories, Electronics, & Tools
SKU:: 1600714929700

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Delivery & Shipping

Estimated delivery

21 Dec, 2026

Delivery timing is confirmed with your order.

Learn more about our Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

Fully hydraulic operated system.

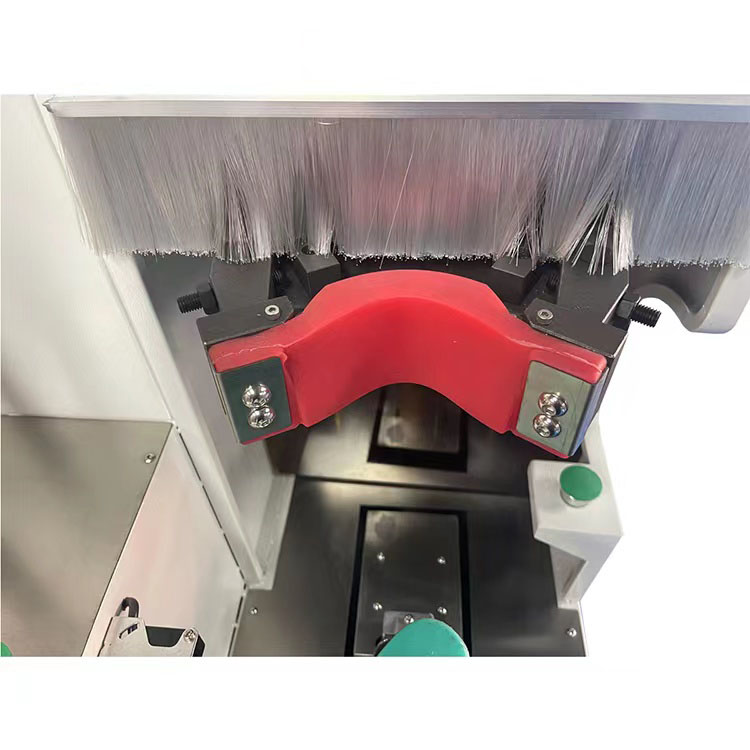

9 fine adjustable and quick-exchangeable pincers are mounted on a double tracking pincer plate .

The automatic turning inward of the last pincers left and right), increase the lasting perfection of inner part.

Each set of pincers (left and right) can be setting with automatic pulling or manual operated, preventing the upper made of different materials is only pulled on one side.

The upward stroke of the last support can be adjusted from the knob outside the machine.

There are two step upward movement functions for the last support, preventing the slipped of the last when combined with the movement of the heel support.

The toe pusher mechanism is designed with adjustable two step pressure. During the movement of the initial pressure, there are two ways (pressure controlled or position controlled) can be set for the best operation

The forward movement of the wiper can be adjusted as no stepped variable speed controlled.

The standard equipment: Auxiliary wiper mechanism, Auxiliary side pusher mechanism and Toe projector mechanism.

Specification

Technical data:

Model	CF-N737MA
Pincers	9
Pump Motor	1.5KW
Max. Power Consumption	3.7KW
Oil pressure	50kg/cm2
Productivity	180 pairs/hour
Oil filling	100 liters
N.W.	1100KGS
Dimension	1000(L), 1700(W), 1900(H) mm
Packing size	1830(L), 1000(W), 2230(H) mm

FAQ

Question 1: what is your minimum order quantity?
A: usually our minimum order is 1pcs.

Question 2: how to get the price list?
A: please feel free to contact us or send us a query through the online trade manager, and then
We can send you the price list and more information by email or whatsapp, we-chat

Question 3: how much is the freight?
A: the cost of transportation depends on the weight and package size as well as your region.

Q4: Can I get discount?

A: yes, contact us to get best price please.

Q5: Can I get video and more detailed picture?

A: yes, contact us to get it please.

Frequently Asked Questions

What is the Pneumatic Automatic Footwear Vamp Upper Making Sports Shoe Last Inserting Machine?

A fully hydraulic-operated lasting machine designed for inserting and finishing vamp/upper on sports shoe lasts. It features 9 fine adjustable, quick-exchangeable pincers on a double-tracking pincer plate, adjustable last support, two-step toe pressure and auxiliary wiper/side pusher/toe projector mechanisms.

What are the key technical specifications?

Model CF-N737MA; 9 pincers; pump motor 1.5 kW; max power consumption 3.7 kW; oil pressure 50 kg/cm²; productivity about 180 pairs/hour; hydraulic oil capacity 100 L; net weight 1100 kg; machine dimensions 1000×1700×1900 mm; packing size 1830×1000×2230 mm.

Is the machine pneumatic or hydraulic?

The machine is described as a fully hydraulic-operated system. The product name references pneumatic operations because some peripheral functions may use compressed air, but the core actuation is hydraulic. Exact utility requirements will be confirmed by the supplier.

Which shoe types, sizes and upper materials can it handle?

It is built for sports shoe vamp/upper lasting. The adjustable pincers, dual-mode pulling (automatic/manual) and adjustable toe pressure make it suitable for a wide range of materials (leather, synthetic, fabric). Exact size range and compatibility with specific lasts/materials should be confirmed with the supplier.

What is the machine's throughput?

Rated productivity is approximately 180 pairs per hour, depending on operator skill, shoe model, material and setup.

What utilities and power connections are required?

Electrical supply to support pump motor (1.5 kW) and up to 3.7 kW total power consumption. Hydraulic oil capacity is 100 L. A compressed air supply may be required for pneumatic auxiliaries—confirm exact air pressure/flow with the supplier (typical industrial values are often 6–8 bar).

What standard equipment and mechanisms are included?

Standard equipment includes auxiliary wiper mechanism, auxiliary side pusher mechanism and toe projector mechanism. The main pincer assembly, adjustable last support (two-step up movement), and adjustable toe pusher (two-step pressure with pressure or position control) are also standard.

Can settings be adjusted for different materials and last shapes?

Yes. The machine provides multiple adjustable functions: fine-adjust pincers, selectable automatic or manual pulling per pincer set (left/right), adjustable last support stroke via external knob, two-step last support movement, adjustable toe pusher pressure and no-stepped variable forward wiper speed.

What maintenance and consumables are required?

Regular maintenance includes hydraulic oil changes and checks, inspection/replacement of pincer jaws and seals, lubrication of moving parts, and routine checks of valves and pneumatics. Follow the manufacturer’s maintenance schedule in the user manual for intervals and recommended oil/specifications.

Are spare parts and wear parts available?

Yes. Common spare parts (pincer jaws, seals, valves, hydraulic components, electrical parts) are available. Contact the supplier with part numbers/requirements for lead times and pricing.

What after-sales support, training and documentation are provided?

The supplier can provide operation manuals, setup guides and training (on-site or remote) and commissioning support—please request details when ordering. Video demonstrations and additional detailed pictures are available on request.

What safety features does the machine have?

The machine includes standard industrial safety provisions (emergency stop and guarded moving areas). For a complete list of safety devices and required local safety compliance, ask the supplier for the safety specification sheet.

What are the packaging, shipping, lead time and freight costs?

Packing size and machine weight are provided (packing size 1830×1000×2230 mm, N.W. 1100 kg). Freight costs depend on destination, shipping method and local handling—contact the supplier with your delivery port or address for a shipping quotation. Lead time varies by stock and order quantity—confirm with sales.

What are ordering terms: MOQ, pricing, discounts and payment?

Typical minimum order quantity is 1 unit. For a price list, discounts and payment terms please contact sales directly (they can send price lists and detailed quotations via email, WhatsApp or WeChat). Discounts may be available depending on order size or terms.

Is there a warranty and what are typical warranty terms?

Warranty terms vary by supplier and region. Ask the supplier for the exact warranty period and scope (commonly 12 months for machinery, but confirm). After-sales service and extended support packages may also be available.
