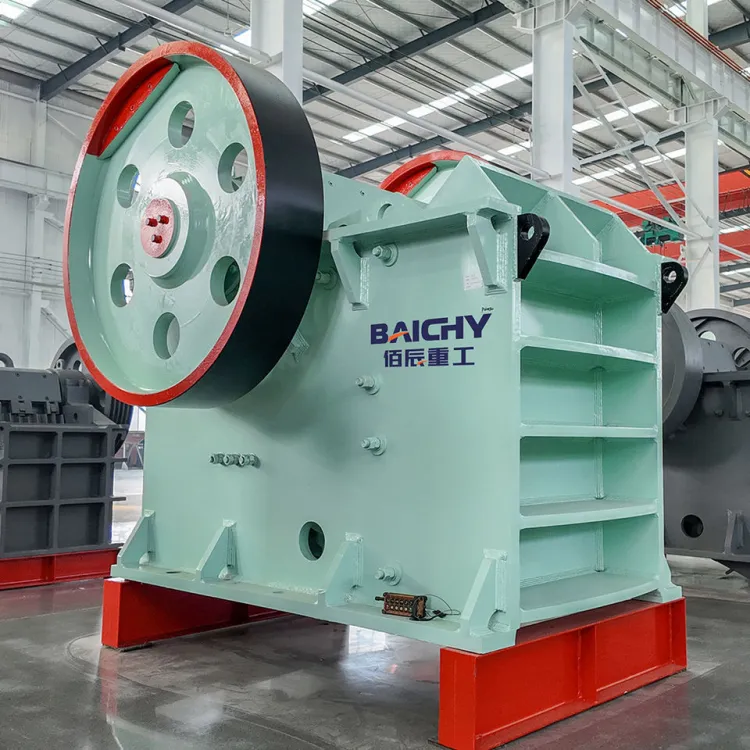

Mining Quarry Jaw Crusher Machine - High-Performance Crusher for Rock Crushing and Ores Processing
- SKU : 1600909948782
Products Description
European jaw crusher
Jycx European jaw crusher is a new type of crushing equipment developed by our company on the basis of traditional compound pendulum jaw crusher. European jaw crusher has higher crushing efficiency.
Product Paramenters
Feeding size： 125-900mm
Capacity： 50-1510T/h
Application field： Metal and nonmetal mine crushing, industrial, chemical and ceramic industries, sand aggregate
Capacity： 50-1510T/h
Application field： Metal and nonmetal mine crushing, industrial, chemical and ceramic industries, sand aggregate
production line, construction waste recycling, railway ballast stone production, etc.
Scope of application：It is suitable for medium crushing and fine crushing of various soft and medium hard ores, such as
Scope of application：It is suitable for medium crushing and fine crushing of various soft and medium hard ores, such as
granite, diabase, basalt, limestone, quartzite, pebble, iron ore, etc
It can crush more than 700 kinds of materials
Working principle
The motor drives the belt and pulley, and makes the moving jaw swing back and forth through the eccentric shaft. When the moving jaw pushes the moving jaw plate to move towards the fixed jaw plate, the material is crushed or split. When the moving jaw and the moving jaw plate retreat under the action of eccentric shaft and spring, the previously crushed or split materials are discharged from the lower discharge port of jaw plate. With the continuous rotation of the motor, the jaw of the crusher can crush and discharge materials periodically to realize batch production.
Equipment advantage
1. The frame is welded by high-quality steel plate, which has higher strength and fatigue life than ordinary steel plate; the
frame is annealed after welding to avoid stress concentration when subjected to impact load.
frame is annealed after welding to avoid stress concentration when subjected to impact load.
2.The jaw head is cast by advanced technology, with higher strength and more stable performance
3. The main shaft is made of high-quality steel. After quenching and tempering, the yield strength and tensile strength are
higher, the performance is more stable and the service life is longer.
4. The elbow plate design with large centrifugal and large inclination angle makes the effective stroke at the bottom of
crushing chamber larger.
5. Large range of discharge port design, small discharge port can produce fine-grained products, large discharge port can
produce large-scale products; hydraulic adjustment of discharge port is more convenient and stable.
6. Compared with ordinary epsilon, the foundation of jycx European ebook is simple, and the installation is more convenient and practical.
Product packaging
|
Model
|
Size Of Feed Mouth(mm)
|
Max Feeder Size(mm)
|
Output Size(mm)
|
Capacity(t/h)
|
Power(kw)
|
Overall Dimensions(mm)
|
|
JYCX80
|
520*800
|
420
|
60-150
|
80-290
|
75
|
2650*1540*1780
|
|
JYCX100
|
760*1100
|
630
|
70-175
|
130-420
|
110
|
3700*2440*2520
|
|
JYCX110
|
850*1100
|
720
|
80-200
|
160-550
|
160
|
3800*2450*2550
|
|
JYCX125
|
900*1250
|
750
|
90-280
|
200-680
|
160
|
4450*2310*3410
|
|
JYCX145
|
1100*1450
|
920
|
125-275
|
320-950
|
200
|
4400*3060*3210
|
|
JYCX160
|
1200*1600
|
1020
|
150-300
|
410-1150
|
250
|
5700*3650*3550
|
|
JYCX200
|
1500*2000
|
1200
|
170-300
|
610-1510
|
400
|
6500*3990*4260
|
- Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 28 Feb, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
- Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
- Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
- Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.
1. What is the maximum feeding size for the Mining Quarry Jaw Crusher Machine?
The maximum feeding size for the Mining Quarry Jaw Crusher Machine is between 420 mm to 1200 mm, depending on the model.
2. What types of materials can this jaw crusher crush?
This jaw crusher can crush more than 700 kinds of materials, including soft and medium hard ores like granite, diabase, basalt, limestone, quartzite, pebble, and iron ore.
3. What is the capacity range of the Mining Quarry Jaw Crusher Machine?
The capacity range is from 50 to 1510 tons per hour, depending on the model.
4. Can this machine be used for recycling construction waste?
Yes, the Mining Quarry Jaw Crusher Machine is suitable for recycling construction waste as well as metal and nonmetal mine crushing.
5. What are the main advantages of the JYCX European jaw crusher?
The main advantages include a high-quality welded frame for better strength, advanced casting technology for jaw heads, high-quality steel main shaft for durability, and a large range of discharge port design for versatile output.
6. Does the jaw crusher require special installation?
The installation of the JYCX European jaw crusher is designed to be simple and practical, requiring no special installation methods.
7. What is the working principle of the jaw crusher?
The motor drives the belt and pulley, causing the moving jaw to swing back and forth. This movement crushes or splits the material against the fixed jaw plate, allowing for batch production.
8. How can I adjust the discharge port?
The discharge port can be adjusted hydraulically, making it convenient and stable for producing different sizes of crushed material.
9. What is the overall dimension of the JYCX200 model?
The overall dimensions of the JYCX200 model are 6500 mm x 3990 mm x 4260 mm.
10. What power is required for the JYCX160 model?
The JYCX160 model requires a power supply of 250 kW.
11. Is the jaw crusher suitable for industrial applications?
Yes, it is suitable for various industrial applications, including chemical and ceramic industries, as well as sand aggregate production lines.
12. What is the weight of the JYCX145 model?
The weight of the JYCX145 model is not specified, but it is designed to be robust and durable.
13. How does the jaw crusher improve crushing efficiency?
The JYCX European jaw crusher features a design that enhances crushing efficiency through its advanced technology and structural improvements over traditional models.
14. What are the maintenance requirements for this jaw crusher?
Routine maintenance involves checking and replacing wear parts, lubricating moving components, and ensuring that the hydraulic system functions properly to maintain optimal performance.
15. Is training provided for operating the jaw crusher?
Yes, training is typically provided for operators to ensure they understand the machine's functions and safety protocols.
