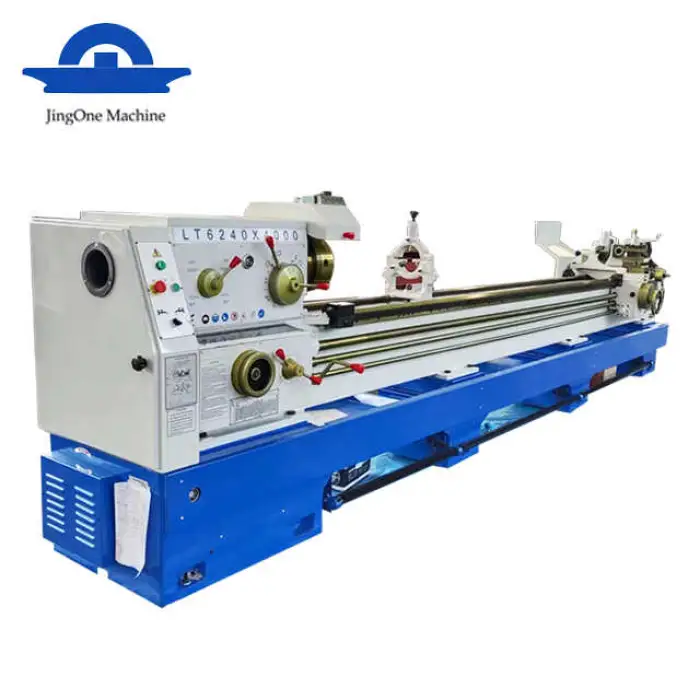

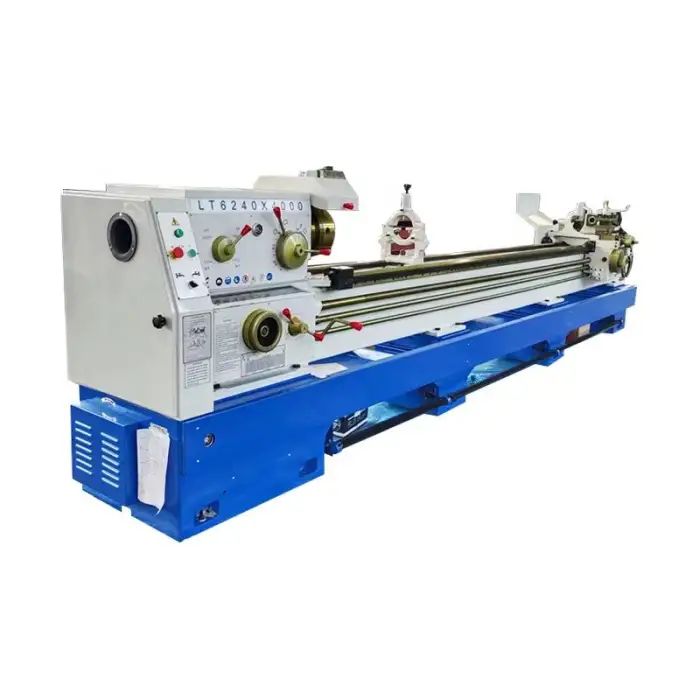

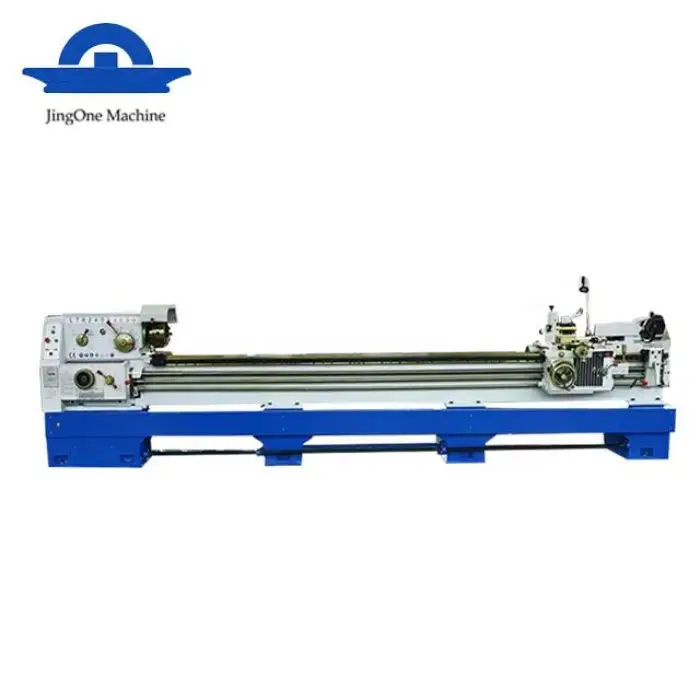

The Metal Cutting Precision Lathes Precision Horizontal Manual Lathe Machine is designed for serious metalworking tasks. This powerful machine offers high precision and versatility for a wide range of machining processes. Whether you are turning, milling, tapping, or dr...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Metal Cutting Precision Lathes Precision Horizontal Manual Lathe Machine is designed for serious metalworking tasks. This powerful machine offers high precision and versatility for a wide range of machining processes. Whether you are turning, milling, tapping, or drilling, this lathe machine delivers outstanding performance and reliability.
| Attribute | Details |
|---|---|
| Model Number | C6240X4000 |
| Machine Type | Manual Lathe Machine for Metal |
| Max. Length of Workpiece (mm) | 4000 |
| Max. Weight of Workpiece (kg) | 300 |
| Number of Spindles | Single |
| Number of Axes | 2 |
| Tool Post Stations | 4 |
| Positioning Accuracy (mm) | ±0.01 |
| Repeatability (x/y/z) (mm) | ±0.006 |
| Spindle Speed (r.p.m) | 10 - 1400 |
| Travel (X Axis) (mm) | 320 |
| Travel (Z Axis) (mm) | 3900 |
| Cutting Torque | 1400 |
| Gross Weight (kg) | 2000 |
| Warranty | 1 Year |
| Unit | CA6140 CA6140B | CA6240 CA6240B | ||
| Capacity | Max. Swing over bed | mm | 400 | 400 |
| Max. Swing over carriage | mm | 210 | 210 | |
| Max. swing in gap | mm | 630 | ||
| Effective gap length | mm | 210 | ||
| Max Workpiece Length | mm | 750/1000/1500/2000/2200/3000/4000 | ||
| Max Cutting Length | mm | 650/900/1400/1900/2100/2900/3900 | ||
| Spindle | Spindle Taper | Morse 6/(φ90 1:20)/(φ113 1:20) | ||
| Spindle Speed Range (Forward) | rpm | 10-1400/16-1400 | ||
| Spindle Speed Range (Reverse) | rpm | 12.5-1400/20-1400 | ||
| Spindle bore diameter | mm | 52/80/105 | ||
| Feed&Traverse Rates | Standard Vertical Feed Rates | mm/r | 0.08-1.59 | |
| Fine Vertical Feed Rates | mm/r | 0.028-0.054/0.043-0.083 | ||
| Increased Vertical Feed Rates | mm/r | 1.71-6.33 | ||
| Standard Horizontal Feed Rates | mm/r | 0.04-0.79 | ||
| Fine Horizontal Feed Rates | mm/r | 0.014-0.027/0.022-0.042 | ||
| Increased Horizontal Feed Rates | mm/r | 0.86-3.16 | ||
| Rapid Traverse Rate (Vertical) | m/min | 4 | ||
| Rapid Traverse Rate (Horizontal) | m/min | 2 | ||
| Threading Capacities | Metric threads-Number | Range | mm | 44 | 1-192 | |
| Imperial threads-Number | Range | TPI | 21 | 2/24 | ||
| module threads-Number | Range | mm | 39 | 0.25-48 | ||
| Diameter pitch threads threads-Number | Range | TPI | 37 | 1-96 | ||
| Tool Post | Lower Tool Holder Travel | mm | 320 | |
| Upper Tool Holder Travel | mm | 140 | ||
| Tool Holder Turntable Rotation | ±90° | |||
| Distance from Spindle Centerline to Tool Support | mm | 26 | ||
| Tool Bar Cross-Section Size | mm | 25x25 | ||
| TailStock | Tailstock Spindle Diameter | mm | 75 | |
| Tailstock Spindle Travel | mm | 150 | ||
| Tailstock Spindle Taper | Morse No. 5 | |||
| Motor & Pump | Main Motor Model | Y132M -4 | ||
| Main Motor Power | Kw | 7.5 | ||
| Main Motor Speed | rpm | 1500 | ||
| Cooling Pump Model | AOB —25 | |||
| Cooling Pump Power | w | 90 | ||
| Cooling Pump Flow Rate | L/min | 25 | ||
| Dimensions & Weight | Max Workpiece Length 750mm Max Workpiece Length 1000mm Max Workpiece Length 1500mm Max Workpiece Length 2000mm Max Workpiece Length 2200mm Max Workpiece Length 3000mm Max Workpiece Length 4000mm | kg | 1990 2070 2220 2570 2600 3200 3720 | |
| Max Workpiece Length750mm Max Workpiece Length 1000mm Max Workpiece Length 1500mm Max Workpiece Length 2000mm Max Workpiece Length 2200mm Max Workpiece Length 3000mm Max Workpiece Length 4000mm | mm | 2400×1000×1267 2650×1000×1267 3150×1000×1267 3650×1000×1267 4030×1000×1267 4800×1000×1267 5680×1000×1267 | ||
| Model Number | C6240X4000 |
|---|---|
| Machine Type | Manual Lathe Machine for Metal |
| Max. Length of Workpiece (mm) | 4000 |
| Max. Weight of Workpiece (kg) | 300 |
| Number of Spindles | Single |
| Number of Axes | 2 |
| Tool Post Stations | 4 |
| Positioning Accuracy (mm) | ±0.01 |
| Repeatability (x/y/z) (mm) | ±0.006 |
| Spindle Speed (r.p.m) | 10 - 1400 |
| Travel (X Axis) (mm) | 320 |
| Travel (Z Axis) (mm) | 3900 |
| Cutting Torque | 1400 |
| Gross Weight (kg) | 2000 |
| Warranty | 1 Year |
The maximum length of workpiece that can be used with this lathe machine is 4000 mm.
The lathe machine can handle a maximum weight of 300 kg for the workpiece.
This lathe machine can perform turning, milling, tapping, and drilling.
The spindle speed range is from 10 to 1400 revolutions per minute (r.p.m).
The positioning accuracy of the machine is ±0.01 mm.
This lathe machine has 4 tool post stations.
Yes, the lathe machine comes with a 1-year warranty.
Yes, this lathe is suitable for educational purposes in machining training.
The gross weight of the lathe machine is 2000 kg.
Yes, it has an eco-friendly design for sustainable operations.
The lathe machine is designed with a high safety level for operator protection.
The lathe machine uses a Y132M -4 main motor with a power of 7.5 kW.
The standard vertical feed rates range from 0.08 to 1.59 mm/r, and the standard horizontal feed rates range from 0.04 to 0.79 mm/r.
The travel distance for the X axis is 320 mm, and for the Z axis, it is 3900 mm.
This lathe machine is suitable for manufacturing general machined parts, custom metal fabrication projects, repair and maintenance of metal components, and precision engineering tasks.
