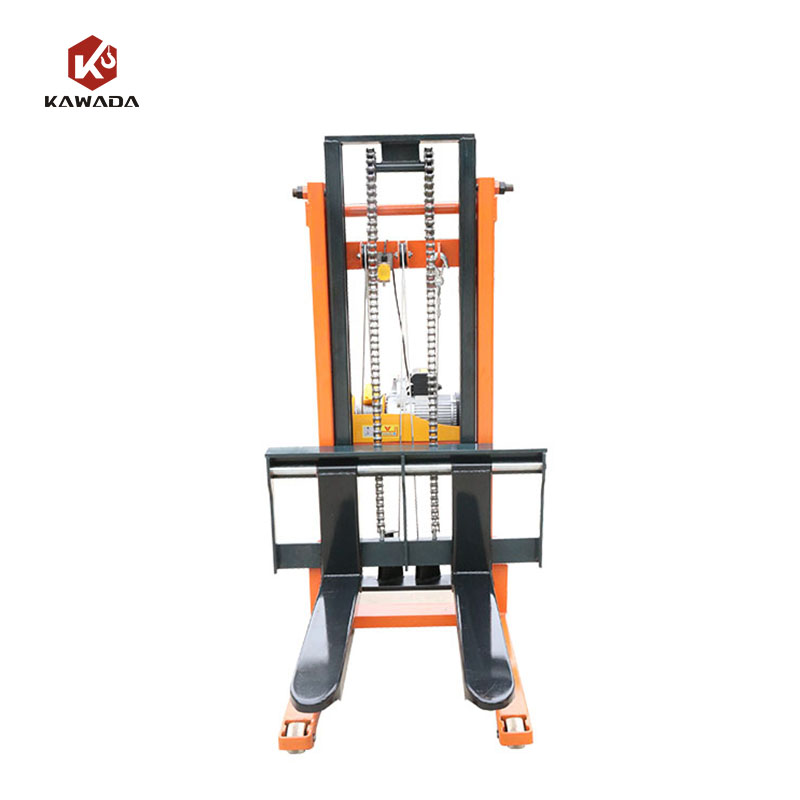

Manual Hydraulic 1 ton 1.6m Hand Pallet Manual Self Loading Stacker

This product family includes three models: CTY-01, CTY-02 and CTY-03.

CTY-01: 1000 kg (1 ton). CTY-02: 2000 kg. CTY-03: 3000 kg.

All three models have a maximum lifting height of 1600 mm (1.6 m).

The lowest height of the forks for all models is 100 mm.

CTY-01: 900 mm. CTY-02: 900 mm. CTY-03: 1000 mm.

CTY-01: 200–580 mm. CTY-02: 240–680 mm. CTY-03: 300–770 mm.

Manual hydraulic means the lifting is powered by a hand-operated hydraulic pump (pump handle) and controlled with a release/lowering valve. No electric motor or battery is required; the operator pumps the handle to raise the forks and opens the valve to lower them.

In this context, 'self-loading' indicates the stacker is designed to pick up and lift pallets directly without needing a separate forklift. Exact self-loading functionality can vary by configuration, so confirm the specific behavior and attachments with the supplier if you need truck-docking or automated loading features.

With adjustable fork widths and standard fork lengths, the stacker suits most common wooden and plastic pallets and block or stringer-style pallets. Verify pallet dimensions against the fork width and length for safe use.

These manual hydraulic stackers are best used on level, firm, and smooth surfaces (warehouse floors). Use on ramps or uneven ground is not recommended unless the surface and load are suitable and safe; consult the manufacturer for guidance and safety limits.

Typical maintenance includes keeping the hydraulic system free of leaks, checking and topping up hydraulic oil per manufacturer guidance, lubricating pivot points, inspecting wheels/rollers and bearings, tightening fasteners, and replacing worn seals or components when needed.

Common safety features on manual hydraulic stackers include a pressure relief or overload valve, secure fork locking, a controlled lowering valve, and parking brakes or wheel locks. Confirm the exact safety features and any optional safety packages with the seller.

Request the detailed datasheet or specification sheet from the manufacturer or supplier. They can provide overall dimensions, net weight, CE/ISO or other certifications, warranty terms, and optional accessories or customizations.
