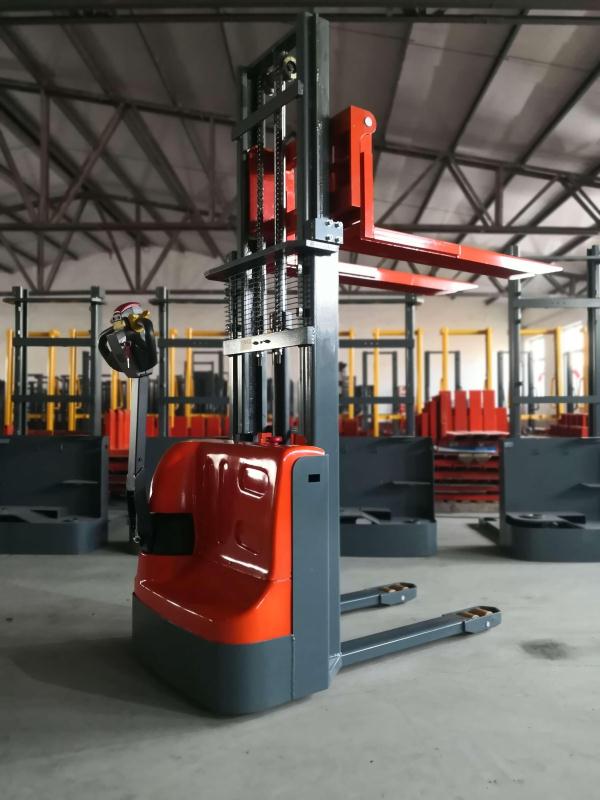

Electric Stacker 1.5 Ton 1.6 Meter

Rated load capacity is 1.5 tons (1 500 kg) and maximum lift height is 1.6 meters.

It uses a lithium‑ion (LFP) battery pack with an integrated BMS. Typical fast charging time is approximately 2–3 hours, depending on charger and battery state.

Runtime depends on load, duty cycle and driving style. Under light to medium warehouse use you can typically expect several hours or a single shift. For exact estimated runtime for your application, contact us with your duty cycle details.

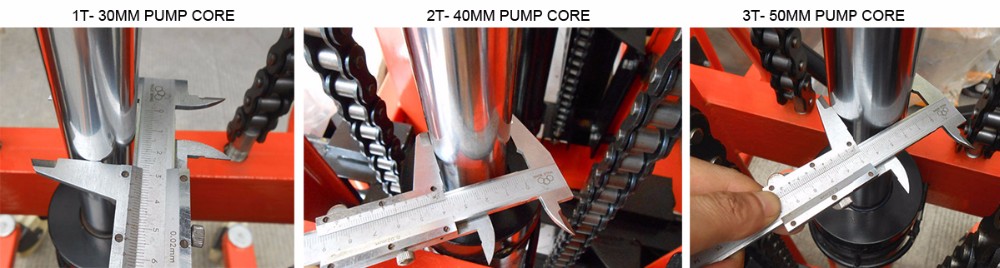

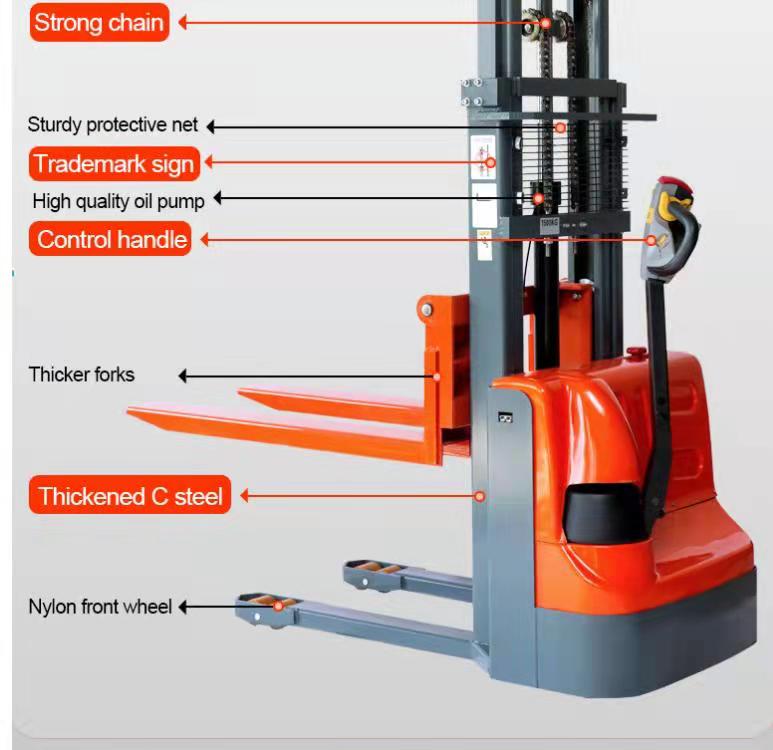

The stacker uses an electro‑hydraulic lifting system: an electric motor drives the hydraulic pump. The hydraulic assembly includes the elevating cylinder, elevating arm and chain/sprocket parts, and gantry/back‑wheel components for reliable lift control.

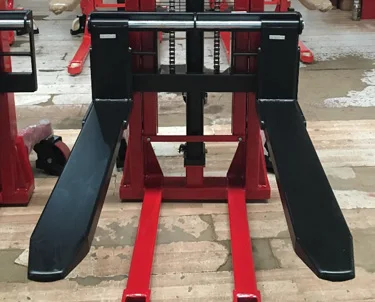

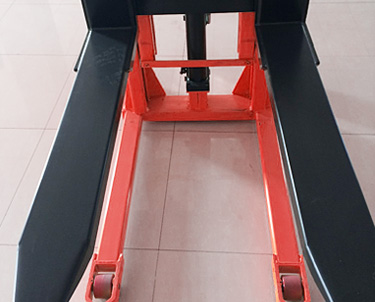

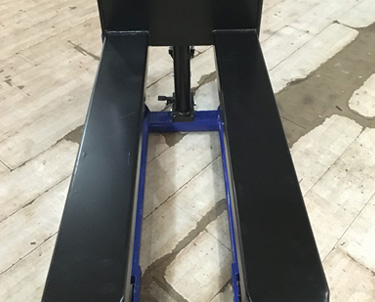

Fork options include: adjustable forks 330–740 mm (leg width 690 mm), fixed fork 550 mm for many European applications (leg width 490 mm), and a special adjustable option 330–830 mm (outside leg, leg width 490 mm). Other lengths and bespoke fork configurations are available on request.

Standard safety features include overload protection, controlled descent (oil reflow/valve control for safe lowering), emergency stop, parking brake/automatic brake, horn and wide‑view mast for improved visibility. Additional options such as lights and audible alarms can be added.

The product is available with CE certification. We can provide documentation for CE conformity and can discuss additional regional certification requirements on request.

Lithium‑ion stackers are lower maintenance than lead‑acid alternatives. Regular checks should include battery health and connections, fork and mast wear, hydraulic fluid condition, wheels and brakes. Routine inspections are recommended (daily operator checks and periodic service intervals—typically every few months depending on usage).

Standard warranty terms vary by supplier; typically a 12‑month limited warranty on the vehicle is offered. Battery warranty terms may differ—please consult your sales representative for specific warranty length and coverage. Spare parts and service support are available through our network.

Lithium batteries are sensitive to extreme temperatures. The stacker is suitable for normal warehouse temperatures. For cold‑store applications or continuous operation in extreme heat/cold, we offer optional cold‑store battery packages and preconditioning solutions—please request details.

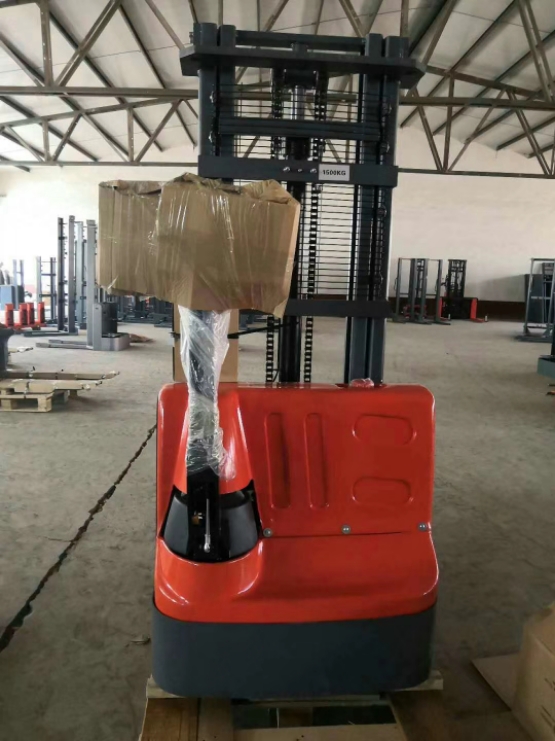

Units are prepared with export packing (shrink wrap, protective materials and/or wooden crates as required) and shipped container‑ready. Delivery options include sea and air freight; lead time depends on order size and destination—contact sales for a shipping estimate and packing details.

Yes. Common options include fork extensions, side‑shifters, different fork widths/lengths, additional lights/alarms and spare battery packs. Some models offer ergonomic upgrades like adjustable controls and optional power steering. Contact us with required options.

Common spare parts include forks, hydraulic pump and valves, lift chains, rollers/wheels, batteries/chargers, controllers and switches. We recommend keeping high‑wear items (wheels, forks, filters) in stock for minimal downtime.

The 1.5‑ton electric stacker is more compact and optimized for lighter loads, narrow aisles and frequent short lifts. A 3‑ton lithium forklift is built for heavier loads, longer duty cycles and more intensive yard/warehouse tasks. Battery technology may be similar, but frame, mast height, stability and drive components differ to suit load class.

Yes. Operators should be trained and certified per local regulations and best practices. Training covers safe operation, pre‑use checks, load handling, battery charging procedures and emergency actions. Training services can be arranged through our support team or local partners.
