YS-830 PCB separator
Usage:
Be dedicated to the separating of aluminum based light bar, high efficiency, long life, without deformation and burrs, greatly saving labor and improving company benefits.
Parameters:
Maximum Cutting length: Unlimited
Cutting thickness: 0.5-3.0 mm
Materials:led light strip. aluminum based board, FR-4, glass fibre board and PCB, etc.
Feeding efficiency: 2.5 pcs in a minute(1200mm pcb with 10 pcs pcb board).
Machine Size: 300*230*220 mm
Whole Size: 800*370*220 mm.(Feeding plate can be customed)

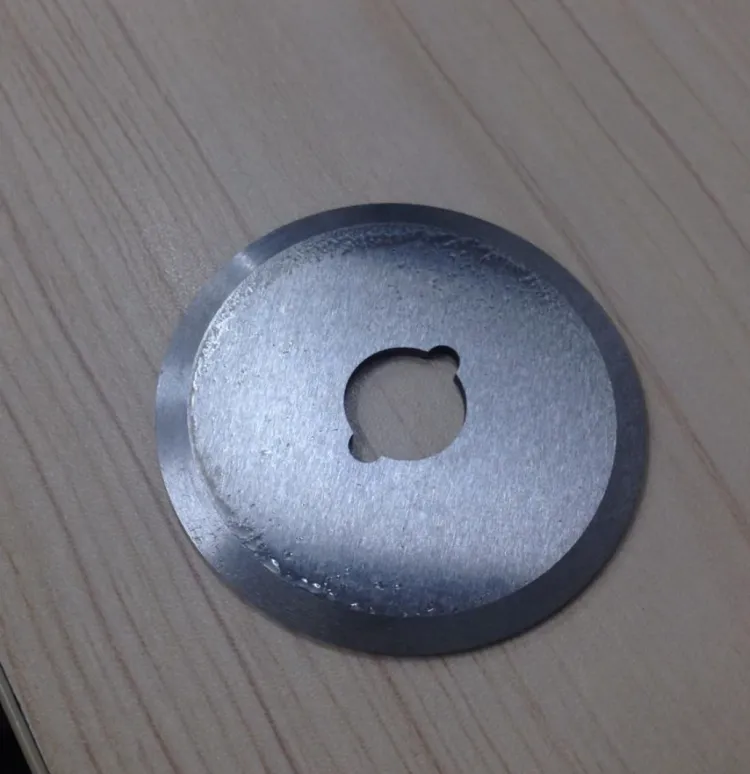

Blade material: SKD-11 high-speed steel material from Japan
Power: 220V 50HZ
Voltage: 40W
Weight: about 36kg
Storage temperature: -20~50℃
Working temperature: 10~35℃
Limited: the distance between the parts on board and the microgroove should be above 1mm; the side width is unlimited.
Features:

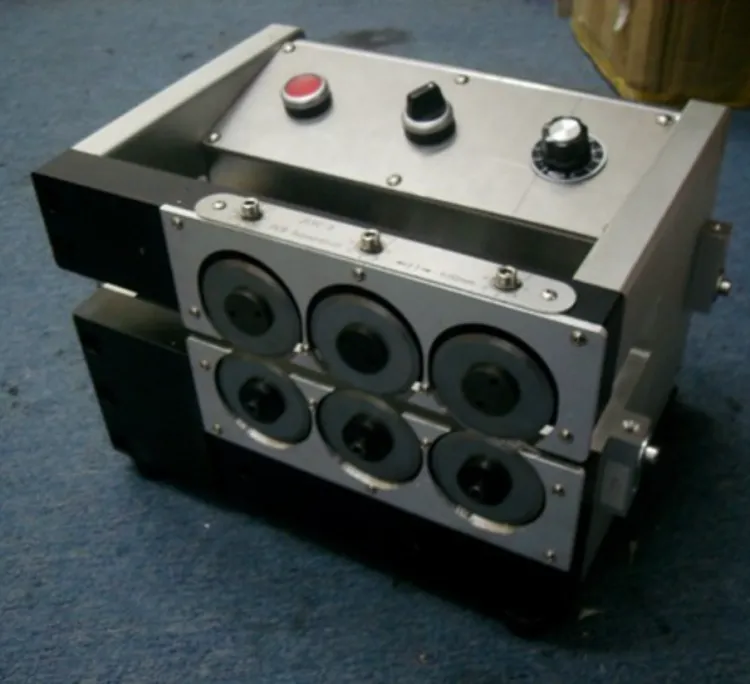

1. The board-cutting is done by 6 blades, and the upside one and the downside one for a cutting unit. So there are Group A, B and C. The whole cutting process is divided into 4 stages. The stress of the cutting process can be reduced by 80% than the traditional one-cut process for the small cutting quantity each time. And the edges of the board are quite smooth after cutting.
2. The cutting process is very stable because of multiple cutting. Even for circuit boards with shallow microgroove.
3. As the low cutting force of the blade, it can prolong the working life of the blades and reduce the cost.
4. Suit for cutting LED aluminum based board, copper substrate, light-emitting tube, light board, display pane, etc.
| Maximum Cutting length | Unlimited |
|---|---|
| Cutting thickness | 0.5-3.0 mm |
| Materials | led light strip. aluminum based board, FR-4, glass fibre board and PCB, etc. |
| Feeding efficiency | 2.5 pcs in a minute(1200mm pcb with 10 pcs pcb board). |
| Machine Size | 300*230*220 mm |
| Whole Size | 800*370*220 mm.(Feeding plate can be customed) |
| Blade material | SKD-11 high-speed steel material from Japan |
| Power | 220V 50HZ |
| Voltage | 40W |
| Weight | about 36kg |
| Storage temperature | -20~50℃ |
| Working temperature | 10~35℃ |
| Limited | the distance between the parts on board and the microgroove should be above 1mm; the side width is unlimited. |
The machine is designed to cut aluminum based light strips, FR-4 boards, glass fibre boards, and other PCBs.
The maximum cutting length is unlimited, allowing for flexibility in cutting various sizes of PCBs.
The machine can cut materials with a thickness ranging from 0.5 mm to 3.0 mm.
The feeding efficiency is approximately 2.5 pieces per minute for a 1200mm PCB with 10 pieces of PCB board.
The machine size is 300*230*220 mm, while the whole size including the feeding plate is 800*370*220 mm.
The machine uses SKD-11 high-speed steel blades sourced from Japan for cutting.
The machine operates at a power of 220V 50HZ with a consumption of 40W.
The machine weighs approximately 36 kg.
The storage temperature should be between -20 to 50℃, and the working temperature should be between 10 to 35℃.
The machine employs multiple cutting blades which reduce the stress of the cutting process by 80% compared to traditional one-cut methods.
Yes, the cutting process is stable enough to handle circuit boards even with shallow microgrooves.
No, the cutting process is designed to ensure smooth edges without deformation or burrs.
Yes, the feeding plate can be customized to suit different production needs.
The machine is also suitable for cutting copper substrates, light-emitting tubes, light boards, and display panes.
The distance between the parts on the board and the microgroove should be above 1mm; the side width has no limitations.
