KYT-20KW-30KWH Lithium-Ion Solar Energy Storage System
- Section : Electrical & Tools
- Category : Solar Energy System
- SKU : 1600714283790

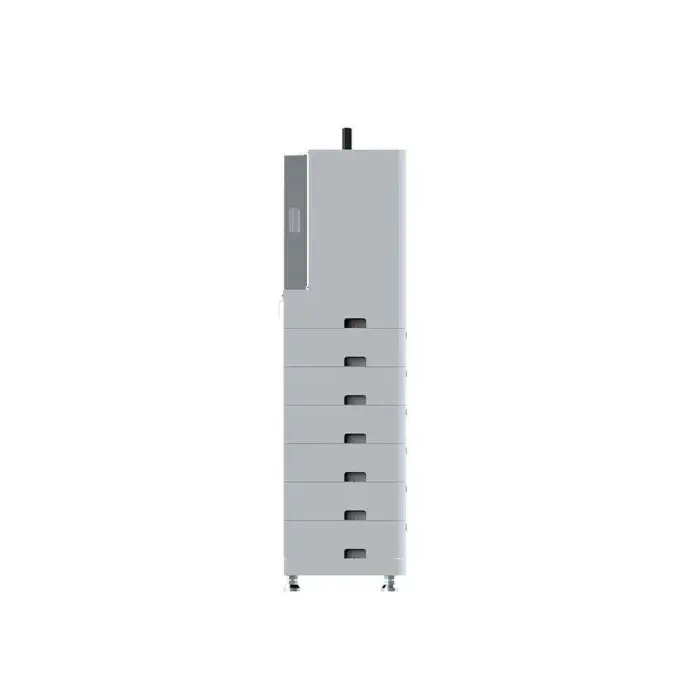

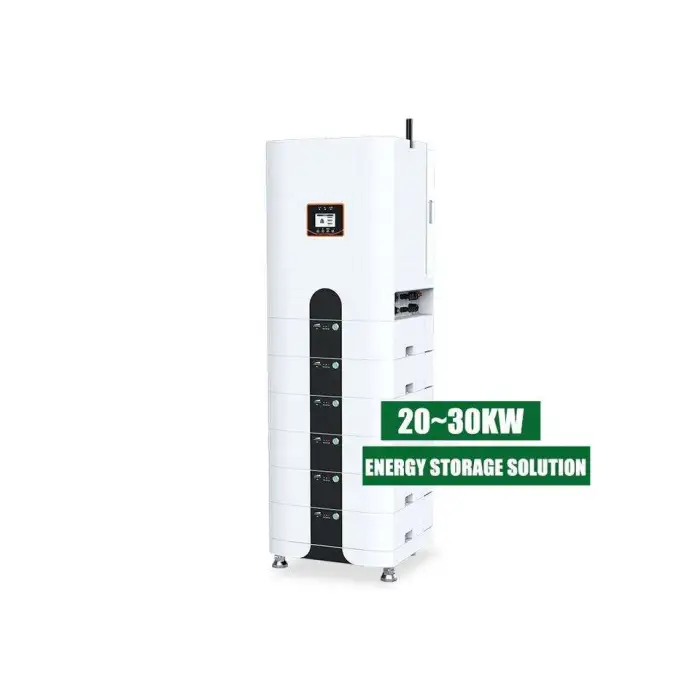

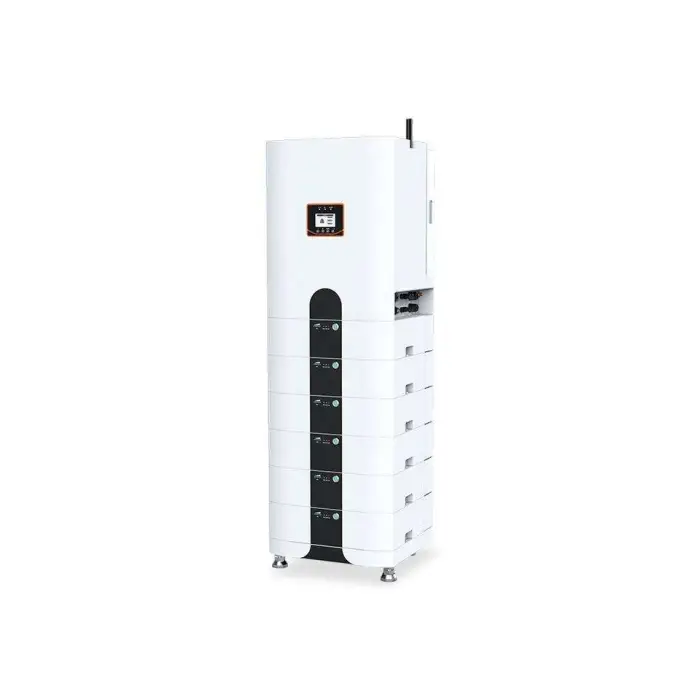

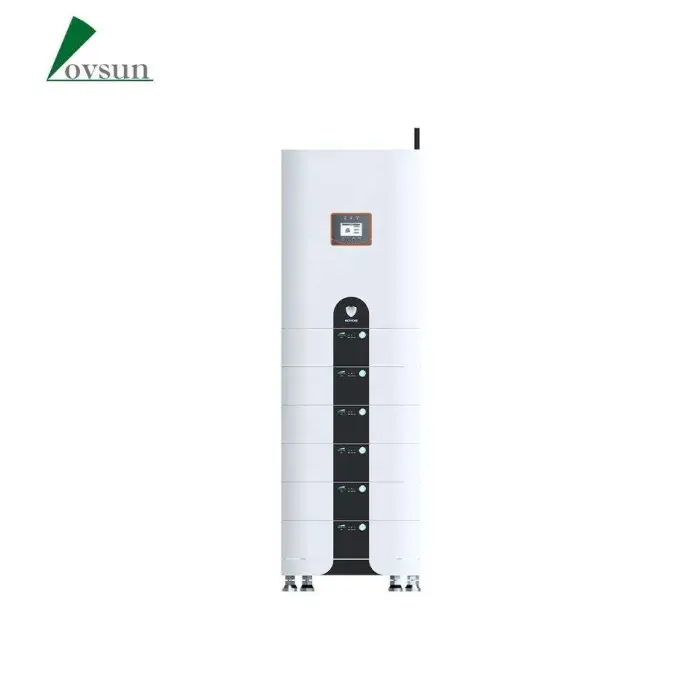

KYT-20KW-30KWH Lithium-Ion Solar Energy Storage System
The KYT-20KW-30KWH Lithium-Ion Solar Energy Storage System is a state-of-the-art solution designed to store solar energy efficiently for residential and commercial use. This system is ideal for anyone looking to harness solar power with maximum efficiency while maintaining a reliable power supply during grid outages. It combines cutting-edge technology with easy installation and reliable performance.
Key Features:
- High Power Capacity: With a maximum output of 20KW and a 30KWH storage capacity, the KYT-20KW-30KWH system offers significant power for both small and large-scale energy needs.
- Lithium-Ion Battery: The system utilizes a lithium-ion battery, known for its high efficiency, longer lifespan, and faster charging capabilities compared to other battery types.
- MPPT Hybrid Solar Inverter: Equipped with a three-phase MPPT hybrid inverter, this system optimizes solar energy conversion, ensuring the highest possible energy efficiency from your solar panels.
- Wide Battery Range: The system supports a battery range of 180-700V, making it adaptable to various solar power setups and ensuring flexibility in energy storage.
- High Input Voltage: With a max input voltage of 1000V, the KYT-20KW-30KWH system is suitable for larger solar arrays and can handle substantial energy loads with ease.
- Nominal Grid Voltage: It operates at a nominal grid voltage of 380V (3L/N/PE), making it compatible with common residential and commercial grid systems.
- Efficient Protection: Featuring an IP65 protection level, the system is dustproof and resistant to water, ensuring it remains reliable even in harsh outdoor conditions.
- Wall-Mounted Installation: The system is designed for wall-hanging installation, saving valuable space and providing a clean, compact setup for your energy storage needs.
- Natural Cooling: The natural cooling method ensures that the system runs efficiently without requiring additional cooling mechanisms or complex maintenance.
- User-Friendly LCD Display: The system comes with an LCD display, allowing you to monitor and control the system easily, ensuring that you always know how much energy is being stored and used.
The KYT-20KW-30KWH Lithium-Ion Solar Energy Storage System is the perfect solution for anyone seeking a reliable and efficient way to store solar energy. With its powerful battery, hybrid inverter, and flexible setup, this system ensures that your home or business has access to sustainable energy, even when the grid goes down. Its durable design and user-friendly features make it a valuable addition to any solar power system.
Product Info Gallery
Specifications
| Model | KY-12kw (20-30kwh) | KY-15kw (20-30kwh) | KY-17kw (20-40kwh) | KY-20kw (20-40kwh) |
| Efficiency | ||||
| MPPT efficiency | 99.90% | 99.90% | 99.90% | 99.90% |
| Max. efficiency | ＞97.80% | ＞97.80% | ＞97.80% | ＞97.80% |
| Battery Efficiency | ＞98.10% | ＞98.10% | ＞98.10% | ＞98.10% |
| Battery Pack | ||||
| Model | 51V105AH | 51V105AH | 51V105AH | 51V105AH |
| Serial Number | 4-6 | 4-6 | 4-6 | 4-6 |
| Cell Type | Li-ion(LFP) | Li-ion(LFP) | Li-ion(LFP) | Li-ion(LFP) |
| Battery Capacity（AH) | 105 | 105 | 105 | 105 |
| Storage Capacity(kWh) | 20-30 | 20-30 | 20-40 | 20-40 |
| Available Capacity(kWh) | 18-27 | 18-27 | 18-27 | 18-36 |
| Cycle Life | 7000 | 7000 | 7000 | 7000 |
| PV Input | ||||
| Max. PV input power(W) | 15600 | 19500 | 22100 | 26000 |
| Max. PV input voltage(V) | 1000 | 1000 | 1000 | 1000 |
| MPPT Operation Voltage Range(V) | 180-950 | 180-950 | 180-950 | 180-950 |
| Number of MPPT/PV string | 2/1 | 2/2 | 2/2 | 2/2 |
| Max. PV input current(A) | 12.5/12.5 | 12.5/23 | 12.5/23 | 23/23 |
| Short-circuit current of PV input(A) | 15/15 | 15/30 | 15/30 | 30/30 |
| Battery Port | ||||
| Operating Voltage Range(V) | 180-700 | 180-700 | 180-700 | 180-700 |
| Max Charge/Discharge Current(A) | 50/50 | 50/50 | 50/50 | 50/50 |
| Communication With BMS | CAN | CAN | CAN | CAN |
| AC Input and Output | ||||
| Rated Power(W) | 12000 | 15000 | 17000 | 20000 |
| Max. Apparent AC Power(VA) | 12000 | 15000 | 17000 | 20000 |
| Nominal AC Voltage(Vac) | 380,3L/N/PE | 380,3L/N/PE | 380,3L/N/PE | 380,3L/N/PE |
| AC Power Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. AC Output Current(A) | 18 | 22 | 25 | 31 |
| Power Factor Range | -1(Adjustable from 0.8 leading to 0.8 lagging) | |||
| Out THDi(@Nominal Output) | ＜3% | ＜3% | ＜3% | ＜3% |
| Off-Grid AC Output(Back-up AC Output) | ||||
| Rated Output Power(W) | 12000 | 15000 | 17000 | 20000 |
| Max. Apparent AC Power(VA) | 12000 | 15000 | 17000 | 20000 |
| Nominal AC Output Voltage(Vac) | 380,3L/N/PE | 380,3L/N/PE | 380,3L/N/PE | 380,3L/N/PE |
| AC Power Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Max. AC Output Current(A) | 18 | 22 | 25 | 31 |
| Operating Temperature Range | -25°C...+60°C(＞45°C derating) | |||
| Genaral Data | ||||
| Operating Altitude(m) | ＜3000 | |||
| Noise(dB) | ＜40 | |||
| Topology | Transformerless | |||
| Cooling Method | Natural | |||
| Ingress Protection Rating | IP65 | |||
| Relative Humidity | 5-85%, no condensation | |||
| Display | LCD | |||
| Communication With Portal | RS485(WiFi/GPRS Optinal) | |||
| Communication With Meter | RS485 | |||
| Dimensions(W*D*H)(mm) | 510*446.5*1690mm | |||
| Certification | ||||
| Safety | IEC62109-1/-2 | |||
| EMC | EN6100-6-1/-2/-3, IEC61000 | |||
| On-Grid standard | AS/NZS 4777.2, NRS 097-2-1:2017 | |||
| Transportation | UN38.3 |
