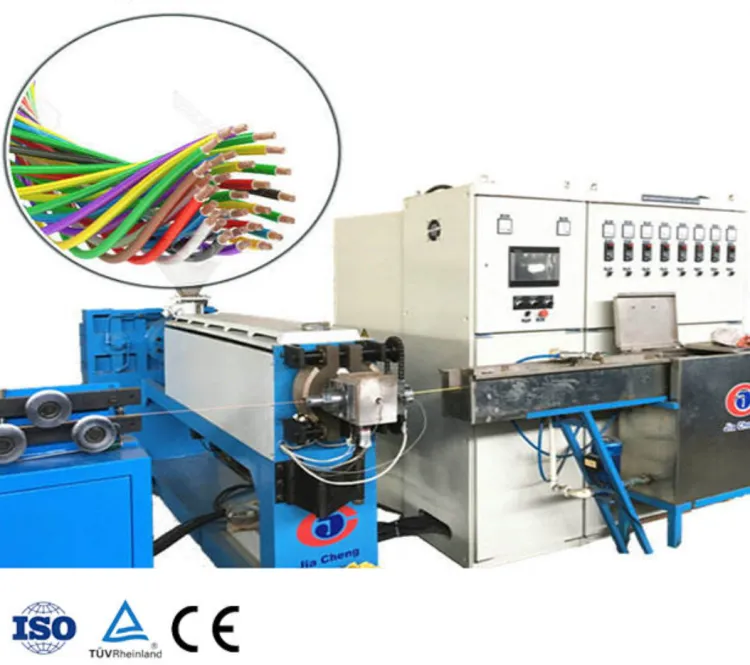

PVC Electrical Wire Extruder Making Machine
Application>>>
It's used for the insulation of wire&cable with PVC.LDPE,NYLON,TPU.
Also it can be equipmented with triple co-extrusion crosshead and double layer
Φ70×25D Extruder Core
1) Power:22kw motor with inverter
2) Positive speed gearbox: grinding gear, enforce lubrication.
3) BM Screw:
A.Diameter:Φ70mm,suitable for extrusion the PVC.
B. Length ratio of screw: 25:1
C. Rev:10-110RPM;
D. Material: 38CrMoAIA nitride treatment;
35mm Color injection Machine
A.Diameter:Φ35mm,suitable for extrusion the PVC.
B.Length ratio of screw: 18:1
C.Material: 38CrMoAIA nitride treatment;
D.Screw type:BM
1.2m Moving Water Trough:
1. Material: SUS304 stainless steel
2. Dimension: u type, 1200mm (L)×220mm(W) ×200mm(W)
Electric control/Operation panel
All computer control system(HMI), programmable logic controller with Taiwan and Taiwan EV PLC + HMI (MT510T-10.4-inch color) full
control.
System
(1) Heating temperature
(2) Power Control
(3) Motor operation control
(4) Instruction sheet control
(5) Process control system
(6) Linked control accessories

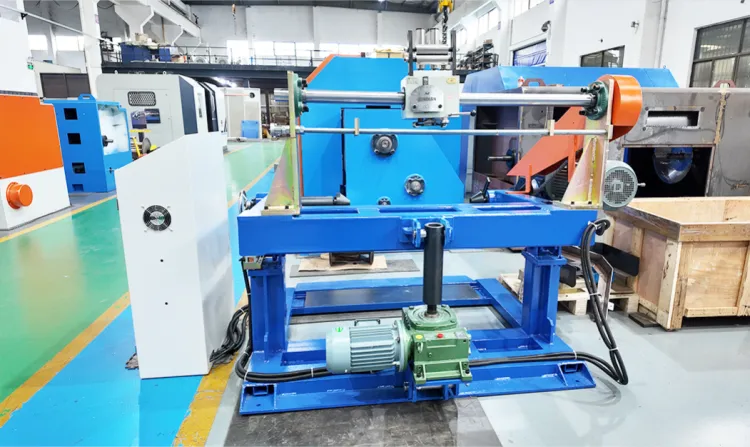

630 Passive Pay Off
1. pay off bobbin size: Φ400-630mm
2. Shaft clamping type:screw nut clamping type
3. Machine stop automatically while wire broken
1.Material: SUS 304 stainless steel.
2.Trough type: U type trough 150Hx200W
3.Length: 6m.
12M accumulator
1. Type: Horizontal
2. Power: 2HP +30:1 reduction gears and 10KG-magnetic powder clutch
3. Accumulator length: 10M-250M
4. Capstan: Diameter Φ250mm, material is cast Aluminum, wheels 10+11
| Main technical parameter | Screw Parameters | Extrusion Capacity (kg/h) | Finished
WireDia. (mm)
| |||||
| Dia(mm) | L/D Ratio | Ratation Speed(r/min) | PVC | LDPE | PP | |||
| JCJX-30 Extrusion | Φ30 | 25:1 | 20-110 | 25 | 16 | 13 | 0.2-1 | |
| JCJX-40 Extrusion | Φ40 | 25:1 | 20-110 | 40 | 20 | 17 | 0.4-3 | |
| JCJX-50 Extrusion | Φ50 | 25:1 | 20-110 | 80 | 40 | 34 | 0.8-5 | |
| JCJX-60 Extrusion | Φ60 | 25:1 | 15-110 | 100 | 53 | 41 | 1-8 | |
| JCJX-70 Extrusion | Φ70 | 25:1 | 15-110 | 130 | 86 | 68 | 2-12 | |
| JCJX-80 Extrusion | Φ80 | 25:1 | 10-90 | 200 | 122 | 96 | 3-25 | |
| JCJX-90 Extrusion | Φ90 | 25:1 | 10-80 | 240 | 133 | 124 | 5-35 |
Finished product for reference
Single core bare wire extrusion cable
Multi core bare wires extrusion cable
Multi core extrusion cable
| 1) Power | 22kw motor with inverter |
|---|---|
| 2) Positive speed gearbox | grinding gear, enforce lubrication. |
| B. Length ratio of screw | 25:1 |
| C. Rev | 10-110RPM; |
| D. Material | 38CrMoAIA nitride treatment; |
| B.Length ratio of screw | 18:1 |
| C.Material | 38CrMoAIA nitride treatment; |
| D.Screw type | BM |
| 1. Material | SUS304 stainless steel |
| 2. Dimension | u type, 1200mm (L)×220mm(W) ×200mm(W) |
| 1. pay off bobbin size | Φ400-630mm |
| 2. Shaft clamping type | screw nut clamping type |
| 1.Material | SUS 304 stainless steel. |
| 2.Trough type | U type trough 150Hx200W |
| 3.Length | 6m. |
| 1. Type | Horizontal |
| 2. Power | 2HP +30:1 reduction gears and 10KG-magnetic powder clutch |
| 3. Accumulator length | 10M-250M |
| 4. Capstan | Diameter Φ250mm, material is cast Aluminum, wheels 10+11 |
The JIACHENG 90 extruder can handle PVC, LDPE, NYLON, and TPU for wire and cable insulation.
The extruder is equipped with a 22kw motor with an inverter for efficient operation.
The JIACHENG 90 can extrude up to 240 kg/h depending on the material.
The screw has a length-to-diameter ratio of 25:1.
Yes, the JIACHENG 90 extruder is capable of producing multi-core extrusion cables.
The extruder features a full computer control system (HMI) with a programmable logic controller.
The diameter of the main extruder screw is Φ70mm.
Yes, the JIACHENG 90 is suitable for various production scales, including small to medium-sized manufacturing.
The machine includes an automatic stop feature if the wire breaks, ensuring safety during operation.
The water trough is made of SUS304 stainless steel, ensuring durability and resistance to corrosion.
The accumulator allows for continuous operation by storing a length of wire, which helps in maintaining a steady production flow.
The moving water trough has dimensions of 1200mm (L) × 220mm (W) × 200mm (H).
The screw is made from 38CrMoAIA with nitride treatment, enhancing its durability and wear resistance for better extrusion performance.
The JIACHENG 90 can produce finished wire with a diameter of up to 35mm.
Warranty details can vary, so it's best to check with the supplier or manufacturer for specific warranty information.
