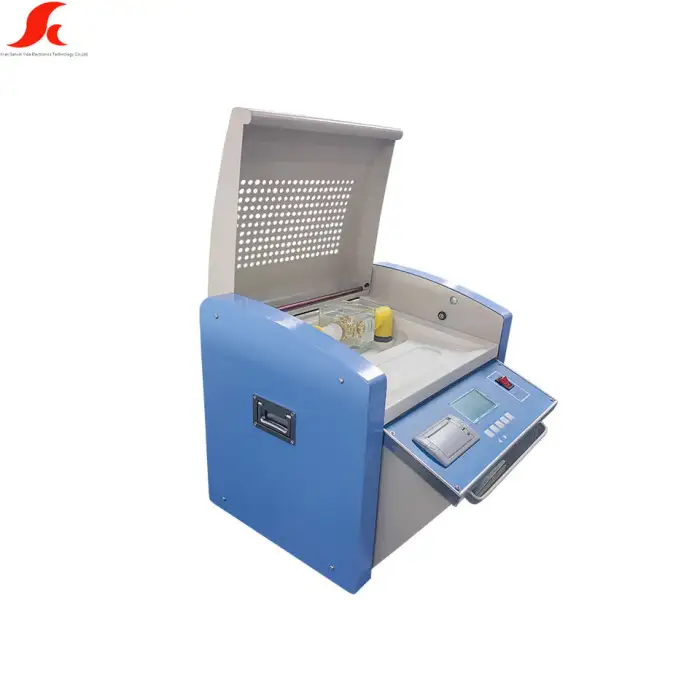

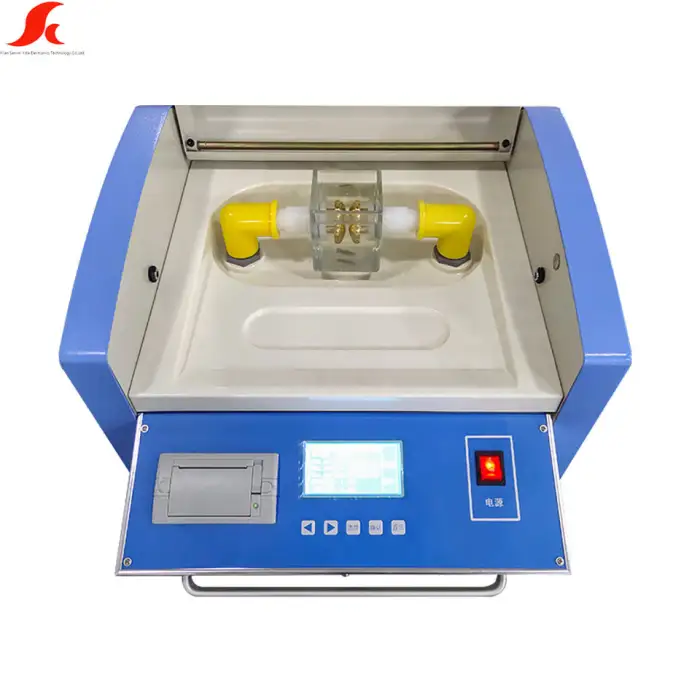

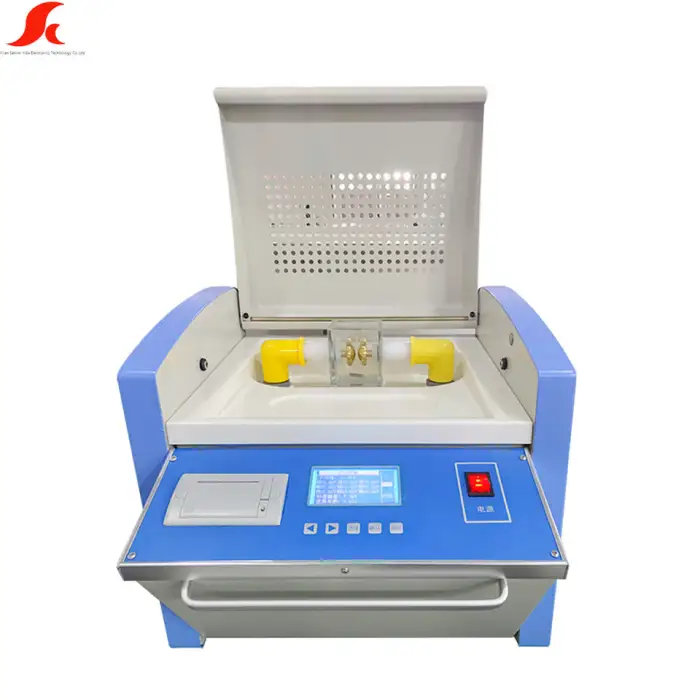

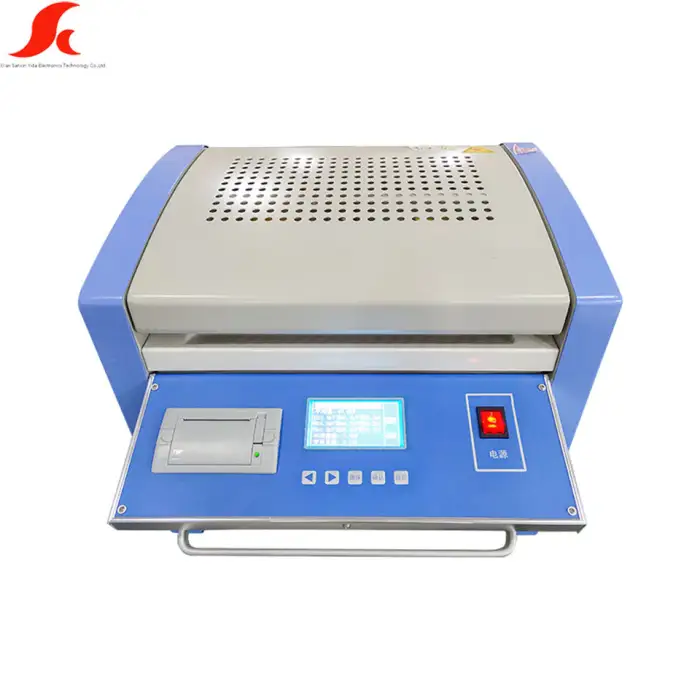

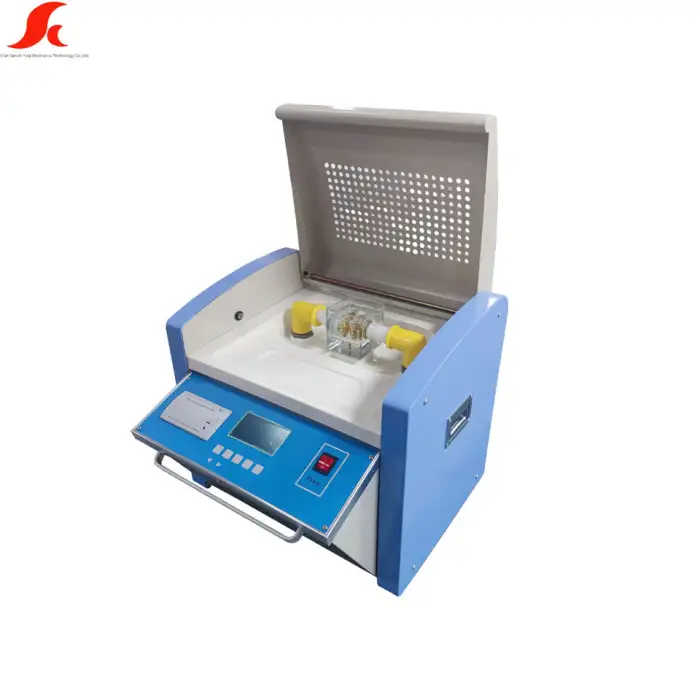

The primary function of the Insulation Oil Dielectric Strength Tester is to measure the dielectric strength of insulation oils, ensuring the safety and reliability of electrical systems.
The tester has an optional output voltage range of 0 to 80 kV.
The tester has an accuracy of ±3%.
The tester is suitable for use in environments with temperatures ranging from 0℃ to 45℃ and humidity levels below 75% RH.
The tester has a boosting interval of 5 minutes before it requires a cooling period.
The boosting speed ranges from 0.5 to 5 kV/S.
The tester comes with a warranty period of 1 year.
Yes, the Insulation Oil Dielectric Strength Tester is designed to be lightweight and portable for easy transport.
The tester is rated with a protection class of IP55, indicating it is dust-tight and protected against water jets.
The tester operates on an AC power supply of 220V ±10% at 50Hz ±1 Hz.
The tester is suitable for testing insulation oils in transformers, quality control in electrical equipment manufacturing, routine maintenance checks for power plants, research and development in electrical engineering, and safety testing for electrical installations.
The single gross weight of the Insulation Oil Dielectric Strength Tester is 60.000 kg.
The single package size for the tester is 46.5 x 38.5 x 42.5 cm.
Yes, the tester features clear controls that make it easy to operate for technicians and engineers.
Absolutely, the Insulation Oil Dielectric Strength Tester is ideal for quality control in the manufacturing of electrical equipment.
