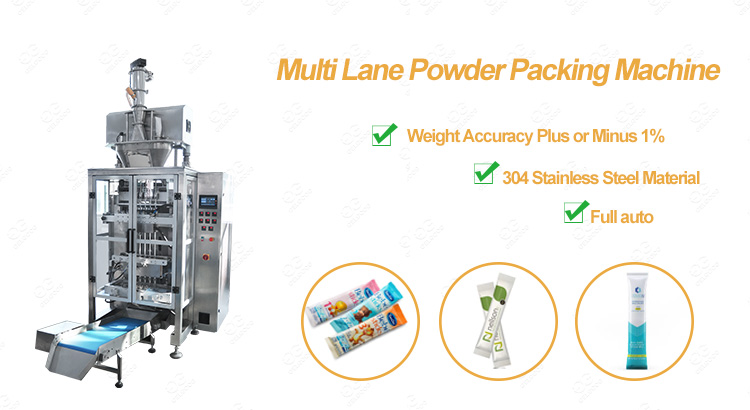

PRODUCT DESCRIPTION

1. Powder package, weight accuracy plus or minus 1%.

2. Four sides sealing, Sachet size W50*L100mm, 6 lanes. Film width 600mm.

3. Packing speed requirement 200 sachet / minute.

4. Sealing lines and dimensions: easy to tear the mouth in the side, seal cut 2, cut off the flat mouth.

5. Packing parameters, bag length, and package weight are easily set in the touch screen.

6. The equipment cylinder is required to have a stirring function, and the material cylinder has a cover with an automatic detecting sensor.

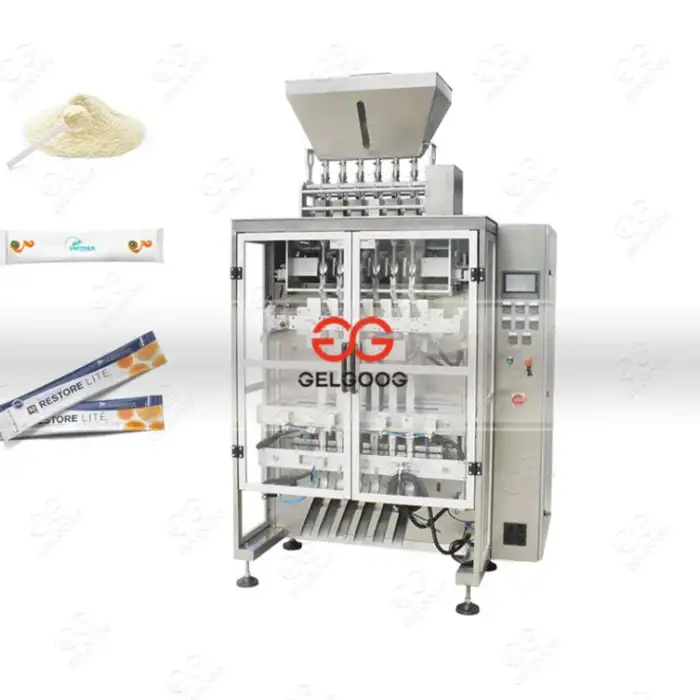

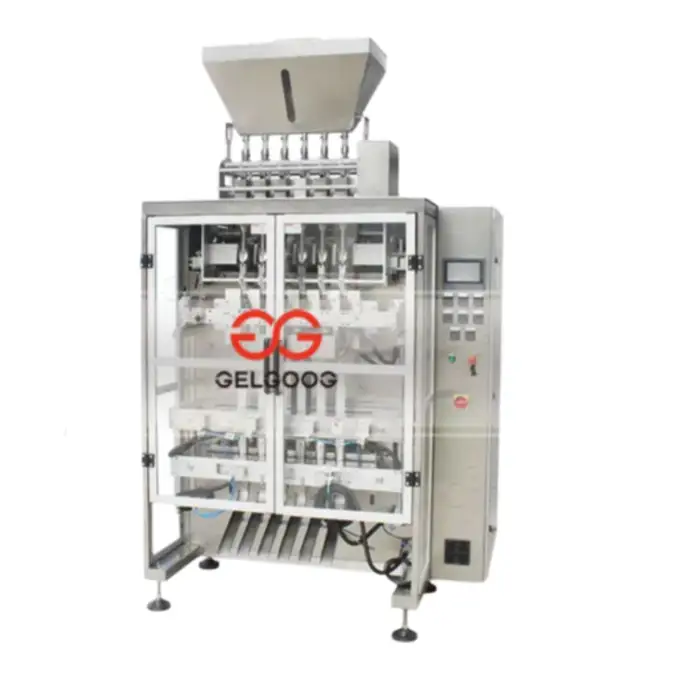

7. The 6 lanes powder packaging machine needs to automatically complete the feeding, coding, filling according to the
target setting, sealing and packaging, and output.

8. The whole machine is made of 304 stainless steel material. Contact parts are made of 316 stainless steel.

MACHINE DETAILS

1. Adapt to bag materials: composite film / composite aluminum film / aluminum film / paper film, etc.

2. Package material thickness: 0.04-0.08 mm

3. Bag length range: 50 mm-120 mm

4. Bag width range: 40-100 mm

5. Sealing width: 4-15 mm (according to customer needs)

6. Packing speed: 20-45 times / Min

7. Gas source: 0.6-0.8 Mpa

8. Power supply specification: 220V/380V 50/60HZ

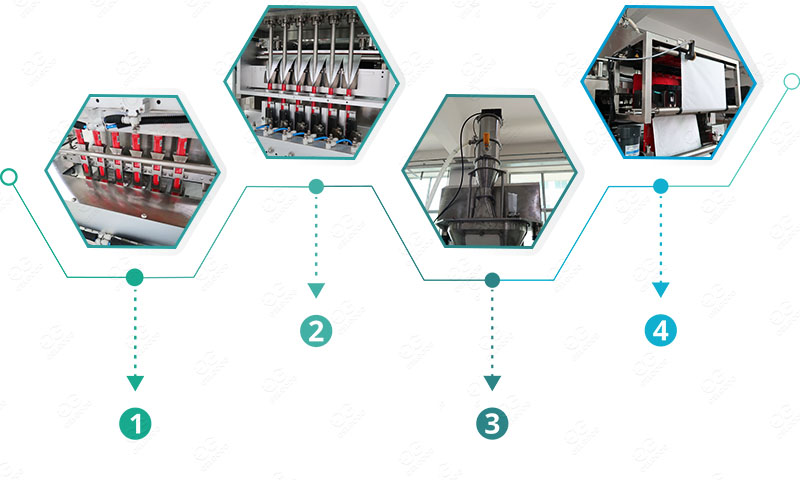

1.Applicable packaging materials: composite aluminum film / aluminum film / paper film.

2.The whole machine is made of high quality 304 stainless steel + aluminum alloy structure.

3.Filling method: Servo motor drives screw filling.

4.Integral formwork: easier to adjust and maintain, optional automatic correction function.

5.Clean working environment, low noise, production bag making, sealing, filling and packaging, printing date is completed in one time

6.Using “Panasonic” PLC control, with “KINCO” multi-language touch screen display, the operation is intuitive and simple, the computer control system runs more stable, the working environment is clean, the noise is small, and any parameters can be adjusted without stopping, showing the production speed, batch, It also has a device fault self-diagnosis function, which can store ten sets of parameters, and it is more convenient and quick to change varieties.

7.The working principle of Schneider servo motor heat sealing bag can be used to change the length of the bag without changing the touch screen of other components, and it is accurate.

8.SICK color-coded electric eye tracking system is used to obtain a complete trademark pattern when packaging color-coded packaging materials.

9.The servo motor is used to drive the screw to fill, the filling speed is fast, and the filling speed filling amount can be easily adjusted in the touch screen, and the precision can reach ±1%.

10.Use compressed air storage tank to ensure air pressure and ensure stable and reliable operation of the equipment. 11.Can be packaged with a variety of filling devices: screw filling device. Measuring cup filling device. Liquid, sauce, paste filling device. And other special product filling devices are used together to meet the needs of a variety of packaging applications.

12.The hopper has its own transparent window for easy observation.

13. PID digital temperature control, temperature independent control, sealing temperature deviation ± 1 degree, temperature control is more stable.

14.Open mechanical mechanism design, all materials are in contact with materials using high quality 304 stainless steel to ensure that the materials in the working process are free of pollution, the machine is easy to clean, and fully meet the
requirements of GMP and food safety certification.

15.This machine is suitable for industry: It is suitable for automatic metering
and packaging of materials in food, medicine and chemical products. It can prevent oxidation, mildew, corruption, moisture, etc. after packaging, and guarantees the shelf life of products.

16.Automatic alarm of equipment failure, the machine automatically
stops when the protective cover or electric box door is not closed, in line with CE safety standards.

Application

Suitable for all kinds of powders, flours and starches, such as: sachet solid drink powders,pea starch, cocoa powder, corn starch,tapioca starch, flour, cake powder, rice powder, milk powder, coffee powder and spice, etc.
