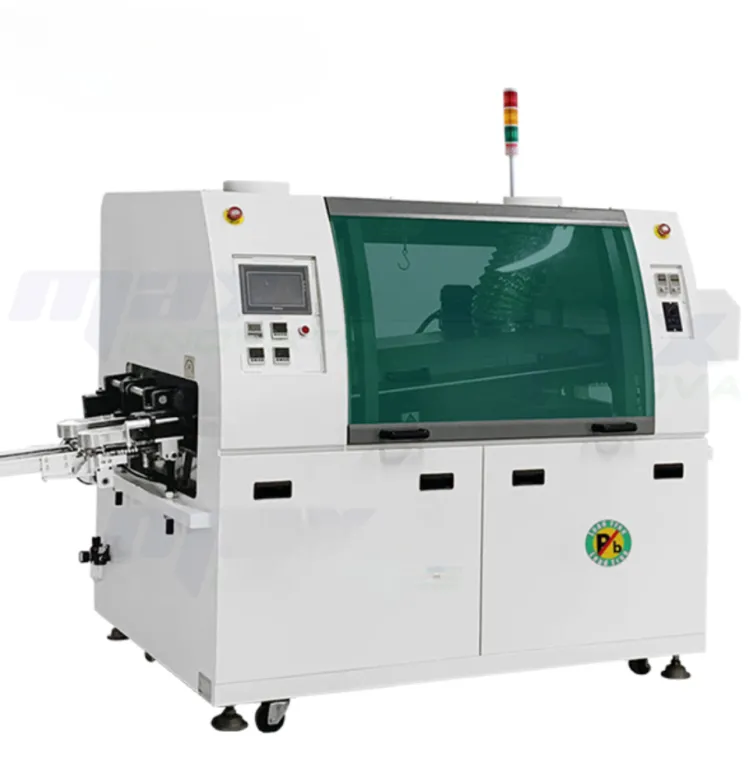

Mini Wave Soldering Machine for DIP Production line

Features:

Open canopy-style streamlined shell design for a beautiful appearance and easy cleaning.
Lead-free solder furnace made of stainless steel for durability, paired with high-strength aluminum rails for a long lifespan.
Uses a PLC + touch screen controller to ensure system reliability and stability.
Spray system equipped with a step motor, adjustable according to PCB size, to save solder flux.
Wave soldering stove features stepless electronic frequency control, allowing independent wave height control.

Specifications:

Model: ETS-200
Dimensions (LWH): 210010501450 mm
PCB Conveyor Height: Max. 760 ±10 mm
PCB Conveyor Direction: L-R
PCB Conveyor Speed: 0-2.0 m/min
PCB Working Width: 0–200 mm adjustable (standard)
Preheating Zone Length: 400 mm
Preheating Zone Number: 1
Preheating Temperature: Room Temperature – 250℃
Wave: Dual wave
Conveyor Path Gradient: 3–7°
Solder Type: Lead-free / lead tin
Power: 3P 5 Wires (5W, 3P) 380V
Power for Heating Up: 8 kW
Power for Operation: Approx. 2.5 kW
Air Supply: 3 kg/cm²
Weight: Approx. 300 kg
