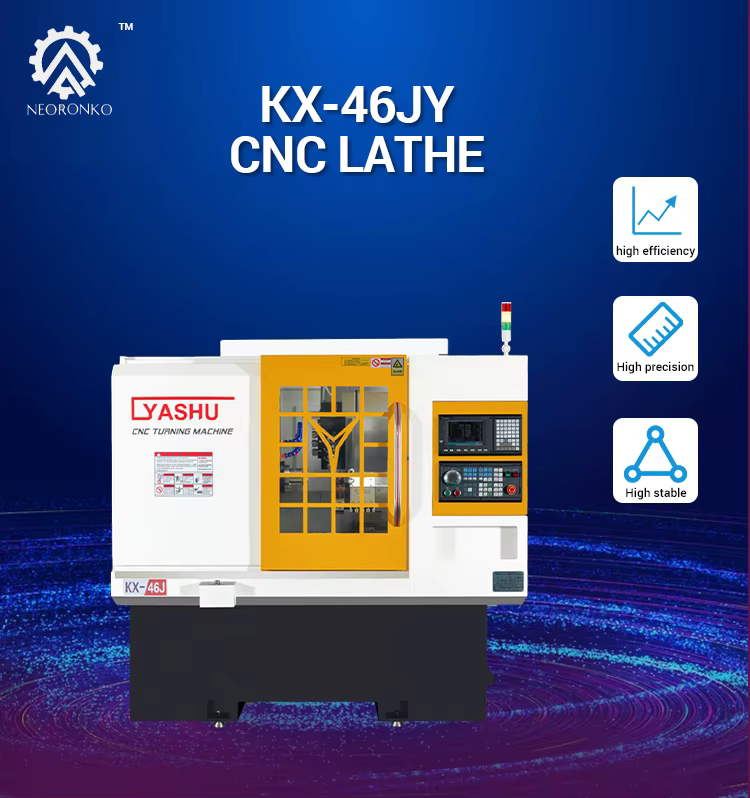

The Heavy Duty CNC Lathes and Automatic Tool Change Lathe Machine is designed for precision metal turning and milling. This machine combines strength and accuracy to meet your machining needs. It is perfect for heavy-duty tasks and offers high performance at a competiti...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The Heavy Duty CNC Lathes and Automatic Tool Change Lathe Machine is designed for precision metal turning and milling. This machine combines strength and accuracy to meet your machining needs. It is perfect for heavy-duty tasks and offers high performance at a competitive price.
| Attribute | Details |
|---|---|
| Brand Name | YASHU |
| CNC Control System | FANUC/SYNTEC/GSK/Kaitong |
| Cutting Torque | 6 |
| Dimensions (L*W*H) | 2120*1620*1970 mm |
| Machining Capacity | Heavy Duty |
| Max. Length of Workpiece | 130 mm |
| Max. Weight of Workpiece | Model Number KX-46JY |
| No. of Spindles | Single |
| Number of Axes | 3 |
| Positioning Accuracy | ±0.0075 mm |
| Spindle Speed Range | 3500 - 4000 RPM |
| Repeatability (X/Y/Z) | ±0.005 mm |
| Tool Post Stations | 12, 8, 6 |
| Travel (X Axis) | 1000 mm |
| Travel (Z Axis) | 400 mm |
| Type | Horizontal |
| Voltage | 380 V |
| Warranty | 1 Year |
| Weight | 3000 kg |
| Width of Bed | 30 mm |
| Technical Parameters | ||||
| Item | Standard Value | Maximum Value | ||
Processing Capacity | Maximum bar material through-hole diameter | 45mm | - | |
| Maximum granule diameter (disc type) | 300mm | 350mm | ||
| Maximum processing work piece length | 350mm | 380mm | ||
| Stainless steel single side cutting amount | 3mm | 4.5mm | ||
| Work piece applicable machining accuracy | ±0.0075mm | - | ||
| Machined surface smooth finish | 1Ra | 1.6Ra | ||
| Tool rest center height | 50mm | - | ||
| Machine tool turning diameter | 500mm | - | ||
| Square knife specifications | 20*20mm | - | ||
| Travel | X axis effective travel | 1000mm | - | |
| Z axis effective travel | 400mm | - | ||
| Y Axis | Y axis type | Side Face 4 + End Face 4 Live Tooling | - | |
| Y axis travel | 220mm | - | ||
| Y axis power clamping type | ER25 | - | ||
| Y axis maximum speed | 2500rpm | 4000rpm | ||
| Y axis fast moving speed | 15m/min | - | ||
| Maximum drill diameter | 16mm | - | ||
Feed | X axis fast moving speed | 25m/min | 30m/min | |
| Z axis fast moving speed | 25m/min | 30m/min | ||
| X axis servo power | 1.5KW | - | ||
| Z axis servo power | 1.5KW | - | ||
Spindle | Maximum spindle speed | 3500rpm | 4000rpm | |
| Spindle motor power | 5.5KW | 7.5KW | ||

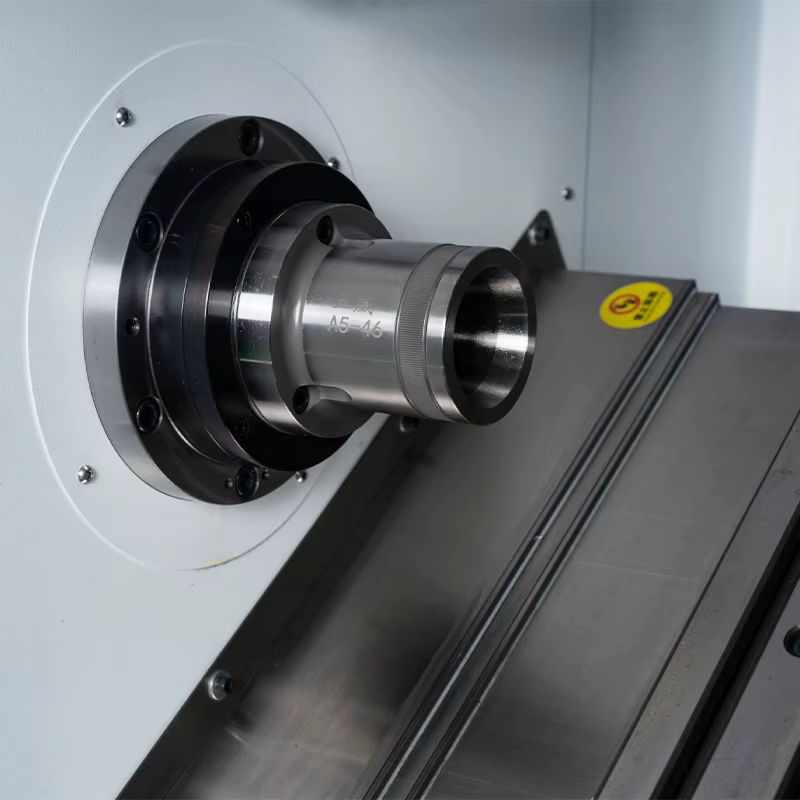

| Spindle nose model | A2-5 | - | ||
| Hydraulic chuck available dimensions | 8 inches | 10 inches | ||
| Size & Weight | External dimensions | Estimated 2100*1500*1900mm | - | |
| Overall weight / Net weight | Estimated 2800KGs | - | ||
Machine Tool Specifications and Component Items | Specifications | Standard Configuration | Optional Configuration | |
Component Specifications | Lead screw | 32mm | Taiwan ball grinding precision grade | - |
| Guide rail | 30mm | Taiwan H-class linear guide rail | - | |
| Axle bearing | - | Self developed high rigidity gun barrel spindle | ||
| Spindle motor | 5.5KW | 5.5KW servo spindle | - | |
| Feed servo | 1.5KW | Yashu & DMC invent joint developed high speed servo | - | |
| Numerical control system | Ac8F-G | Self developed high speed CNC system | - | |
Machine Tool Specifications | Lathe bed form | 45 degrees | Slanting bed lathe | - |
| Base form | - | Heavy duty anti deformation patented base | - | |
| Clamping method | - | Hydraulic clamping | - | |
| Optional Devices for the Machine | Servo turret / Oil bar feeder | |||
| Brand Name | YASHU |
|---|---|
| CNC Control System | FANUC/SYNTEC/GSK/Kaitong |
| Cutting Torque | 6 |
| Dimensions (L*W*H) | 2120*1620*1970 mm |
| Machining Capacity | Heavy Duty |
| Max. Length of Workpiece | 130 mm |
| Max. Weight of Workpiece | Model Number KX-46JY |
| No. of Spindles | Single |
| Number of Axes | 3 |
| Positioning Accuracy | ±0.0075 mm |
| Spindle Speed Range | 3500 - 4000 RPM |
| Repeatability (X/Y/Z) | ±0.005 mm |
| Tool Post Stations | 12, 8, 6 |
| Travel (X Axis) | 1000 mm |
| Travel (Z Axis) | 400 mm |
| Type | Horizontal |
| Voltage | 380 V |
| Warranty | 1 Year |
| Weight | 3000 kg |
| Width of Bed | 30 mm |
The maximum length of workpiece that can be machined by the Heavy Duty CNC Lathe is 130 mm.
This machine is compatible with several CNC control systems including FANUC, SYNTEC, GSK, and Kaitong.
The lathe has a positioning accuracy of ±0.0075 mm.
The Heavy Duty CNC Lathe offers multiple tool post stations with options for 12, 8, or 6 stations.
The spindle speed range of the lathe is between 3500 and 4000 RPM.
The machine weighs approximately 3000 kg.
This lathe is designed for precision machining of metal materials, suitable for applications in automotive, aerospace, and custom machining.
Yes, the Heavy Duty CNC Lathe comes with a 1-year warranty.
The effective travel distance for the X axis is 1000 mm and for the Z axis is 400 mm.
Yes, the lathe features an automatic tool change system for improved efficiency.
The maximum processing workpiece length is 350 mm.
Yes, the lathe can handle stainless steel machining with a single side cutting amount of up to 3 mm.
The X and Z axes have a fast moving speed of 25 m/min.
The spindle motor power ranges from 5.5 KW to 7.5 KW depending on the configuration.
The lathe features a slanting bed design which helps in enhancing rigidity and reducing deformation.
