The GMC2514 GMC3014 CE 5 Axis Milling CNC Machining Center is a powerful and efficient gantry milling machine. It is designed for heavy-duty machining tasks. This machine provides precise control and fast operations. With its advanced features, it is perfect for a varie...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The GMC2514 GMC3014 CE 5 Axis Milling CNC Machining Center is a powerful and efficient gantry milling machine. It is designed for heavy-duty machining tasks. This machine provides precise control and fast operations. With its advanced features, it is perfect for a variety of applications in manufacturing and production.
| Attribute | Details |
|---|---|
| Control System | GSK, SIEMENS, FANUC |
| Cutting Feed Speed | 10 m/min |
| Fast Moving X.Y Axis | 15 m/min |
| Gantry Width | 1500 mm |
| Max. Load Working Table | 5500 kg |
| Spindle Speed | 6000 rpm |
| Table Size | 1200 x 3100 mm |
| Tool Magazine Capacity | Arm type 24 |
| Weight | 20000 kg |
| Warranty | 13 months |
| SPEQFICATIONS | Units | GMC2514 | GMC3014 |
| Table size （ W*L ） | mm | 1200 ×2600 | 1200x3100 |
| X axis travel | mm | 2500 | 3000 |
| Y axis travel | mm | 1500 | 1500 |
| Z axis travel | mm | 800 | 800 |
| Gantry width | mm | 1500 | 1500 |
| Gantry passing height | Mm | 1030 | 1030 |
| Table load | t | 4.5 | 5.5 |
| Distance between spindle nose and table surface | mm | 150~950 | 150-950 |
| T slot(number-width*pitch) | - | 7-22×170 | 7-22x170 |
| Spindle taper | - | BT50/Φ190 | BT50/Φ190 |
| Spindle speed | r/min | 6000 | 6000 |
| Rapid traverse speed | m/min | 15 | 15 |
| Cutting feed speed | m/min | 10 | 10 |
| Main motor power | kw | 15/18.5kW | 15/18.5 |
| Tool magazine | Arm24 | Arm24 | |
| Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 | X/Y ±0.0075 Z ±0.015 |
| Repeat positioning accuracy | mm | ±0.005 | ±0.005 |
| Overall dimension | mm | 5200x2980x3190 | 6600x3200x3700 |
| Machine weight | ton | 18.5 | 20 |
| Control System | GSK, SIEMENS, FANUC |
|---|---|
| Cutting Feed Speed | 10 m/min |
| Fast Moving X.Y Axis | 15 m/min |
| Gantry Width | 1500 mm |
| Max. Load Working Table | 5500 kg |
| Spindle Speed | 6000 rpm |
| Table Size | 1200 x 3100 mm |
| Tool Magazine Capacity | Arm type 24 |
| Weight | 20000 kg |
| Warranty | 13 months |
The GMC2514 has a maximum load capacity of 4.5 tons, while the GMC3014 can support up to 5.5 tons.
The spindle speed for both models ranges from 1 to 8000 rpm, with a maximum speed of 6000 rpm for the GMC2514 and 8000 rpm for the GMC3014.
The GMC2514 GMC3014 features a fast tool change time of only 3 seconds.
The GMC2514 GMC3014 milling machine is compatible with GSK, SIEMENS, and FANUC control systems.
The GMC2514 has a table size of 1200 x 2600 mm, while the GMC3014's table size is 1200 x 3100 mm.
The GMC2514 GMC3014 comes with a warranty period of 13 months.
The GMC2514 weighs approximately 18.5 tons, and the GMC3014 weighs about 20 tons.
This machine is ideal for machining complex parts in aerospace, manufacturing precision components for automotive applications, creating molds and dies, producing intricate designs for medical equipment, and custom machining for specialized industrial applications.
The cutting feed speed for both models is 10 m/min.
The repeat positioning accuracy is ±0.005 mm for both the GMC2514 and GMC3014.
Yes, the GMC2514 GMC3014 is designed for heavy-duty machining tasks and can support large workpieces up to 5500 kg.
The rapid traverse speed for both the X and Y axes is 15 m/min.
The maximum distance between the spindle nose and table surface is between 150 mm and 950 mm.

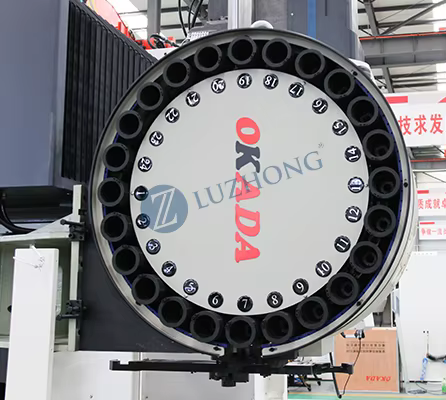

Both models feature an arm-type tool magazine with a capacity of 24 tools.
The overall dimension of the GMC3014 is 6600 x 3200 x 3700 mm.
