- Section : Machinery
- Category : Lathe
- SKU : 1601291088081

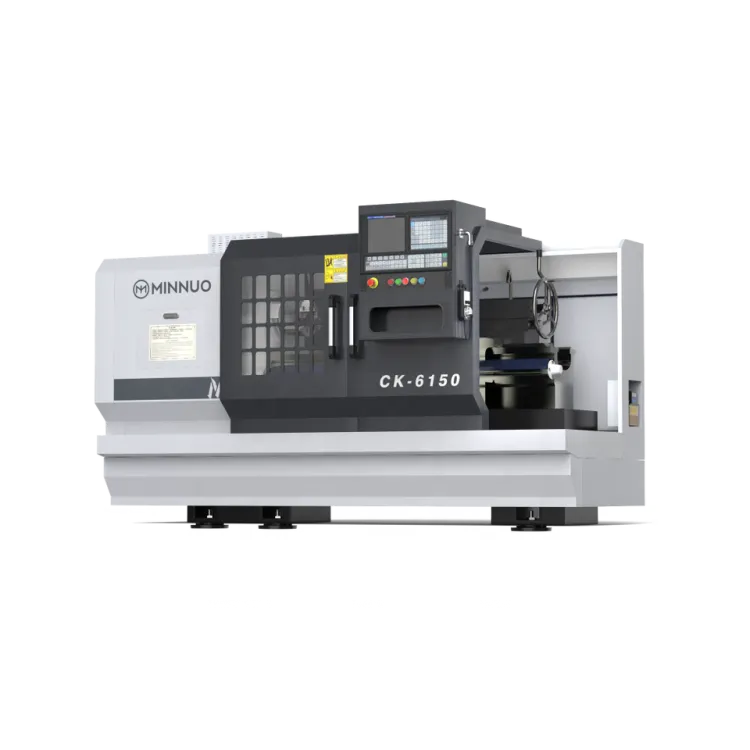

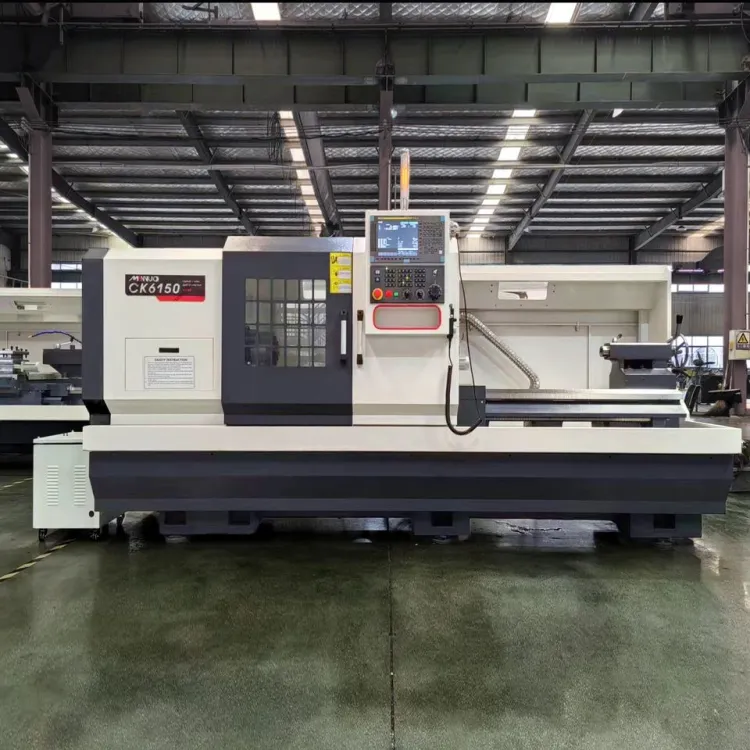

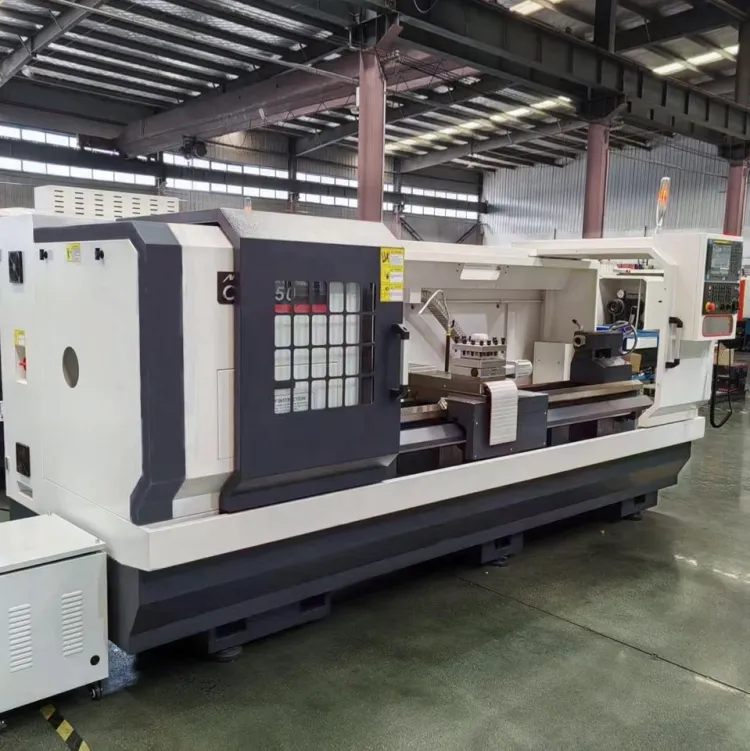

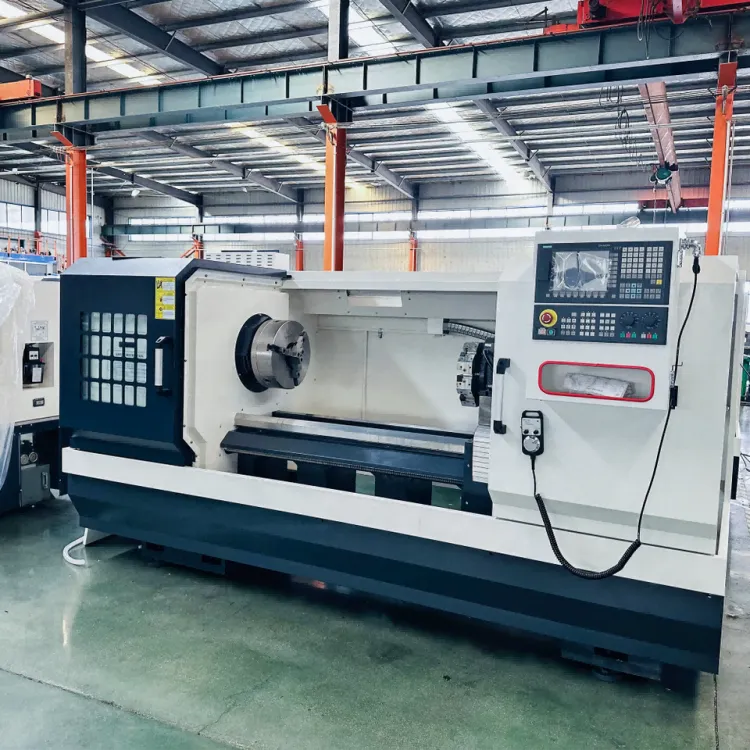

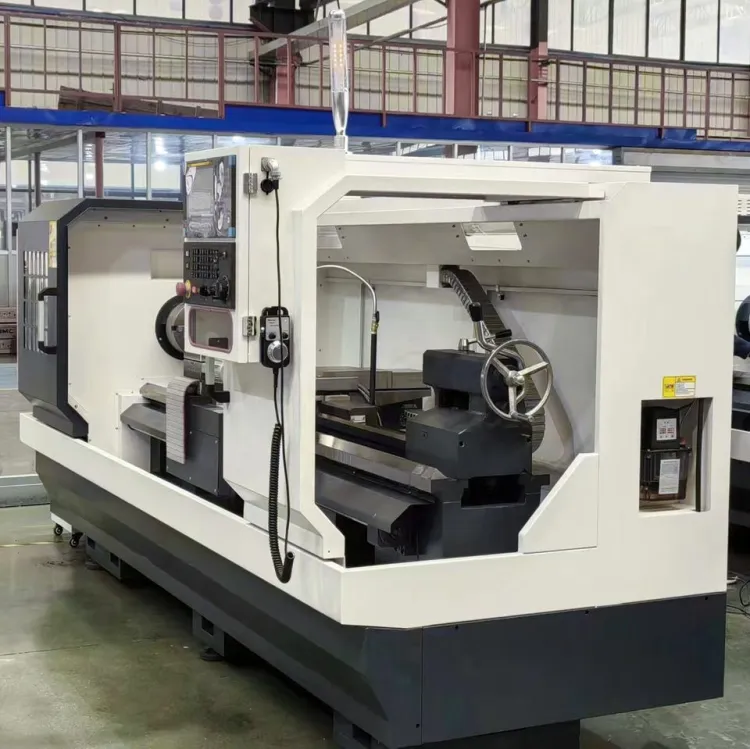

Minnuo CK6150 CNC Flat Bed Lathe – High-Accuracy International Standard Machine
The Minnuo CK6150 CNC Flat Bed Lathe is a top-quality machine built for medium-duty work. It meets international standards. This lathe is made for precise cutting and smooth operation. It works well for many workshop jobs. The CK6150 is strong, reliable, and easy to control. You can trust it for daily use. It helps you make parts with great accuracy every time.
This CNC lathe uses a FANUC control system. That makes it simple to program and operate. It has a hard rail guide way. This gives the machine extra stability. The spindle speed can go from 1 to 1800 r.p.m. So, you can work with many different materials. The Minnuo CK6150 is a great choice for your shop.
Specifications
| Attribute | Details |
|---|---|
| Brand Name | Minnuo |
| Model Number | CK6150 |
| Type | Horizontal Flat Bed Lathe |
| CNC Control System | FANUC |
| Number of Axes | 2 |
| Max. Length of Workpiece | 550, 750, 1000, 1500, 2000 mm |
| Max. Weight of Workpiece | 1000 kg |
| Travel (X Axis) | 280 mm |
| Travel (Z Axis) | 2000 mm |
| Width of Bed | 400 mm |
| Spindle Speed Range | 1 - 1800 r.p.m |
| Tool Post Stations | 4, 6, 8 |
| Positioning Accuracy | ±0.005 mm |
| Repeatability (X/Y/Z) | ±0.005 mm |
| X Axis Rapid Traverse | 6 m/min |
| Z Axis Rapid Traverse | 8 m/min |
| X Axis Servo Motor Torque | 5/7.5 N.m |
| Z Axis Servo Motor Torque | 7.5/10/15 N.m |
| Cutting Torque | 10 N.m |
| Guide Way Type | Hard Rail |
| Machining Capacity | Medium Duty |
| Weight | 2650 kg |
| Dimensions (L*W*H) | 2650*1650*1820 mm |
| Machinery Test Report | Provided |
