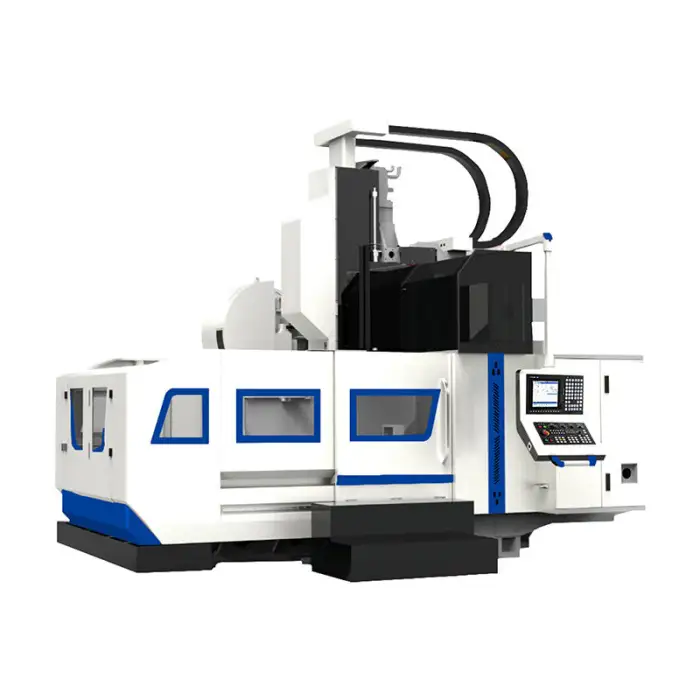

The GMC2013 CNC 5 Axis Milling Machine is a powerful tool designed for precision machining. This vertical machining center features a reliable Fanuc control system and a robust BT50 spindle taper. Built to handle heavy loads and deliver high-speed operations, it is suit...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The GMC2013 CNC 5 Axis Milling Machine is a powerful tool designed for precision machining. This vertical machining center features a reliable Fanuc control system and a robust BT50 spindle taper. Built to handle heavy loads and deliver high-speed operations, it is suitable for various machining tasks. With its competitive price and advanced features, the GMC2013 is an excellent choice for any manufacturing setup.
| Attribute | Details |
|---|---|
| CNC or Not | CNC |
| Certification | CE ISO |
| Brand Name | SHANDONG HUAWEI |
| CNC Control System | FANUC |
| Dimensions (L*W*H) | 6500*3000*4600 mm |
| Maximum Table Load | 3000 kg |
| Minimum Time of Tool Change | 6 seconds |
| Number of Spindles | 3 |
| Positioning Accuracy | 0.01 mm |
| Range of Spindle Speed | 1 - 6000 r.p.m |
| Rapid Feed Speed | 0 - 10000 mm/min |
| Repeatability (X/Y/Z) | 0.006 mm |
| Spindle Taper | BT50 |
| Table Size | 2010*1050 mm |
| Table Travel (X) | 2000 mm |
| Table Travel (Y) | 1300 mm |
| Table Travel (Z) | 700 mm |
| Tool Magazine Capacity | 24 |
| Type | Vertical |
| Voltage | 380 V |
| Warranty | 1 Year |
| Weight | 15 t |
| SPECIFICATIONS | UNITS | GMC1613 | GMC2013 | GMC3020 |
| Table size | mm | 1600*1050 | 2100*1050 | 3000*1800 |
| X Axis travel | mm | 1600 | 2000 | 3200 |
| Y Axis travel | mm | 1300 | 1300 | 2200 |
| Z Axis travel | mm | 700 | 700 | 800 |
| Distance from spindle nose to table surface | mm | 200-900 | 200-900 | 200-1000 |
| Gantry width | mm | 1235 | 1235 | 2000 |
| T slot | mm | 7*22*140 | 7*22*140 | 9*22*200 |
| Spindle taper | BT40/50 | BT50 | BT50 | |
| Max.spindle speed | rpm | 8000/6000 | 6000 | 6000 |
| Main motor power | kw | 11/15 | 15 | 18.5 |
| X/Y/Z axis servo motor torque | NM | 30/30/40 | 40/40/40 | 40/40/40 |
| Max table load | kg | 2000 | 3000 | 8000 |
| Table height from floor | mm | 800 | 800 | 1000 |
| X/Y/Z axis rapid traverse | m/min | 18/18/12 | 15/15/10 | 12/12/10 |
| Cutting feed speed | m/min | 0-10 | 0-10 | 0-10 |
| Positioning accuracy | mm | 0.010/1000 | 0.010/1000 | 0.010/1000 |
| Repeat positioning accuracy | mm | 0.006/1000 | 0.006/1000 | 0.006 |
| Machine dimension | mm | 4700*3200*3600 | 6500*3000*4600 | 9800*4700*3500 |
| Machine weight | kg | 13000 | 15000 | 24000 |
| CNC or Not | CNC |
|---|---|
| Certification | CE ISO |
| Brand Name | SHANDONG HUAWEI |
| CNC Control System | FANUC |
| Dimensions (L*W*H) | 6500*3000*4600 mm |
| Maximum Table Load | 3000 kg |
| Minimum Time of Tool Change | 6 seconds |
| Number of Spindles | 3 |
| Positioning Accuracy | 0.01 mm |
| Range of Spindle Speed | 1 - 6000 r.p.m |
| Rapid Feed Speed | 0 - 10000 mm/min |
| Repeatability (X/Y/Z) | 0.006 mm |
| Spindle Taper | BT50 |
| Table Size | 2010*1050 mm |
| Table Travel (X) | 2000 mm |
| Table Travel (Y) | 1300 mm |
| Table Travel (Z) | 700 mm |
| Tool Magazine Capacity | 24 |
| Type | Vertical |
| Voltage | 380 V |
| Warranty | 1 Year |
| Weight | 15 t |
The GMC2013 CNC milling machine has a maximum table load capacity of 3000 kg.

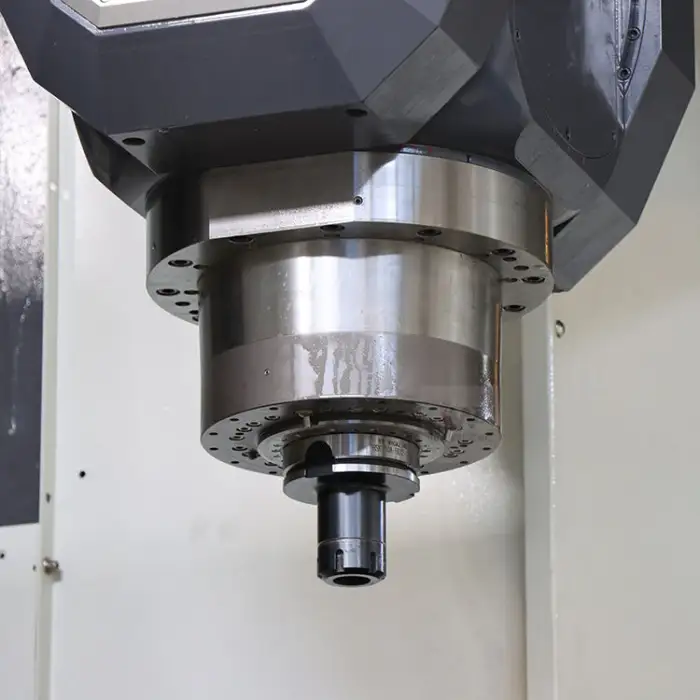

The GMC2013 utilizes a BT50 spindle taper for enhanced performance and tool compatibility.
The positioning accuracy of the GMC2013 is 0.01 mm, ensuring high precision in machining tasks.
The GMC2013 features a minimum tool change time of just 6 seconds, allowing for efficient operations.
The spindle speed of the GMC2013 ranges from 1 to 6000 r.p.m, suitable for various machining applications.
The GMC2013 weighs approximately 15 tons.
The GMC2013 is certified with CE and ISO standards, ensuring compliance with international quality and safety regulations.

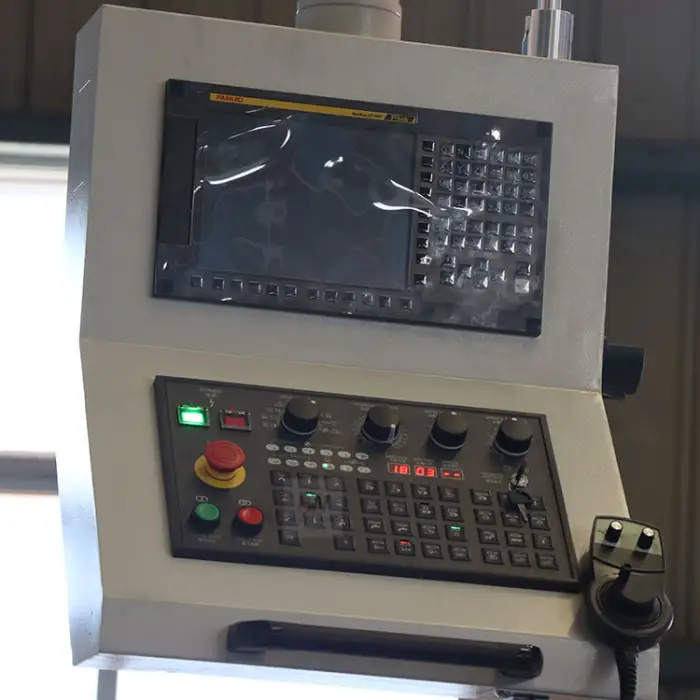

The GMC2013 is equipped with a reliable FANUC control system, known for its precision and ease of use.

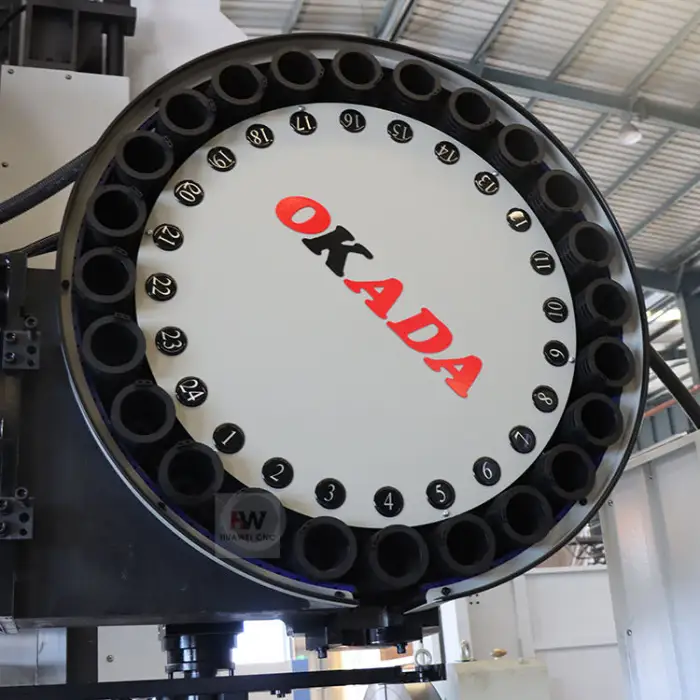

The tool magazine of the GMC2013 has a capacity of 24 tools for efficient machining operations.
The dimensions of the GMC2013 are 6500 mm (L) x 3000 mm (W) x 4600 mm (H).
The rapid feed speed of the GMC2013 ranges from 0 to 10000 mm/min, facilitating fast positioning.
The GMC2013 comes with a 1-year warranty, providing peace of mind for your purchase.
Yes, the GMC2013 is built with heavy-duty construction, making it suitable for heavy machining tasks.
The GMC2013 is suitable for various machining tasks across different industries, thanks to its precision and versatility.
While the GMC2013 is advanced, its FANUC control system is user-friendly, making it a viable option for beginners with proper training.
