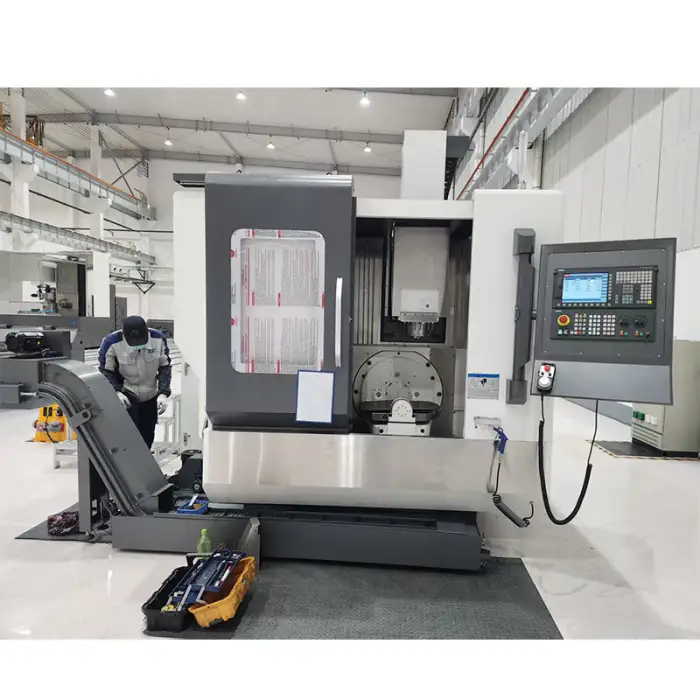

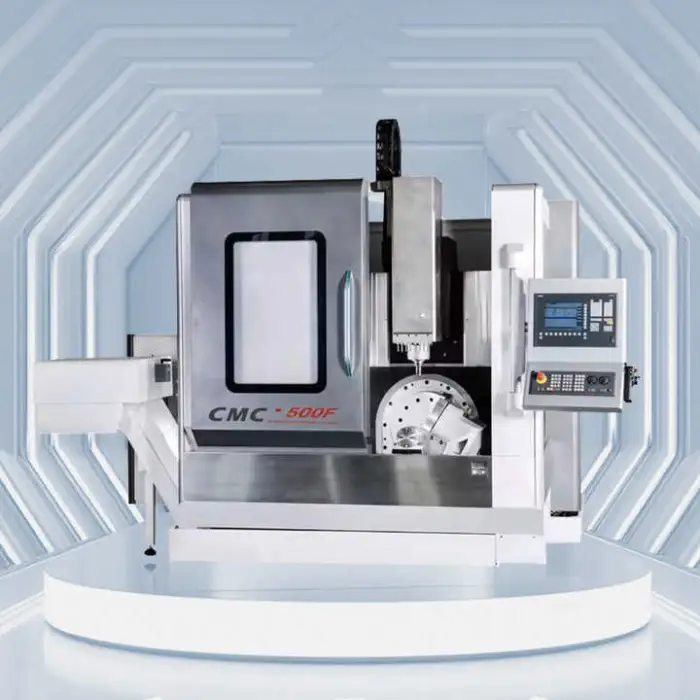

The model of the CNC milling machine is CMC500f.
The CMC500f uses the FANUC CNC control system.
The dimensions of the CMC500f are 3500 mm (L) x 3400 mm (W) x 2700 mm (H).
The weight of the CMC500f is 6500 kg.
The maximum table load for the CMC500f is 200 kg.
The table size of the CMC500f is 630 mm x 500 mm.
The table travel distances are 550 mm for X, 450 mm for Y, and 400 mm for Z.
The spindle speed range of the CMC500f is from 40 to 10000 r.p.m.
The rapid feed speed of the CMC500f is from 1 to 30000 mm/min.
The tool magazine of the CMC500f can hold up to 24 tools.
The warranty period for the CMC500f is 1 year.
The CMC500f is suitable for industries such as automotive, aerospace, medical device manufacturing, and custom tooling.
The CMC500f has a positioning accuracy of 0.008 mm.
The tool change time for the CMC500f is just 6 seconds.
Yes, the CMC500f features versatile 5-axis machining, making it ideal for creating complex parts.
