Gas Cylinder Filling Machine And Scale

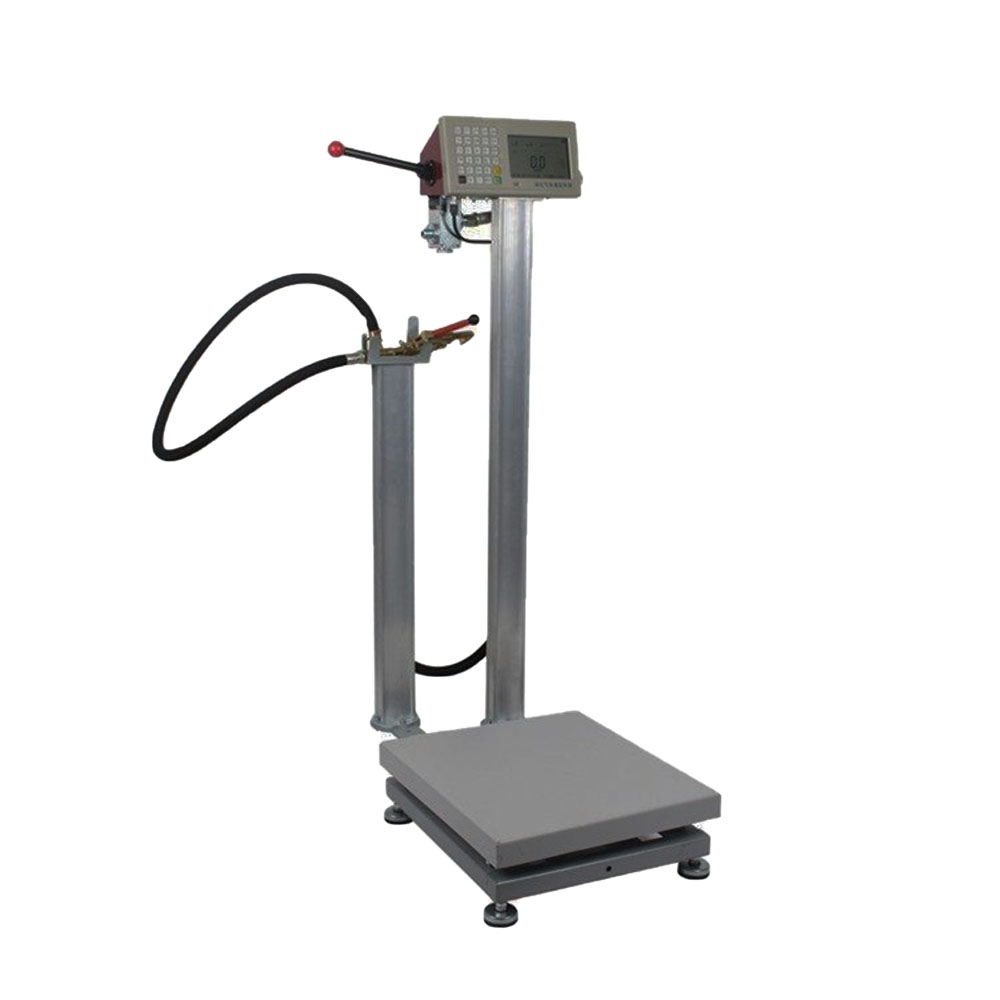

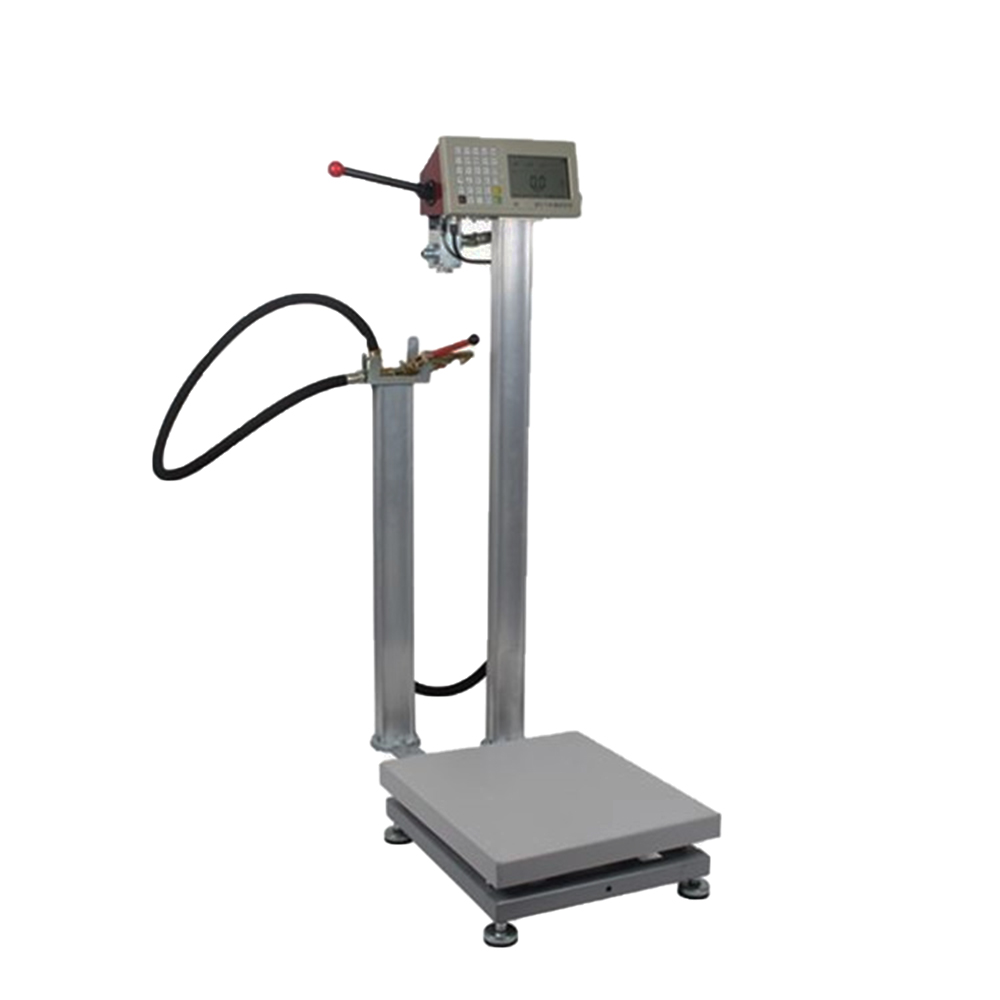

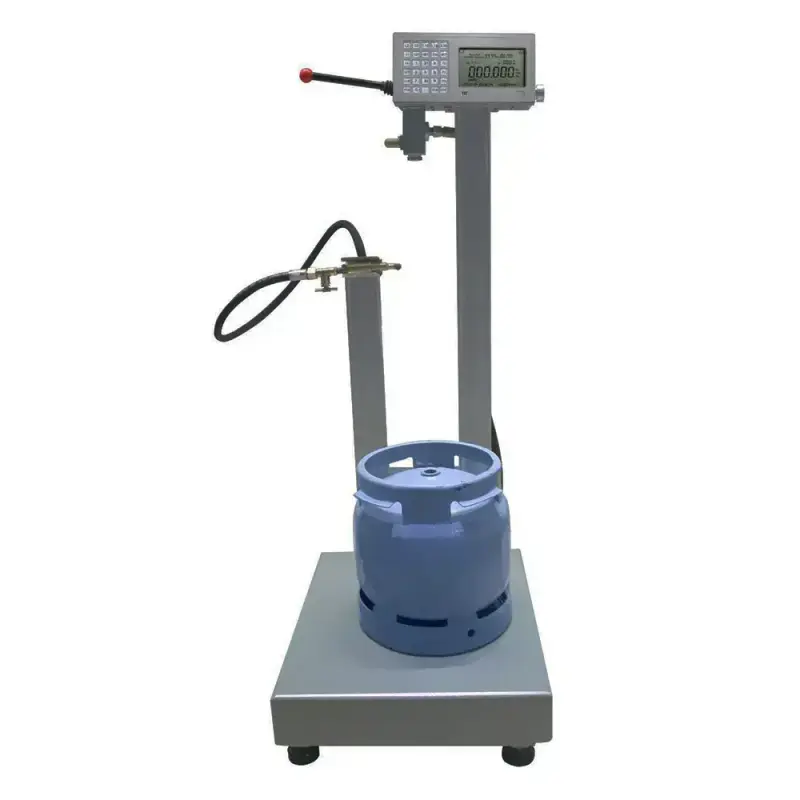

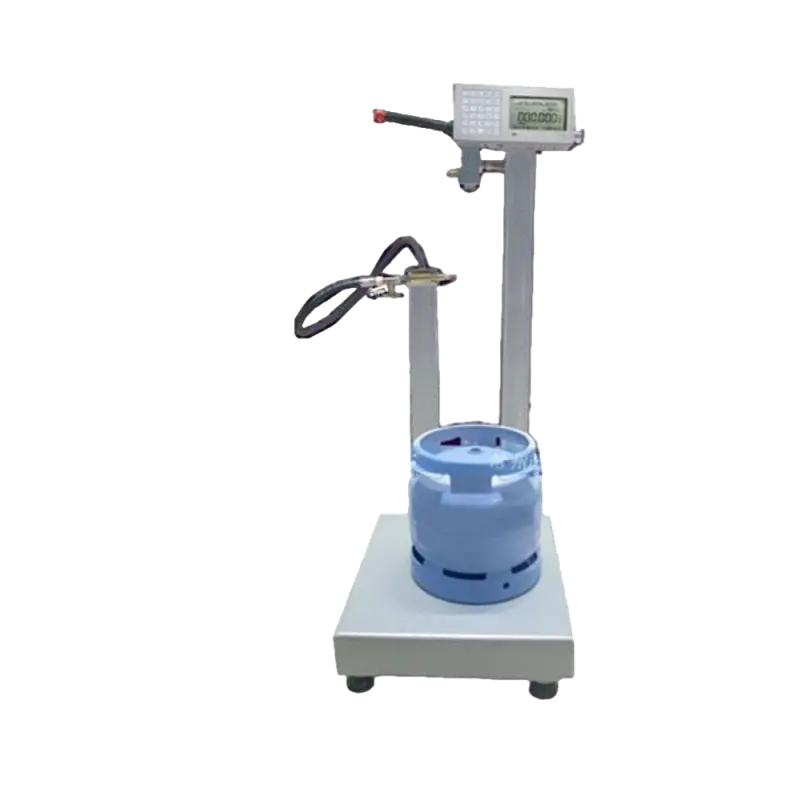

It is an electrically driven automatic filling machine with an integrated scale (model/name: sldb) designed for filling gas cylinders and similar vessels, primarily for chemical and industrial applications.

The machine supports fill weights from 2 kg up to 48 kg and a rated load capacity of up to 120 kg.

The filling accuracy is specified as Class 3. For critical applications, request calibration/certification details from the supplier.

Power supply is compatible with 110V–220V at 50 Hz. The unit is electrically driven and the listed nominal voltage is 220V; confirm site compatibility before purchase.

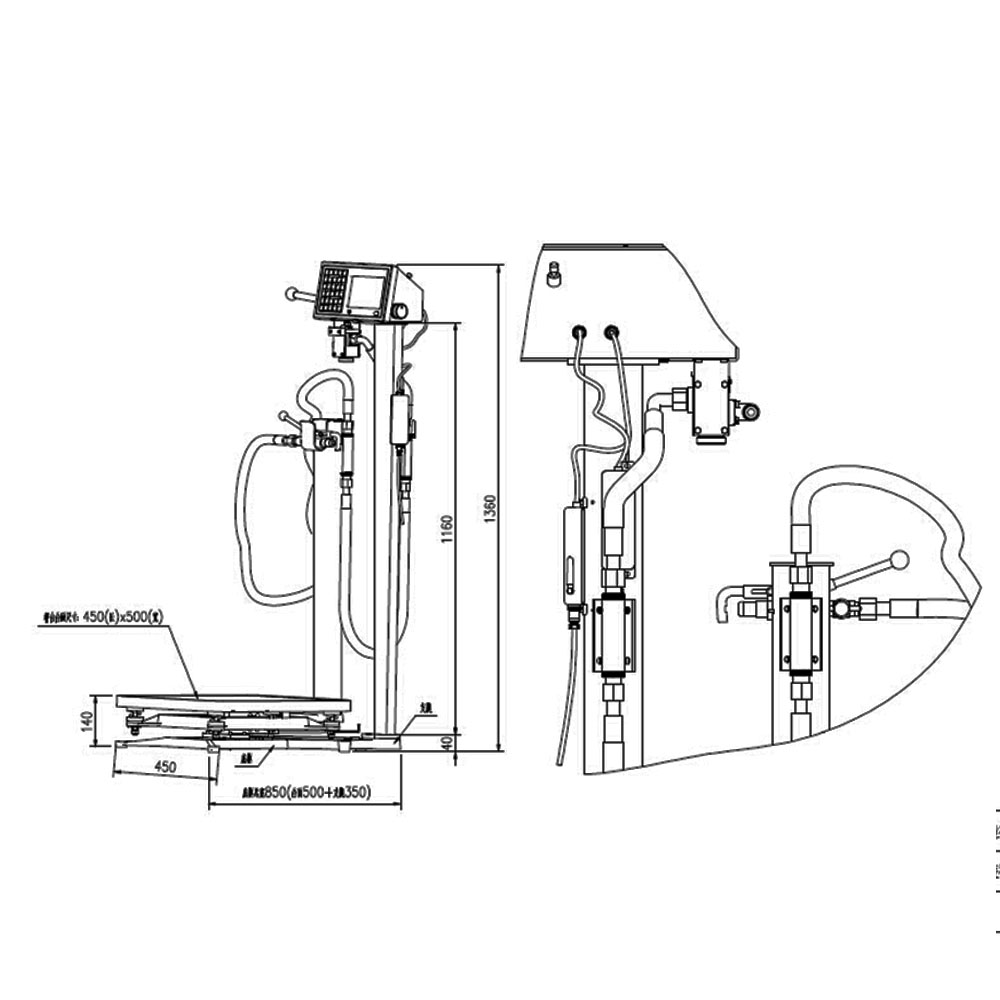

Dimensions are 480 mm (L) × 800 mm (W) × 1380 mm (H) and the machine weight is approximately 70 kg.

It is intended for manufacturing plants, construction works, energy & mining sectors and is commonly used in chemical applications where controlled cylinder filling is required.

Yes — the machine is an automatic grade model and is marketed as easy to operate; basic operator training is recommended for safe and accurate use.

The machine comes with a 1-year warranty. According to the product information, after-warranty service is not provided by default; contact the manufacturer or vendor for service options.

The machine is packaged in a wooden case with wood packaging material for secure transport.

The product listing indicates that a machinery test report and video outgoing-inspection are not available, and there is no separate warranty listed for core components. Buyers should request any available documentation from the seller.

The machine supports filled weights between 2–48 kg and an overall rated load up to 120 kg, so it can accommodate many common cylinder sizes. Confirm specific cylinder dimensions and connection fittings with the vendor before purchase.

Regular visual inspections, cleaning, periodic calibration of the scale, checking fittings and seals, and following the manufacturer's maintenance schedule are recommended. Contact the supplier for detailed maintenance instructions and spare parts.

The product is manufactured in Fujian, China, and the brand name listed is Luckystar.

Specific safety features are not listed in the product description. Follow standard gas-cylinder filling safety protocols, use appropriate PPE, ensure proper ventilation, and request the machine's safety and operating manual from the seller.

Contact the manufacturer or authorized distributor to request detailed technical specifications, calibration/certification documents, safety manuals, spare parts availability, and pricing. Provide your intended gas type and cylinder specs so they can confirm compatibility.
