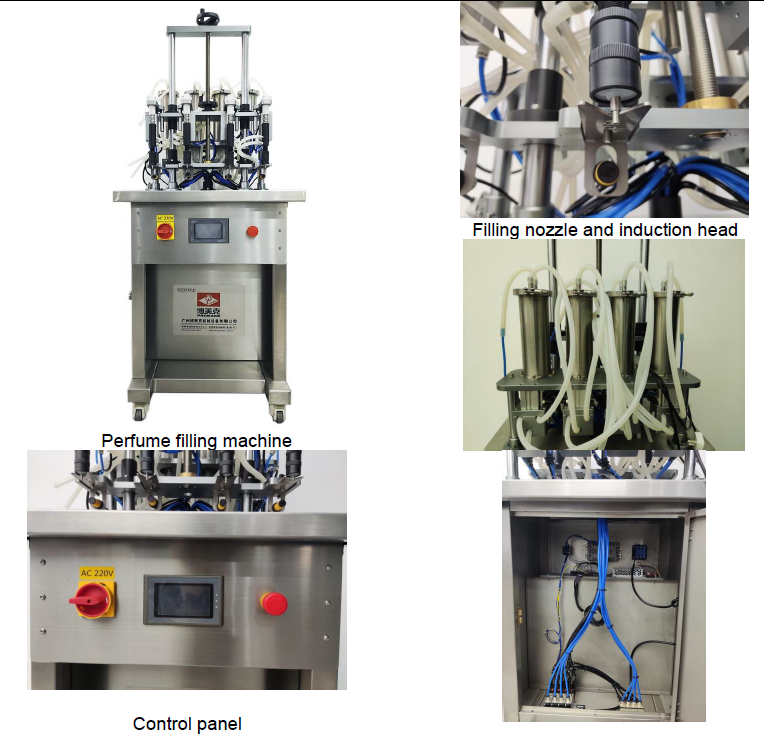

Industrial 4 heads Perfume Filling Machine

SKU: 1600788603099
Category: Manufacturing Machinery

1) Negative pressure filling, vacuum bubbling to avoid air bubbles remaining in thebottle during the filling process;2) PLC touch screen contro; Electric eye induction filling;3) Filling head：4 Head ;Air source pressure: 0.5-0.8MPa;4) Dimensions: 700*500*1700mm5) Power...

R93,199

Quantity

Contact Support

Asset Finance Available

Explore funding with Afrimart's partners. Subject to provider approval.

Check Funding Options

Section:: Machinery
Category:: Manufacturing Machinery
SKU:: 1600788603099

Sold by Afrimart Online

Afrimart Online

Welcome to Afrimart Online, the premier destination offering an extensive range of products and streamlined services tailored to optimize your cross-border import procurement process. Our comprehensive platform serves as...

B21, China Town Mall, Midrand

011 805 0386

View Store

Delivery & Shipping

Estimated delivery

20 Jan, 2027

Delivery timing is confirmed with your order.

Learn more about our Shipping Policy

Shop with Confidence

Shipping
Information Returns
Policy Product
Support

Product Description

1) Negative pressure filling, vacuum bubbling to avoid air bubbles remaining in the
bottle during the filling process;
2) PLC touch screen contro; Electric eye induction filling;
3) Filling head：4 Head ;Air source pressure: 0.5-0.8MPa;
4) Dimensions: 700*500*1700mm
5) Power Supply: 240V AC / 50Hz,single phase.

Performance profile：
This machine adopts full pneumatic control, especially suitable for high bubble and bottle volume irregular filling products. The design concept of the vacuum filling machine designed by our company is: through the pressure of the filling head, the vacuum generator achieves a local sealing environment in the liquid return bottle and the bottle to be filled, generating a local vacuum (negative pressure). Filling is achieved by vacuum suction. The company can according to the customer's bottle type, through the actual debugging, to achieve the ideal filling speed and effect, is the ideal choice model.

Working principle：
The working principle of vacuum filling machine (self-discharging type) is to connect the air source. Place the bottle to be filled into the mold directly below the filling head and seal it with the filling head. At this time, the CAM opens the mechanical valve, and the vacuum bottle valve is closed and the suction valve is opened, so that the vacuum generator produces vacuum (negative pressure). Forming vacuum environment system (vacuum bottle - filling head - filling bottle - filling head silicone tube). Vacuum suction fills the bottle with material. When the material inside the bottle rises to the height of the outer casing of the filling head. Because the vacuum suction through the outer sleeve, the bottle material sucked into the vacuum bottle so that the bottle material always maintain a certain height until the filling bottle is removed. The mechanical valve closes and the vacuum generator stops producing vacuum. Suction tube closed. The vacuum bottle valve is opened and the material in the vacuum bottle flows into the barrel due to the action of gravity to complete a filling cycle. Filling quantity is filled by time.

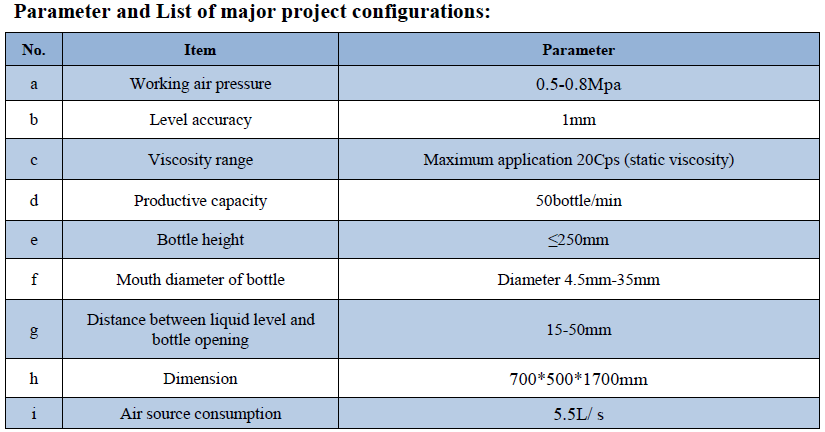

Filling specs_1719312227.png

Frequently Asked Questions

What is the main advantage of using the Industrial 4 heads Perfume Filling Machine?

The main advantage is its negative pressure filling system, which prevents air bubbles from remaining in the bottle during the filling process, ensuring a high-quality fill.

How does the PLC touch screen control work?

The PLC touch screen control allows for easy operation and monitoring of the filling process, enabling users to set specific parameters and adjustments with a user-friendly interface.

What type of products is this machine suitable for?

This machine is especially suitable for high bubble and irregular volume filling products, making it ideal for various types of perfumes and liquid cosmetics.

What are the dimensions of the machine?

The dimensions of the Industrial 4 heads Perfume Filling Machine are 700 mm in width, 500 mm in depth, and 1700 mm in height.

What power supply does the machine require?

The machine requires a power supply of 240V AC / 50Hz, single phase.

How does the vacuum filling process work?

The vacuum filling process involves creating a local vacuum environment that allows for suction filling. This is achieved through a vacuum generator connected to the filling head, which fills the bottle by drawing liquid from a vacuum bottle.

What is the air source pressure needed for operation?

The air source pressure required for the machine to operate effectively is between 0.5 to 0.8 MPa.

Can the filling speed be adjusted?

Yes, the filling speed can be adjusted according to the customer's specific bottle type and through actual debugging to achieve ideal filling performance.

What maintenance is required for this filling machine?

Regular maintenance includes cleaning the filling heads, checking air pressure, and ensuring that the PLC and electrical components are functioning properly to prevent downtime.

Is the machine suitable for small production runs?

Yes, the Industrial 4 heads Perfume Filling Machine is versatile and can be used for both small and large production runs, depending on the filling requirements.

What is the filling quantity based on?

The filling quantity is controlled by time, allowing precise filling according to the desired volume for each product.

Is operator training provided for this machine?

Yes, training is typically provided to ensure that operators understand how to use the PLC control system and maintain the machine effectively.

What kind of bottles can this machine accommodate?

The machine can accommodate various bottle shapes and sizes, and it can be customized during the initial setup to work with the customer's specific bottle type.

How long does it take to set up the machine for a new product?

Setup time can vary depending on the complexity of the product and bottle type, but our technicians typically aim to complete the setup efficiently to minimize downtime.

What safety features are included in the machine?

The machine includes safety features such as emergency stop buttons, protective covers, and sensors to ensure safe operation during the filling process.
