A fully hydraulic rope core drilling rig built for borehole drilling, soil sampling and core extraction. It combines a 75kW Yuchai engine, hydraulic winch, adjustable drilling angl...

Business ROI overview Labelled 3D sketch Full technical specs Engineered quotation

View Full Solution for Packaged Water Treatment Plants & Borehole Systems

Fully Hydraulic Rope Core Drilling Rig

Introducing the HDG-400 fully hydraulic rope core drilling rig – the ultimate solution for conquering even the toughest drilling challenges. With its powerful 75kW Yuchai engine, versatile drilling angle, compact transportation footprint, and robust track options, this rig is designed to deliver maximum torque and performance in any terrain.

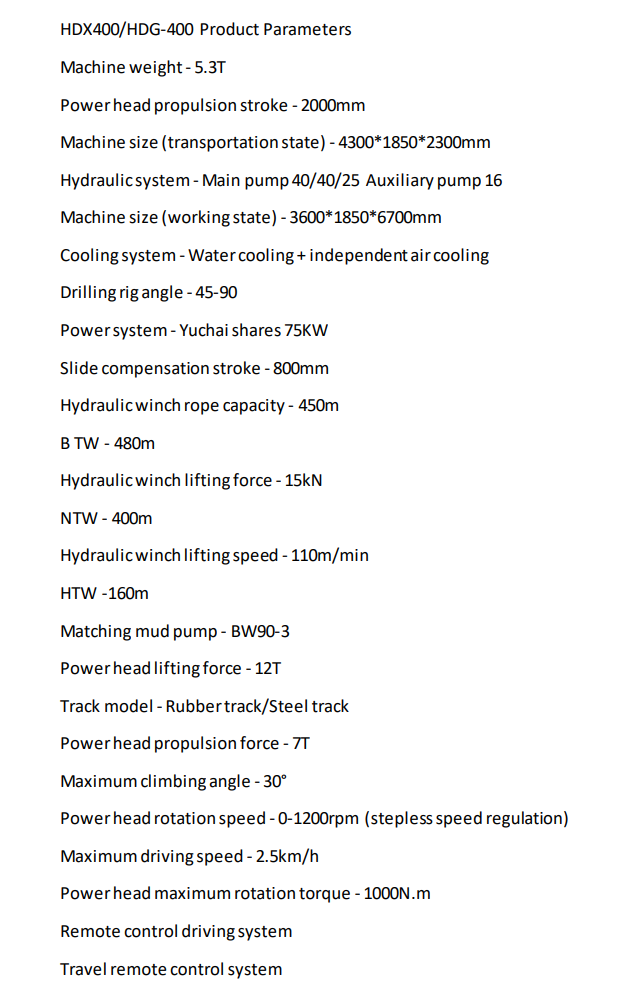

Specifications:

Attribute	Details
Engine	75kW Yuchai
Winch	Hydraulic, 450m rope capacity, 15kN lifting force
Drilling Angle	45-90 degrees
Transportation Footprint	4.3m x 1.85m x 2.3m
Track Options	Robust rubber or steel

Key Features:

-Powerful 75kW Yuchai engine for maximum torque and performance

-Hydraulic winch with 450m rope capacity and 15kN lifting force

-Versatile 45-90 degree drilling angle for diverse job site requirements

-Compact 4.3m x 1.85m x 2.3m transportation footprint for easy mobility

-Robust rubber or steel track options for optimal traction in any terrain

Applications:

Borehole drilling, Soil sampling & Core extraction

Product Info Gallery

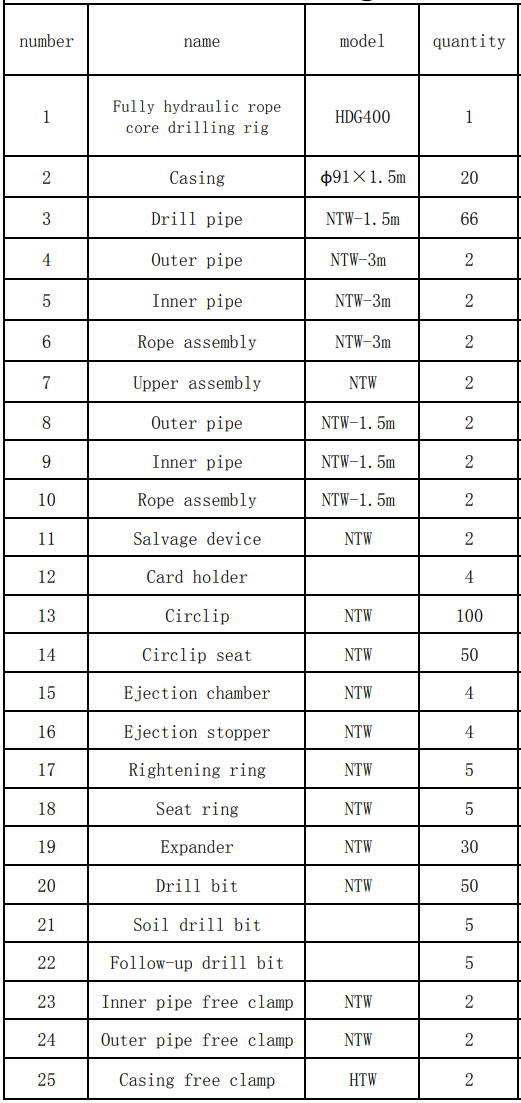

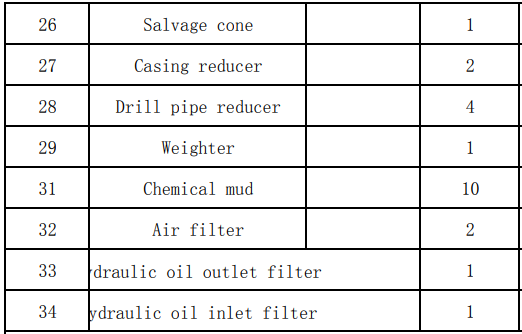

Configuration Table:

Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 11 Jan, 2027, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.

1. What is the engine power of the Fully Hydraulic Rope Core Drilling Rig SLD?

The Fully Hydraulic Rope Core Drilling Rig SLD is powered by a 75kW Yuchai engine, providing maximum torque and performance.

2. What is the lifting capacity of the hydraulic winch?

The hydraulic winch has a rope capacity of 450 meters and a lifting force of 15kN.

3. What are the possible drilling angles for this rig?

The drilling angle for the Fully Hydraulic Rope Core Drilling Rig SLD can be adjusted between 45 to 90 degrees.

4. What are the dimensions of the rig for transportation?

The transportation footprint of the rig is compact, measuring 4.3m x 1.85m x 2.3m.

5. What track options are available for this drilling rig?

The Fully Hydraulic Rope Core Drilling Rig SLD offers robust track options, including both rubber and steel tracks for optimal traction.

6. What applications is this drilling rig suitable for?

This rig is ideal for borehole drilling, soil sampling, and core extraction.

7. Is the rig suitable for rough terrain?

Yes, the rig is designed to perform effectively in various terrains, thanks to its powerful engine and track options.

8. How does the hydraulic system enhance performance?

The hydraulic system allows for superior lifting capabilities and torque, making it easier to handle tough drilling tasks.

9. What is the weight of the Fully Hydraulic Rope Core Drilling Rig SLD?

The weight of the rig is not specified in the provided information. Please consult the manufacturer for exact weight details.

10. Can the rig be used for deep drilling?

Yes, with a rope capacity of 450m, the rig is suitable for deep drilling applications.

11. What maintenance is required for the hydraulic system?

Regular inspections of hydraulic fluid levels, checking for leaks, and ensuring all components are functioning correctly are recommended for maintenance.
