Detall ESD antistatic electrical lab work table
Product Description
Product Introduction

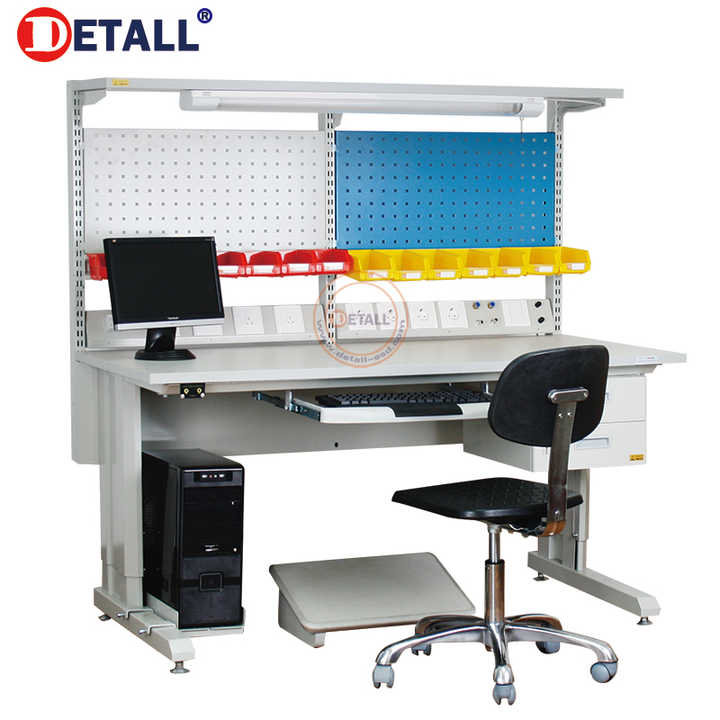

The towerline ESD workbench is a specific type of workbench which adopt the structure of table together with the double slotted Upright frame supporter . it is able to allow the work surface or the optional modular accessories to be mounted on either side of both the single sided and double sided station, and adjustable on workstation along column.
ESD Towerline workbench is suitable for electronics and semiconductor industries , military-industrial , aerospace sectors, contract manufacturers, research and educational organizations and telecommunication industries.
| SPECIFICATIONS FOR Detall ESD antistatic electrical lab work table | |||
| Size | length | mm | 1200/1530 |
| Deepth | mm | 600/750 | |
| Height | mm | 785mm (table top to ground) 760-1120 (adjustable type) | |
| Main performance parameters | ESD performance parameters | ohm (test input 100V, ) | metal surface: 105 - 1010 Laminate surface: 106 - 1010 |
| Static weight loading | KG | 300kg - light duty type 500kg - standard duty type 800kg - heavy duty type | |
In order to increase the functions and storage space of the workbench, Detall design the workbench's system be divided into different structure, maximum the numbers and variety of functional accessories, the design maximum extends the functions of the workbench.
The workbench is divided into1. 2 or 3 column by the double slotted Upright frame supporter to add the max quantity of accessories on the columns.
| High Standard of Detall ESD antistatic electrical lab work table - CE certificated | |
| EN ISO 12100:2010 | Safety of machinery - general principles for design - risk assessment and risk reducion |
| EN 60204-1:2006 +A1:2009 +AC:2010 | Safety of machinery - Electrical Equipment of machnies - part 1: Gerneral requirments |
| IEC 61340-5-1:2007 | Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena |
| Electrical Properties of Detall ESD antistatic electrical lab work table | ||
| Test | Relative Humidity | Electrical Results |
| Point to point resistance | 60%-40% | 106 to 1 x 107 ohms |
| 40%-20% | 107 to 1 x 108 ohms | |
| 20%-10% | 108 to 1 x 1010 ohms | |
| Point to earth resistance | 60%-40% | 106 to 1 x 107 ohms |
| 40%-20% | 107 to 1 x 108 ohms | |
| 20%-10% | 108 to 1 x 1010 ohms | |
| Volume Resistance | 60%-30% | 107 to 1 x 108 ohms |
| 30%-10% | 108 to 1 x 1010 ohms | |
| Static Decay | 50% | 0.01sec |
| 10% | 0.02sec | |
| 1. Per EOS/ESD - S 4.1 2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) 3. FTMS 101C, Method 4046 | ||
No approved technical specifications are available yet. Please refer to the product description or contact our team.
The primary function of the ESD Antistatic Electrical Lab Work Table is to provide a safe work surface for electronics and semiconductor industries, ensuring protection against electrostatic discharge (ESD) while working on sensitive electronic components.
The ESD workbench comes in two sizes: 1200 mm or 1530 mm in length, 600 mm or 750 mm in depth, and has a height of 785 mm (fixed) or adjustable from 760 mm to 1120 mm.
The workbench has different weight capacities depending on the model: 300 kg for light-duty, 500 kg for standard-duty, and 800 kg for heavy-duty types.
Yes, the workbench features adjustable height settings ranging from 760 mm to 1120 mm to accommodate different user preferences.
This workbench is suitable for electronics and semiconductor industries, military-industrial, aerospace sectors, contract manufacturers, educational organizations, and telecommunication industries.
The ESD performance parameters for the metal surface range from 10^5 to 10^10 ohms, and for the laminate surface, from 10^6 to 10^10 ohms, tested at an input of 100V.
Yes, the Detall ESD Antistatic Electrical Lab Work Table is CE certified and complies with EN ISO 12100:2010 and IEC 61340-5-1:2007 standards.
Yes, the workbench features a modular design that allows for various accessories to be mounted on either side, maximizing functionality and storage space.
The static decay times for the workbench are 0.01 seconds at 50% humidity and 0.02 seconds at 10% humidity, ensuring rapid static discharge.
The workbench is designed with a robust structure using high-quality materials that meet safety and electrostatic discharge standards.
The workbench meets several safety standards, including EN 60204-1 for electrical equipment of machines and IEC 61340-5-1 for protection against electrostatic phenomena.
Yes, the ESD workbench is designed for easy assembly with clear instructions provided, making it user-friendly for setup.
The warranty period for the ESD Antistatic Electrical Lab Work Table typically ranges from 1 to 3 years, depending on the retailer. Please refer to the specific seller for details.
The height adjustment is recommended to be done when the table is not in use to ensure safety and stability during operation.
The workbench requires minimal maintenance, such as regular cleaning of the surface and checking the stability of the accessories to ensure optimal performance.
