The Digital C-arm X-ray Machine is a versatile and efficient imaging system designed for surgical and fluoroscopy applications. Ideal for medical professionals, this machine provides real-time imaging for a wide range of diagnostic and surgical procedures.
| Specification | ||
| Category | Items | Content |
| Electrical performance | High frequency inverter power supply | Power:5.0kW Main inverter frequency: 40 kHz |
| Perspective max rated capacity | Tube current 8 mA Tube voltage 120 kv | |
| Automatic fluoroscopy | tube voltage 40 kv~120kv,adjust automaticallytube current : 0.3mA~~4mA adjust automatically | |
| Manual fluoroscopy | tube voltage 40 kv~120kv, continuous tube current : 0.3mA~~4mA continuous | |
| Pulse fluoroscopy | tube voltage 40 kv~120kv, continuous tube current : 4.1mA~~8mA continuous | |
| Photography tube voltage, mA, mAs | 40~120KV, 20~100mA, 1~180mAs | |
| Plate holder size | 200mmx250mm(8”x10”) or 250mmx300mm(10”x12”) | |
| X-ray tube | X-ray tube special for high frequency | large focus:1.5, mall focus :0.3 Anode thermal capacity: 35kJ (47 kHu) Tube thermal capacity: 650kJ (867 kHu) |

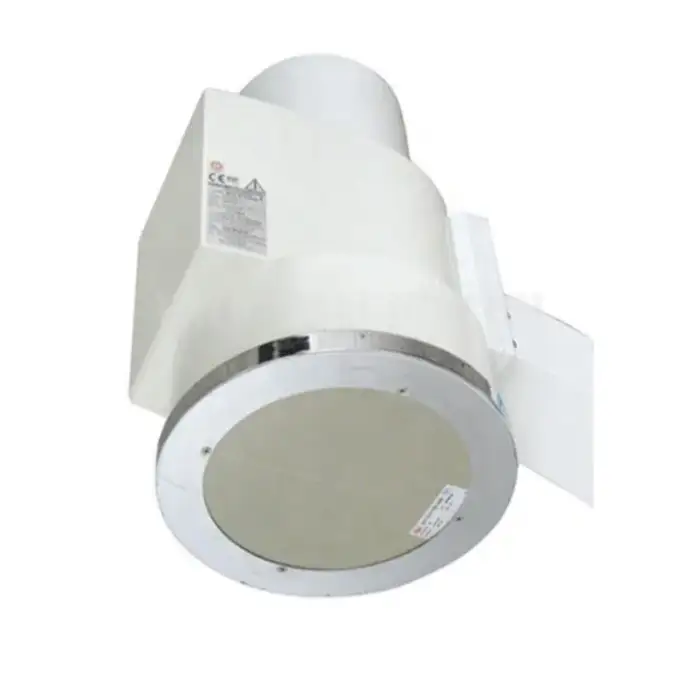

| Imaging system | Image intensifier | Imported 9 inch image intensifier |
| CCD photography | Imported ultra-low illumination CCD radiography | |
| Monitor | Center definition is 1000 lines and frequency for picture refresh is 75Hz. | |
| CCU (central control) | HD progressive output, continuous adjustable recursion, many images storage, upright image, horizontal image, positive & negative image, image patching, LIH(last image freeze), OSD (monitor display). | |
| Structure and performance | Direction wheel and main wheel | Direction wheel can rotate in any direction, and main wheel can rotate in ±90°. |
| C-arm | The up and down electrical stroke of pillar is 400mm. Monitor rotating angles ≥300° Forward and backward movement:200mm; Revolution around horizontal axis : ±180°; Revolution around vertical axis: ±15°, distance from focus to screen: 960 mm; C-arm open distance: 760mm C-arm arc depth: 640mm; Slipping on orbit : 120°(+90°~-30°) |
The Digital C-arm X-ray Machine is an essential tool for medical imaging, providing high-quality fluoroscopy and X-ray capabilities. Its advanced features, portability, and reliable performance make it a valuable asset in surgical and diagnostic settings.
Orthopedics: restore bone translocation, reset, fixing
Surgery: taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, interventional treatment, some of angiography and local photography etc.
1. New integrated design of TV system and mainframe, it does not need to connect electric cable, so the operation is more
convenient.
2. High-quality combined HF-HV X-ray generator with our high voltage cable, it reduces loss and the quality of x-ray and image are good.
3. Electric rotating lead piece iris beam limiting device, it can satisfy multi-angle and multi-direction anatomical display.
4. The machine adopts imported image intensifier, matching with high-definition and high-resolution CCD and progressive scan display system, which matches with image system better.
5. With the perspective KV, MA automatic tracking feature, the image brightness and definition are automatically set at optimal function.
6. Graphical colorfully LCD touchable screen console interface, the operation is convenient and intelligent.
7. Unique hand-held remote controller, the doctor can operate it a far distance, so it’s more convenient.
| Configurations | |
| New integrated C-arm mainframe | one set |
| One set Combined high-frequency high-voltage X-ray generator and high-frequency power supply (5.0kW, 40 kHz, 120kV) | one set |
| Imported 9 inch image intensifier | one set |
| Imported ultra-low illumination CCD radiography | one set |
| High-definition progressive output CCU control system | one set |
| High-definition progressive output CCU control system | one set |
| Imported dense grain grids | one set |
| Electrical adjustable beam limiting device | one set |
| 14-inch high-definition medical dedicated monitor | one set |
| Unique hand-held controller | one set |
Details Images
| New integrated C-arm mainframe | one set |
|---|---|
| One set Combined high-frequency high-voltage X-ray generator and high-frequency power supply (5.0kW, 40 kHz, 120kV) | one set |
| Imported 9 inch image intensifier | one set |
| Imported ultra-low illumination CCD radiography | one set |
| High-definition progressive output CCU control system | one set |
| Imported dense grain grids | one set |
| Electrical adjustable beam limiting device | one set |
| 14-inch high-definition medical dedicated monitor | one set |
| Unique hand-held controller | one set |
| High-Quality Imaging | The tube voltage ranges from 40kV to 120kV for both manual and automatic fluoroscopy, ensuring detailed and accurate imaging during procedures. |
| Powerful Performance | Equipped with a 5.0kW power supply for reliable and consistent performance throughout medical operations. |
| Advanced Fluoroscopy Modes | Features automatic, manual, and pulse fluoroscopy modes, providing flexibility for various imaging needs. |
| X-ray Tube for High-Frequency | Includes a special high-frequency X-ray tube with a 1.5 focus and a small focus size of 0.3 for optimal imaging. |
| Photography Range | Tube voltage and current adjustable from 40-120kV and 20-100mA, allowing for precise control of exposure settings. |
| Plate Holder Size | Includes a 200mm x 250mm (8"x10") plate holder for convenient image capture. |
| Compact and Efficient | Designed for mobile and surgical environments, offering portability and ease of use. |
| CE Certified | Meets international safety and quality standards for medical devices. |
| Orthopedics | restore bone translocation, reset, fixing |
| Surgery | taking foreign bodies out of the body, cardiac catheterization, implantable pacemakers, interventional treatment, some of angiography and local photography etc. |
The Digital C-arm X-ray Machine is an advanced imaging system designed for real-time surgical and fluoroscopy applications, providing high-quality imaging for various medical procedures.
Key features include high-quality imaging with adjustable tube voltage from 40kV to 120kV, multiple fluoroscopy modes, a high-frequency X-ray tube, and a compact design for mobile use.
Yes, it is versatile and suitable for various surgical procedures including orthopedics, cardiac catheterization, and interventional treatments.
The machine is equipped with a powerful 5.0kW high-frequency inverter power supply for reliable performance.
The plate holder size is 200mm x 250mm (8"x10") and can also accommodate a 250mm x 300mm (10"x12") size.
In automatic mode, the tube voltage automatically adjusts between 40kV and 120kV, and the tube current can range from 0.3mA to 4mA, ensuring optimal imaging conditions.
The Digital C-arm X-ray Machine is CE certified, meeting international safety and quality standards for medical devices.
Yes, the machine is designed for portability and is suitable for use in various surgical and diagnostic environments.
The machine features a 14-inch high-definition medical dedicated monitor for clear image display.
Yes, a unique hand-held remote controller is included, allowing doctors to operate the machine from a distance.
It incorporates an imported 9-inch image intensifier and a high-definition ultra-low illumination CCD for superior imaging quality.
The high-frequency X-ray tube provides improved image quality, reduces patient exposure to radiation, and enhances the overall efficiency of imaging.
The interface features a graphical color LCD touch screen console, making operation convenient and user-friendly.
The machine has an electric rotating lead piece iris beam limiting device that allows for multi-angle and multi-directional anatomical displays.
The imaging system has a picture refresh frequency of 75Hz, ensuring smooth and clear image display.
