CNC Band Saw Machine

0 Customer Reviews

Asset finance available

Do you want funding for this equipment?

Afrimart can connect you with trusted funding partners who specialise in asset finance for businesses like yours. Compare options and apply in minutes — final approval is subject to provider review.

Check funding options Secure & no obligation

Model:

GHS4260

Add To Wishlist Share to Social

Section : Machinery
Category : CNC industrial Machinery
SKU : 1600512264802

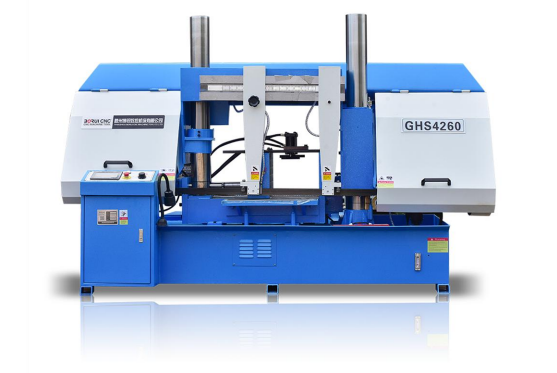

CNC Band Saw Machine

For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive

Key Features

1. extremely rigid dual-column cast-iron construction

2. PLC control for a fully automated sawing process

3. easy to use touchscreen monitor for easy and quick recording of saw parameters

4. hydraulic tool clamping included with standard equipment

5. the feed unit's linear measuring system ensures long-term maximum accuracy

6. feed of the torsion-proof saw frame is infinitely variable via a hydraulic throttle valve

7. extra rigid, adjustable saw blade guide

8. hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment Application: For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

Specifications:

Model	GHS4250	GHS4260
Cutting capacity (mm)	500 - 500 X 500	600 - 600 X 600
Blade speed(m/min)	27、45、69	27、45、69
Blade size(mm)	5800 X 41 X 1.3	6640 X 67 X 1.6
Main motor Power(Kw)	5.5	5.5
Hydraulic motor power(kw)	1.5	1.5
Cooling pump(w)	90	125
Worktable Clamping type	Hydraulic automatically	Hydraulic automatically
Main driving struction	Turbine drive	Turbine drive
Feeding type	Hydraulic automatically	Hydraulic automatically
Machine overall size (mm)	2780 X 2250 X 2000	3150 X 2700 X 2100
Machine weight	2400KG	3000KG

Product Info Gallery

Shipping Timeframes: All orders are processed within 2-5 business days (excluding weekends and holidays). After your order has been processed, the estimated delivery time is before 14 Dec, 2026, depending on customs, Please note that due to high demand, some items may experience longer shipping times, which will be communicated at order confirmation email.
Order Processing Time: Please allow 2-5 business days for us to process your order before it is shipped . Orders placed after 16:00 on Fridays, or during weekends and public holidays, will begin processing on the next business day. Processing times may be extended during peak seasons or sales events.
Manufacturing Time: Some products needs manufacturing time, the manufacturing process will take approximately 10-30 business days depending on the product. This timeframe may vary depending on the complexity of the product and current demand. but this will be communicated with you during order confirmation.
Returns and Exchanges: We offer a 30-day return policy for most items. If you are not completely satisfied with your purchase, you may return it within 30 days of receipt for a refund or exchange. Items must be unused, in their original packaging, and accompanied by proof of purchase. Return shipping costs are the responsibility of the customer, unless the item was damaged or defective upon arrival.

1. What is the cutting capacity of the CNC Band Saw Machine?

The CNC Band Saw Machine has a cutting capacity of 500 mm x 500 mm for the GHS4250 model and 600 mm x 600 mm for the GHS4260 model.

2. What types of materials can the CNC Band Saw Machine cut?

The CNC Band Saw Machine is designed for high precision metal cutting, making it suitable for various metals commonly used in industrial and mining applications.

3. How does the PLC control benefit the sawing process?

The PLC control allows for a fully automated sawing process, which enhances precision, efficiency, and reduces the need for manual intervention.

4. Is the CNC Band Saw Machine easy to operate?

Yes, the machine features an easy-to-use touchscreen monitor that simplifies the recording of saw parameters, making operation straightforward even for beginners.

5. What is the power rating of the main motor?

Both models of the CNC Band Saw Machine, GHS4250 and GHS4260, are equipped with a main motor power of 5.5 kW.

6. What type of clamping system does the machine use?

The CNC Band Saw Machine utilizes hydraulic workpiece clamping with clamping pressure control, which is included in the standard equipment.

7. What is the significance of the torsion-proof saw frame?

The torsion-proof saw frame provides additional rigidity and stability, ensuring that the cutting process maintains high precision over time.

8. Can the blade speed be adjusted?

Yes, the blade speed can be adjusted to 27, 45, or 69 m/min, allowing for flexibility depending on the material being cut.

9. What is the weight of the GHS4260 model?

The GHS4260 model has a weight of 3000 KG.

10. Does the machine include a cooling system?

Yes, the CNC Band Saw Machine includes a cooling pump, with power ratings of 90 W for the GHS4250 model and 125 W for the GHS4260 model.

11. What is the overall size of the GHS4250 model?

The GHS4250 model has an overall size of 2780 mm x 2250 mm x 2000 mm.

12. Is training available for operating the CNC Band Saw Machine?

Typically, manufacturers provide training resources or manuals to assist users in operating the CNC Band Saw Machine effectively.

13. What additional features are included with the standard equipment?

Standard equipment includes hydraulic tool clamping, clamping pressure control, and an adjustable saw blade guide.

14. What industries can benefit from using this machine?

The CNC Band Saw Machine is ideal for industrial and mining enterprises, as well as small workshops, due to its versatility in metal cutting applications.
