The Center Fanuc 4-axis Turning Center is a powerful machine designed for metal processing. It is perfect for creating precision parts with high efficiency. This turning center combines advanced technology with user-friendly features, making it an excellent choice for v...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

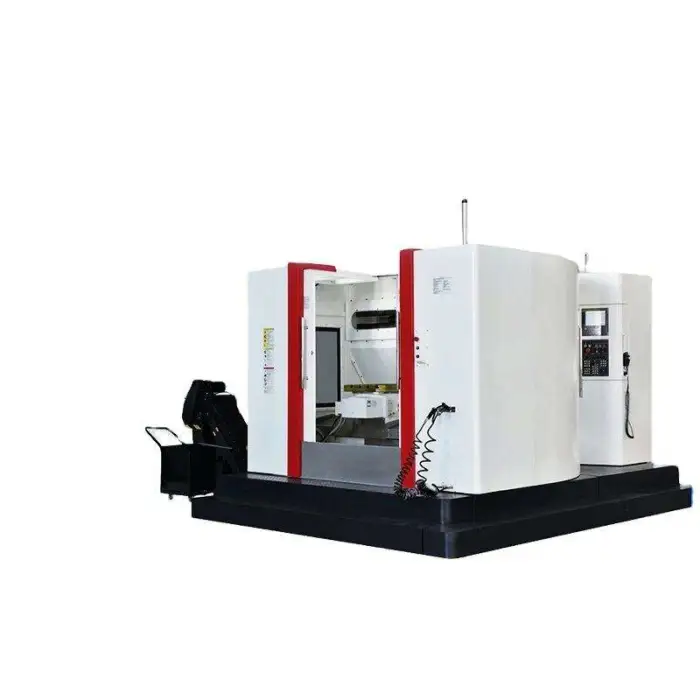

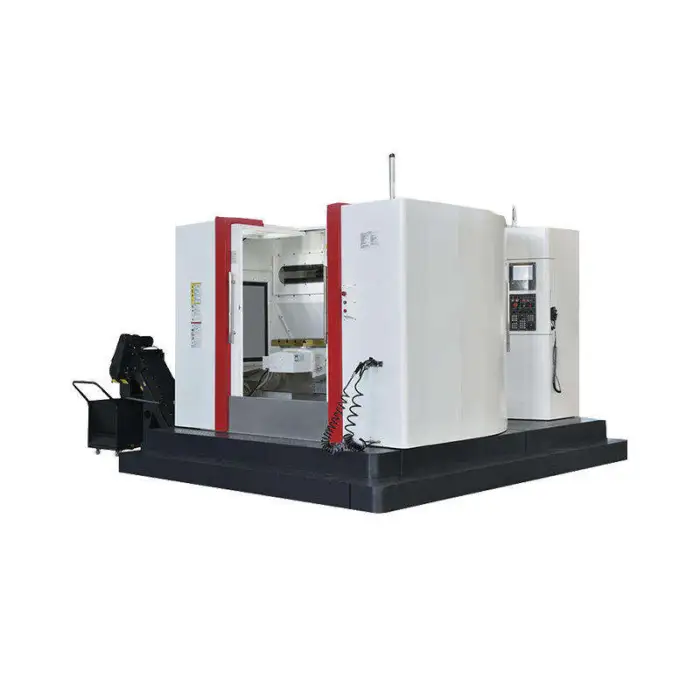

The Center Fanuc 4-axis Turning Center is a powerful machine designed for metal processing. It is perfect for creating precision parts with high efficiency. This turning center combines advanced technology with user-friendly features, making it an excellent choice for various machining tasks.
| Attribute | Details |
|---|---|
| CNC Control System | FANUC |
| Dimensions (L*W*H) | 4280*3000*2600 mm |
| Max. Table Load | 600 kg |
| Min. Time of Tool Change | 2 seconds |
| Number of Spindles | Single |
| Positioning Accuracy | ±0.015/300 mm |
| Spindle Speed Range | 0 - 6000 RPM |
| Rapid Feed Speed | 10 - 15000 mm/min |
| Repeatability (X/Y/Z) | ±0.01/300 mm |
| Spindle Taper | BT50 |
| Table Size | 500*500 mm |
| Table Travel (X) | 900 mm |
| Table Travel (Y) | 750 mm |
| Table Travel (Z) | 650 mm |
| Tool Magazine Capacity | 24, 32 |
| Voltage | 220 V, 380 V |
| Warranty | 1 Year |
| Weight | 8 tons |
| project | unit | HMC-500 | HMC-630 | HMC-800 | HMC-1000 |
| Table size | mm | 500*500 | 630*630 | 800*800 | 1000*1000 |
| Number of workstations | Standard single workbench, washable and interchangeable double workbench | ||||
| Table rotation | ° | 1°*360 | 1°*360 | 1°*360 | 1°*360 |
| Maximum load | kg | 600 | 1000 | 1500 | 2000 |
| X/Y/Z axis travel | mm | 900/730650 | 1000/350/750 | 1100/1000/950 | 1190/1020/1050 |
| Distance from the center of the spindle to the work surface | 110-860 | 110-960 | 20-1120 | 152-1172 | |
| Distance from the end face of the spindle to the center of the workbench | mm | 60-710 | 60-810 | 50-1000 | 50-1100 |
| Taper specifications (model/installation size) | mm | BT50/Ф190 | BT50/Ф190 | BT50/Ф190 | BT50/Ф190 |
| Maximum spindle speed | rpm | 6000 | 6000 | 6000 | 6000 |
| Three-axis cutting feed rate | mn/min | 10-15000 | 10-15000 | 10-15000 | 10-15000 |
| Three-axis fast movement X/Y/Z | m/min | 30 | 30 | 30 | 30 |
| Positioning accuracy | mm | ±0.015/300 | ±0.015/300 | ±0.015/300 | ±0.015/300 |
| Repeat positioning accuracy | mm | ±0.01/300 | ±0.01/300 | ±0.01/300 | ±0.01/300 |
| Spindle drive motor | kw | 15 | 15 | 18.5 | 22 |
| X/Y/Z drive motor | kw | 3/3/3 | 3/3/3 | 2003/3/4 | 2004/3/4 |
| Tool magazine capacity (optional) | put | 24/32 | 24/32 | 24/32 | 24/32 |
| Floor area (length*width*height) | mm | 4280/3000/2600 | 5900/3500/3563 | 5900/4600/3000 | 7875/4600/3405 |
| Weight of the whole machine (approximately) | T | 8 | 10 | 12 | 15 |
| Remarks | “T” type structure | “T” type structure | “T” type structure | “T” type structure | |
| CNC Control System | FANUC |
|---|---|
| Dimensions (L*W*H) | 4280*3000*2600 mm |
| Max. Table Load | 600 kg |
| Min. Time of Tool Change | 2 seconds |
| Number of Spindles | Single |
| Positioning Accuracy | ±0.015/300 mm |
| Spindle Speed Range | 0 - 6000 RPM |
| Rapid Feed Speed | 10 - 15000 mm/min |
| Repeatability (X/Y/Z) | ±0.01/300 mm |
| Spindle Taper | BT50 |
| Table Size | 500*500 mm |
| Table Travel (X) | 900 mm |
| Table Travel (Y) | 750 mm |
| Table Travel (Z) | 650 mm |
| Tool Magazine Capacity | 24, 32 |
| Voltage | 220 V, 380 V |
| Warranty | 1 Year |
| Weight | 8 tons |
The maximum spindle speed of the Center Fanuc 4-axis Turning Center is 6000 RPM.
The positioning accuracy of the Center Fanuc 4-axis Turning Center is ±0.015 mm over a distance of 300 mm.
The tool change time is just 2 seconds, making it highly efficient.
The Center Fanuc 4-axis Turning Center weighs approximately 8 tons.
The dimensions of the Center Fanuc 4-axis Turning Center are 4280 mm (length) x 3000 mm (width) x 2600 mm (height).
The maximum load capacity of the table is 600 kg.
The tool magazine can hold either 24 or 32 tools, depending on the configuration.
It is ideal for precision machining in the automotive and aerospace industries, as well as for job shops and prototyping tasks.
The Center Fanuc 4-axis Turning Center is available in 220 V and 380 V voltage options.
The rapid feed speed ranges from 10 to 15000 mm/min.
Yes, the Center Fanuc 4-axis Turning Center comes with a 1-year warranty for peace of mind.
The machine is equipped with a FANUC CNC control system.
The repeatability of the Center Fanuc 4-axis Turning Center is ±0.01 mm over a distance of 300 mm.
Yes, it is suitable for both small and medium duty metal processing tasks.
The table travel distances are 900 mm in the X-axis, 750 mm in the Y-axis, and 650 mm in the Z-axis.
