The CA6250 Horizontal Manual Universal Metal Turning Gap Bed Lathe Machine is a high-quality tool designed for precision metalworking. This lathe is perfect for both small and medium-duty tasks. It offers a range of features that make metal turning easy and efficient. W...
Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.

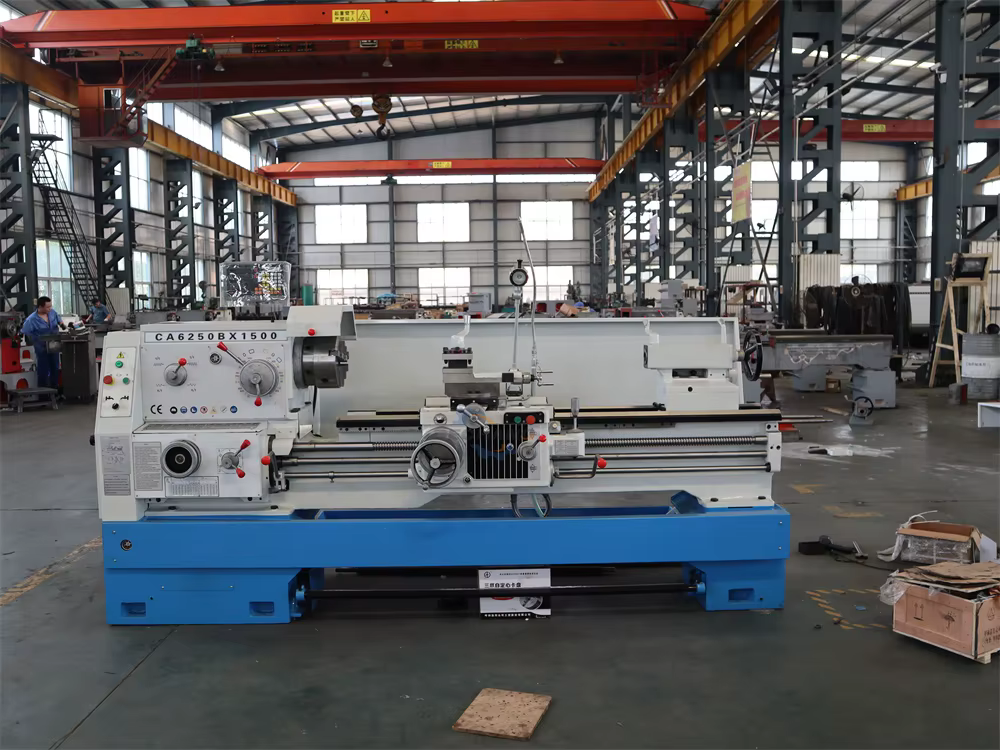

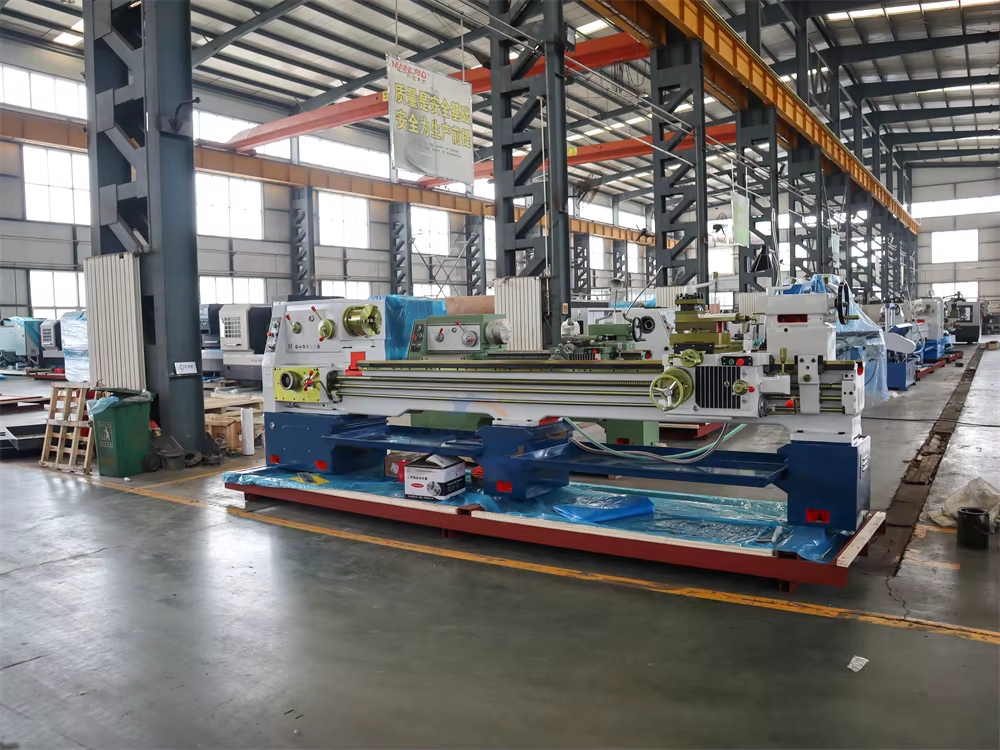

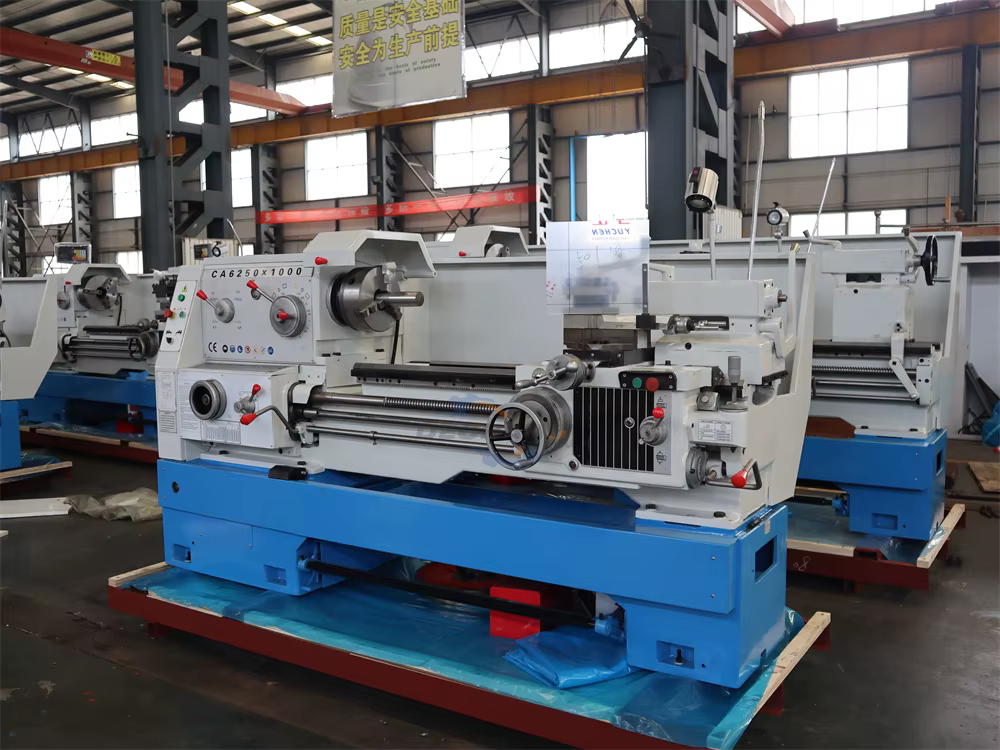

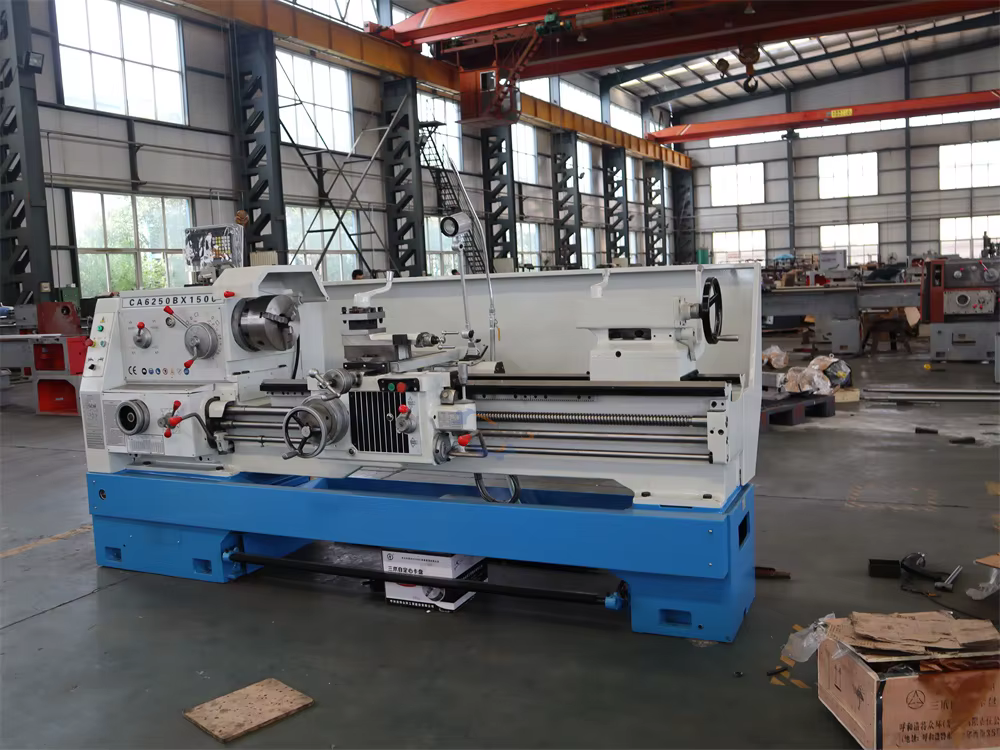

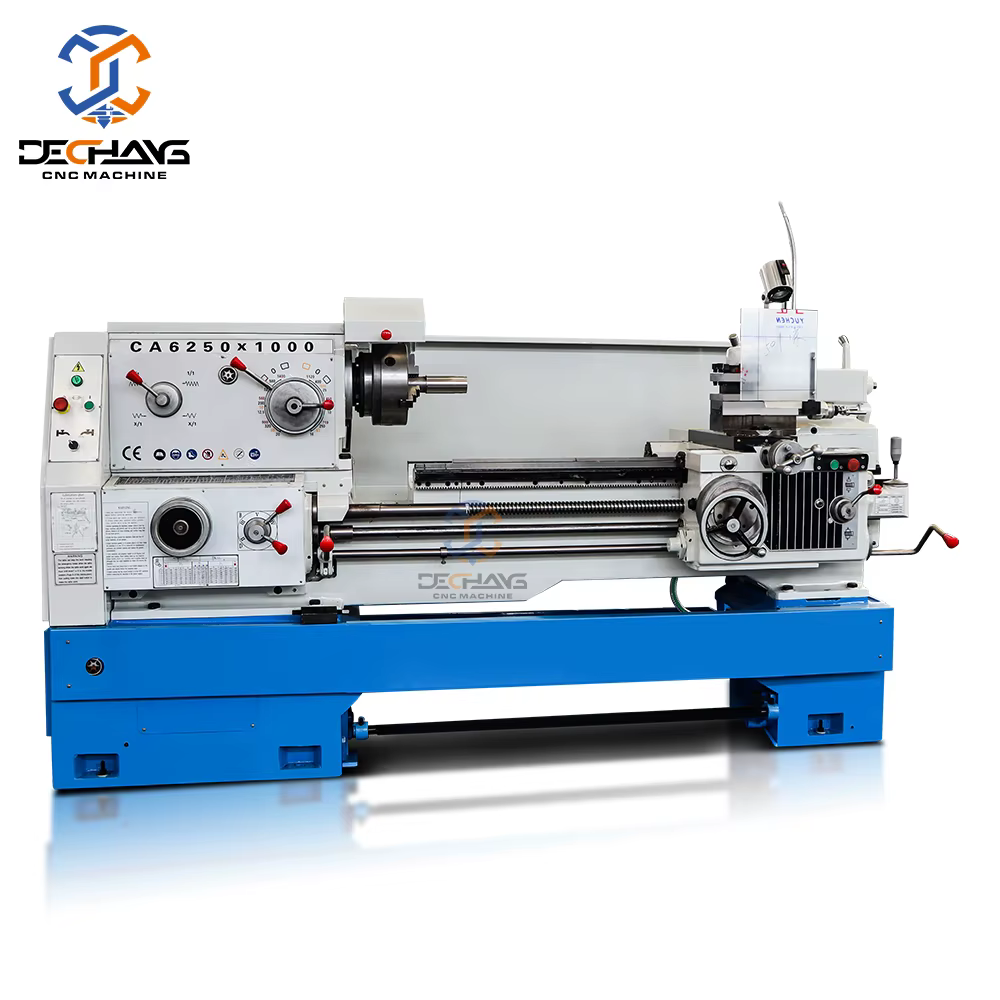

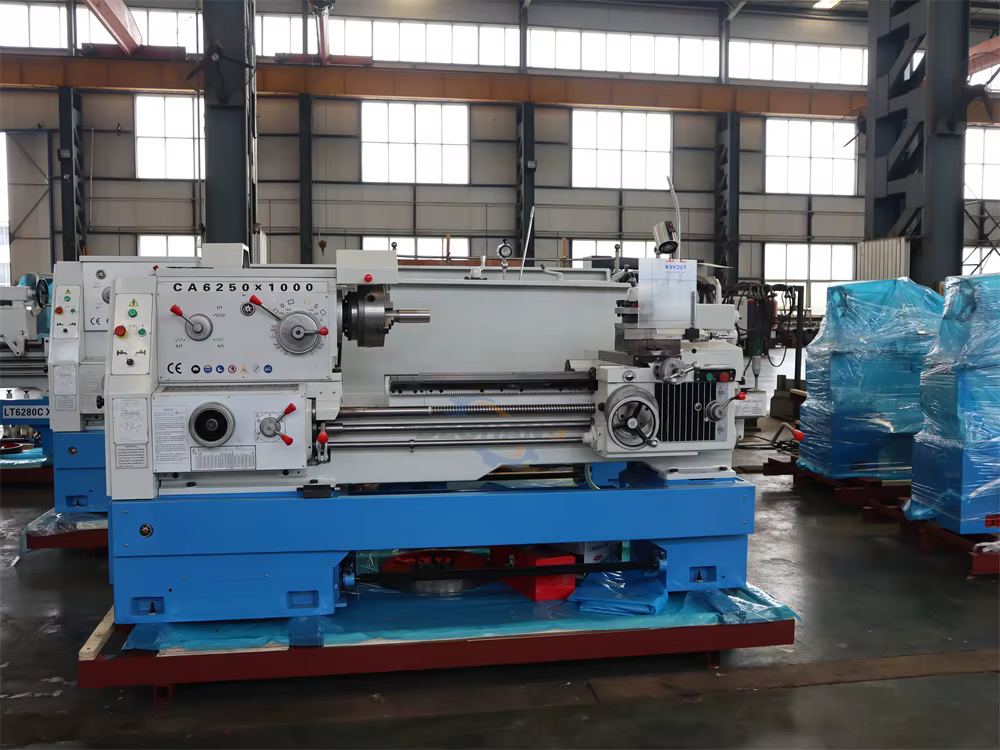

The CA6250 Horizontal Manual Universal Metal Turning Gap Bed Lathe Machine is a high-quality tool designed for precision metalworking. This lathe is perfect for both small and medium-duty tasks. It offers a range of features that make metal turning easy and efficient. With its durable design and powerful performance, the CA6250 is an excellent choice for any workshop.
| Attribute | Details |
|---|---|
| Product Name | CA6250 Horizontal Manual Universal Metal Turning Gap Bed Lathe Machine |
| Tool Shank Size | 25*25 mm |
| Cutting Torque | 500 |
| Dimension (L*W*H) | 2650*1150*1700 mm |
| Max Length of Workpiece | 1000, 1500, 2000, 3000, 4000 mm |
| Max Weight of Workpiece | 200 kg |
| Spindle Speed Range | 10 - 1400 r.p.m |
| Tool Post Stations | 4 |
| Voltage Options | 380 V, 220 V, 440 V |
| Weight | 2200 kg |
| Width of Bed | 400 mm |
| Warranty | 1 Year |
| Specifications | Units | CA6150 CA6150B CA6150C | CA6250 CA6250B CA6250C |
| Swing over bed | mm | 500 | |
| Swing over cross slide | mm | 300 | |
| Swing over gap | mm | / | 720 |
| Gap length | mm | / | 210 |
| Distance between centers | mm | 750/1000/1500/2000/2200/3000/4000 | |
| Bed guideway width | mm | 400 | |
| Spindle bore | mm | 52 B:80 C:105 | |
| Spindle bore taper | - | MT6 B:90 1:20 C:113 1:20 | |
| Spindle speed range | rpm | 10-1400/16-1400 | |
| Spindle speed steps | - | 24 | |
| Top tool post travel | mm | 140 | |
| Cross slide travel | mm | 320 | |
| Tool shank size | mm | 25*25 | |
| Longitudinal feeds range(kinds) | mm/r | 0.028-6.33(64 kinds) | |
| Cross feeds range(kinds) | mm/r | 0.014-3.16(64 kinds) | |
| Longitudinal rapid traverse | m/min | 4 | |
| Cross rapid traverse | m/min | 2 | |
| Metric threads range(kinds) | mm | 1-192(44kinds) | |
| Inch threads range(kinds) | T.P.I. | 2-24(21 kinds) | |
| Module threads range(kinds) | M.P. | 0.25-48(39 kinds) | |
| Diametral pitch thread range(kinds) | D.P. | 1-96(37) | |
| Tailstock quill diameter | mm | 75 | |
| Tailstock quill taper | - | MT5 | |
| Tailstock quill travel | mm | 150 | |
| Main motor power | kw | 7.5 | |
| Coolant motor power | kw | 0.09 | |
| Weight for 750 | kg | 2100 | |
| Weight for 1000 | kg | 2200 | |
| Weight for 1500 | kg | 2400 | |
| Weight for 2000 | kg | 2700 | |
| Weight for 2200 | kg | 2800 | |
| Weight for 3000 | kg | 3500 | |
| Weight for 4000 | kg | 4000 | |
| Dimension for 750 | mm | 2440*1150*1700 | |
| Dimension for 1000 | mm | 2650*1150*1700 | |
| Dimension for 1500 | mm | 3150*1150*1700 | |
| Dimension for 2000 | mm | 3650*1150*1700 | |
| Dimension for 2200 | mm | 3900*1150*1700 | |
| Dimension for 3000 | mm | 4800*1150*1700 | |
| Dimension for 4000 | mm | 5680*1150*1700 | |
| Product Name | CA6250 Horizontal Manual Universal Metal Turning Gap Bed Lathe Machine |
|---|---|
| Tool Shank Size | 25*25 mm |
| Cutting Torque | 500 |
| Dimension (L*W*H) | 2650*1150*1700 mm |
| Max Length of Workpiece | 1000, 1500, 2000, 3000, 4000 mm |
| Max Weight of Workpiece | 200 kg |
| Spindle Speed Range | 10 - 1400 r.p.m |
| Tool Post Stations | 4 |
| Voltage Options | 380 V, 220 V, 440 V |
| Weight | 2200 kg |
| Width of Bed | 400 mm |
| Warranty | 1 Year |
The CA6250 Horizontal Manual Universal Metal Turning Gap Bed Lathe Machine can handle a maximum weight of 200 kg.
The CA6250 lathe is available in three voltage options: 380 V, 220 V, and 440 V.
The spindle speed range of the CA6250 lathe is from 10 to 1400 revolutions per minute (r.p.m.).
The tool shank size for the CA6250 lathe is 25 mm x 25 mm.
The CA6250 lathe comes with a 1-year warranty.
The CA6250 lathe can handle various materials, making it suitable for diverse metalworking projects.
Yes, the CA6250 lathe is ideal for both hobbyists and professionals, catering to a range of machining tasks.
The dimensions of the CA6250 lathe are 2650 mm (L) x 1150 mm (W) x 1700 mm (H).
The total weight of the CA6250 lathe is 2200 kg.
The CA6250 lathe features 4 tool post stations.
The cutting torque of the CA6250 lathe is 500.
Yes, a machinery test report is provided with the CA6250 lathe for quality assurance.
The CA6250 lathe is ideal for turning metal parts and components, suitable for workshops and machine shops.
The CA6250 lathe can accommodate workpieces with lengths of 1000, 1500, 2000, 3000, and 4000 mm.
The CA6250 lathe is designed for low maintenance costs, making upkeep easy.
