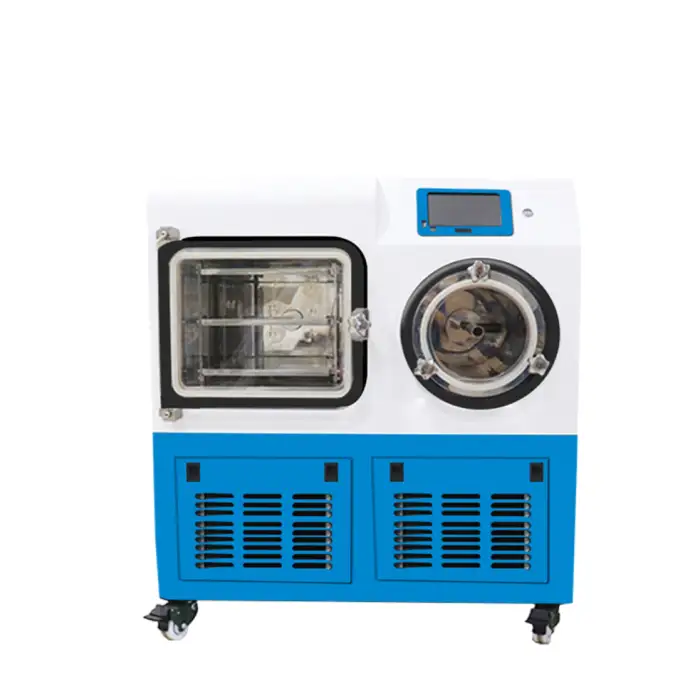

BN-HXLG-20FD/F/FT/50F -80℃ In-situ Freeze Dryers LCD Touch Screen Automatic Device

A compact, automatic in-situ freeze dryer with LCD touch-screen control and high-performance freezing down to -80°C, designed for laboratory, pharmaceutical, food, biotechnology and material preservation applications.

External dimensions: 1200 × 720 × 1100 mm. Single package size: 130 × 82 × 120 cm. Single gross weight: 300 kg.

Available capacity options are approximately 0.2 m² or 0.5 m² (depending on model/configuration). Individual shelf (layer) size is 400 × 270 mm with a ply spacing of 70 mm.

Standard power supply is 220 V, 50 Hz. Total power consumption is approximately 3000 W. Confirm site electrical compatibility before installation.

The refrigeration/condenser system is specified to reach down to -80 °C (high-performance freezing capability).

"In-situ" indicates that freezing and primary/secondary drying occur on the integrated shelves inside the main chamber, so samples are processed in place without moving to an external condenser.

Suitable for biological samples, pharmaceuticals, food products, biotech materials and other heat-sensitive materials. For hazardous, explosive or volatile solvent-containing samples, follow safety regulations and consult the manufacturer before use.

The product description does not explicitly state whether a vacuum pump is included. Vacuum pump inclusion can vary by configuration—please confirm with the supplier or sales representative.

Control is via an LCD touch screen with automatic operation. The system supports programmable cycle parameters (temperature and vacuum profiles), though the exact degree of programmability and data-logging options should be confirmed with the vendor.

Common accessories include additional shelves/trays, sample holders, vacuum pumps, filters and spare seals. Availability depends on configuration—contact sales for a complete accessories list and part numbers.

Install on a level, load-bearing floor with adequate ventilation and service access. Ensure correct mains supply (220 V/50 Hz) and appropriate circuit protection. Allow clearance around the unit for maintenance; consult the manufacturer-provided installation manual for exact clearance and ventilation specifications.

Cycle duration depends on sample type, batch size, cycle parameters and moisture content. Typical cycles range from several hours to multiple days. Perform process development and optimization for each sample type.

Routine maintenance includes defrosting/cleaning the condenser and shelves, inspecting and replacing vacuum pump oil/filters as required, checking door seals and connections, and scheduling refrigeration system servicing. Follow the manufacturer maintenance manual for intervals and procedures.

Certification and warranty details are not specified in the basic product listing. Request information from the supplier about CE/UL or other certifications, warranty period, and the availability of after-sales technical support and spare parts.

Yes. The product supports customization for OEM, ODM and OBM requirements. Contact the manufacturer or sales team to discuss custom specifications, branding and configuration options.
