Products & Applications
Product Configuration
| 30KW system Configuration | |||
| Item | Product Model | Quantity | Description |
| Inverter | JMPS0030 | 1 | LOAD:30KW(380V/400V) MPPT:30KW |
Battery （61.44KWH） | High Voltage Box | 1 | Max Charge Current:100A Max Discharge Current:100A |
| Display screen | 1 | 7-inch LCD display | |
| Outer box | 8 | Size:（820±1%*463±1%*1750±1%）mm | |
Lithium Battery 51.2V/150AH | 8 | Capacity 7.68kWh;8 string 1 cluster Total capacity：61.44kWh | |
| PV | VSMH144-550-M10 (550W) | 54 | Size：2279*1134*35mm 18 pieces/string;A total of 3 string; A total of 29.7kWp |
| combiner box | 1 | 3 inputs 1 Output(1000V/80A) | |
| Mounting brackets | 1 | Installation bracket for pitched roof, flat roof, grass, cement floor (optional) | |
| AC | Distribution box | 2 | Size:Height 300*Width 250*Depth 150MM |
| Circuit breaker | 2 | AC 415V/125A(3P+N) | |
| Accessories | PV/AC/Battery Cable | 1 | Connector/4 square photovoltaic wire/cable (optional) |
| EMS(optional) | JR3000 | 1 | Monitoring datalogger |
| ATS (optional) | ATS-30 | 1 | Connecting power grid and firewood shouldbe selected |
| 50KW system Configuration | |||
| Item | Product Model | Quantity | Description |
| Inverter | JMPS0050 | 1 | LOAD:50KW(380V/400V) MPPT:50KW |
| Battery （92.16KWH） | High Voltage Box | 1 | Max Charge Current:100A Max Discharge Current:100A |
| Display screen | 1 | 7-inch LCD display | |
| outer box | 12 | Size:（820±1%*463±1%*1750±1%）mm | |
| Lithium Battery 51.2V/150AH | 12 | Capacity 7.68kWh;12 string 1 cluster Total capacity：92.16kWh | |
| PV | VSMH144-550-M10 (550W) | 90 | Size：2279*1134*35mm 18 pieces/string;A total of 5 string; A total of 49.5kWp |
| combiner box | 1 | 5 inputs 1 Output(1000V/120A) | |
| Mounting brackets | 1 | Installation bracket for pitched roof, flat roof, grass, cement floor (optional) | |
| AC | Distribution box | 2 | Size:Height 400*Width 300*Depth 200MM |
| circuit breaker | 2 | AC 415V/200A(3P+N) | |
| Accessories | PV/AC/Battery Cable | 1 | Connector/4 square photovoltaic wire/cable (optional) |
| EMS(optional) | JR3000 | 1 | Monitoring datalogger |
| ATS (optional) | ATS-50 | 1 | Connecting power grid and firewood shouldbe selected |
| 100KW system Configuration | |||
| Item | Product Model | Quantity | Description |
| Inverter | JMPS0100 | 1 | LOAD:100KW(380V/400V) MPPT:100KW(optional) |
| Battery （2*92.16KWH） | High Voltage Box | 2 | Max Charge Current:100A Max Discharge Current:100A |
| outer box | 24 | Size:（820±1%*463±1%*1750±1%）mm | |
| Lithium Battery 51.2V/150AH | 24 | Capacity 7.68kWh;12 string 1 cluster*2 Total capacity：184.32kWh | |
| Display screen | 1 | 7-inch LCD display | |
| Master control (communication box) | 1 | Store all battery pack information | |
| DC combiner box | 1 | Battery current sink | |
| PV | VSMH144-550-M10 (550W) | 180 | Size：2279*1134*35mm 18 pieces/string;A total of 10 string; A total of 99kWp |
| combiner box | 2 | 5 inputs 1 Output(1000V/120A) | |
| Mounting brackets | 1 | Installation bracket for pitched roof, flat roof, grass, cement floor (optional) | |
| AC | Distribution box | 2 | Size:Height 500*Width 400*Depth 200MM |
| circuit breaker | 2 | AC 415V/300A(3P+N) | |
| Accessories | PV/AC/Battery Cable | 1 | Connector/4 square photovoltaic wire/cable (optional) |
| EMS(optional) | JR3000 | 1 | Monitoring datalogger |
| ATS (optional) | ATS-100 | 1 | Connecting power grid and firewood shouldbe selected |
| 150KW system Configuration | |||
| Inverter | JMPS0150 | 1 | LOAD:150KW(380V/400V) MPPT:150KW(optional) |
| Battery （4*92.16KWH） | High Voltage Box | 4 | Max Charge Current:100A Max Discharge Current:100A |
| outer box | 48 | Size:（820±1%*463±1%*1750±1%）mm | |
| Lithium Battery 51.2V/150AH | 48 | Capacity 7.68kWh;12 string 1 cluster*4 Total capacity：368.64kWh | |
| Display screen | 1 | 7-inch LCD display | |
| Master control (communication box) | 1 | Store all battery pack information | |
| DC combiner box | 1 | Battery current sink | |
| PV | VSMH144-550-M10 (550W) | 270 | Size：2279*1134*35mm 18 pieces/string;A total of 15 string; A total of 148.5kWp |
| combiner box | 3 | 5 inputs 1 Output(1000V/120A) | |
| Mounting brackets | 1 | Installation bracket for pitched roof, flat roof, grass, cement floor (optional) | |
| AC | Distribution box | 2 | Size:Height 500*Width 400*Depth 200MM |
| circuit breaker | 2 | AC 415V/400A(3P+N) | |
| Accessories | PV/AC/Battery Cable | 1 | Connector/4 square photovoltaic wire/cable (optional) |
| EMS(optional) | JR3000 | 1 | Monitoring datalogger |
| ATS (optional) | ATS-150 | 1 | Connecting power grid and firewood shouldbe selected |
| 250KW system Configuration | |||
| Item | Product Model | Quantity | Description |
| Inverter | JMPS0250 | 1 | LOAD:250KW(380V/400V) MPPT:250KW(optional) |
| Battery （6*92.16KWH） | High Voltage Box | 6 | Max Charge Current:100A Max Discharge Current:100A |
| outer box | 72 | Size:（820±1%*463±1%*1750±1%）mm | |
| Lithium Battery 51.2V/150AH | 72 | Capacity 7.68kWh;12 string 1 cluster*6 Total capacity：552.96kWh | |
| Display screen | 1 | 7-inch LCD display | |
| Master control (communication box) | 1 | Store all battery pack information | |
| DC combiner box | 1 | Battery current sink | |
| PV | VSMH144-550-M10 (550W) | 450 | Size：2279*1134*35mm 18 pieces/string;A total of 25 string; A total of 247.5kWp |
| combiner box | 5 | 5 inputs 1 Output(1000V/120A) | |
| Mounting brackets | 1 | Installation bracket for pitched roof, flat roof, grass, cement floor (optional) | |
| AC | Distribution box | 2 | Size:Height 500*Width 400*Depth 200MM |
| circuit breaker | 2 | AC 415V/630A(3P+N) | |
| Accessories | PV/AC/Battery Cable | 1 | Connector/4 square photovoltaic wire/cable (optional) |
| EMS(optional) | JR3000 | 1 | Monitoring datalogger |
| ATS (optional) | ATS-250 | 1 | Connecting power grid and firewood shouldbe selected |
550w Solar panel
>High module conversion efficiency
>Extended wind and snow load tests
>Withstanding harsh environment
>PID Resistance
>Excellent weak light performance
PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional
>Breaker,SPD and swithches
Battery Pack
＞Safe and reliable
Self-designed BMS
＞Easy installation and maintenance
Standard rack and module, front maintenance
＞High power density
LFP battery，≥160Wh/kg
＞Flexible customization
For different application and installation
＞Racks
1 Rack,143.3kWh
＞Optional
Larger capacity battery packs can be used as required.
Hybrid Solar Inverter
>Modular design
DC/DC and DC/AC modules are designed independently for easy maintenance and replacement
>Expandable
Maximum of 4 inverters can be operated in parallel to form MW level system
PV Mounting System
> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
PV Tools
>Wire Cable Cutter & Stripper
> PV connector Crimper
> PV connector Assembly
>Disassembly Tool
| >Cross Section | 4mm2, 6mm2 Optional |
|---|---|
| >Rated Voltage | 600VDC/1000VDC(TUV) |
| >Rated Current | 55A,70A |
| >Colors | Black For STD, Red Optional |
The total capacity of the 50kW system is 92.16 kWh, comprised of 12 lithium batteries, each with a capacity of 7.68 kWh.
The system includes a JMPS005 inverter, which has a load capacity of 50KW and an MPPT rating of 50KW.
The dimensions of the outer box for the inverter are 820mm (L) x 463mm (W) x 1750mm (H) with a tolerance of ±1%.
Yes, the system comes with mounting brackets that can be installed on pitched roofs, flat roofs, grass, or cement floors.
The maximum charge current is 100A and the maximum discharge current is also 100A.
The system includes 90 solar panels, each rated at 550W, arranged in a total of 5 strings.
The system features a 17-inch LCD display for monitoring and control.
Yes, the system includes an optional JR30001 monitoring datalogger for tracking performance and data.
The system comes with PV/AC/Battery cables, connectors, and optional EMS for enhanced functionality.
Typically, solar panels come with a warranty period of 25 years, but please check the specific warranty details for each component.
Installation services are not included and may need to be arranged separately, but the system comes with installation brackets for ease of setup.
Yes, the system is designed for modular expansion, allowing multiple inverters to operate in parallel for larger capacity needs.

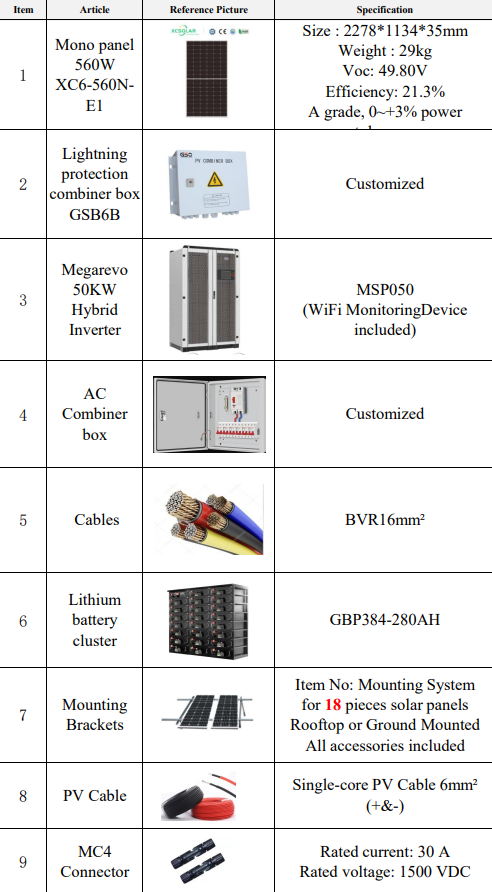

Yes, the 50kW Hybrid Photovoltaic Commercial Solar Complete Power System is designed specifically for commercial applications.
The system utilizes lithium iron phosphate (LFP) battery technology, which offers high power density and safety.
Yes, the system is built to withstand harsh environments with features like PID resistance and excellent performance in weak light conditions.
Discover our latest orders
