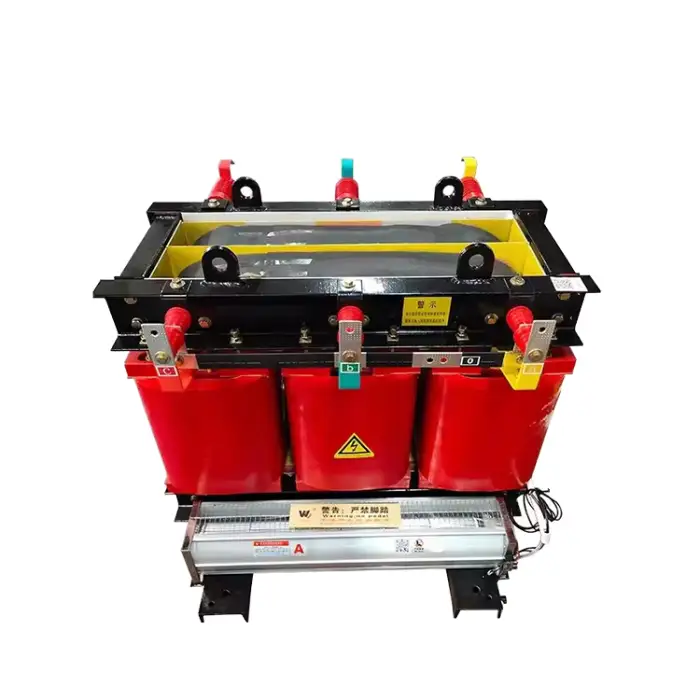

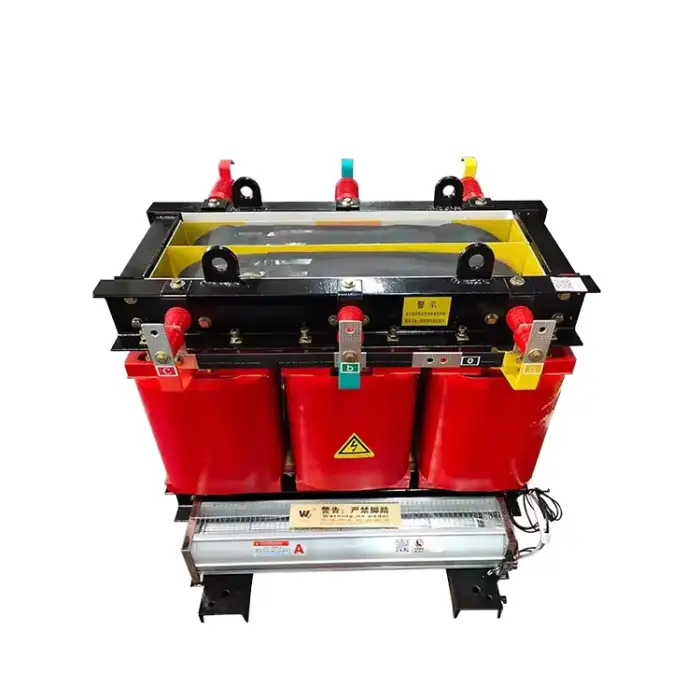

3-Phase Dry Type 50 KVA Power Transformer for Distribution Systems

3-Phase Dry Type 50 KVA Power Transformer for Distribution Systems

The 3-Phase Dry Type 50 KVA Power Transformer is a reliable and efficient solution designed for modern distribution systems. With its robust construction and advanced technology, this transformer ensures seamless energy transfer for a wide range of applications.

Key Features:

• High Input Voltage Range: Operates with primary voltages of 6kV or 10kV, ensuring compatibility with various distribution systems.
• Dry-Type Design: Provides enhanced safety and low maintenance, making it suitable for indoor and outdoor installations.
• Reliable Toroidal Coil Structure: Features toroidal coil construction for optimized performance and durability.
• Copper or Aluminum Windings: Built with high-quality winding materials for improved efficiency and longevity.
• Wide Power Capacity: Available in a range from 30 kVA to 3150 kVA to meet diverse energy needs.
• Rated Secondary Voltage: Delivers a consistent output with a rated secondary voltage of 0.4kV.
• Durable Construction: Designed for long-term use, withstanding harsh conditions while maintaining reliable performance.
• Red Color Finish: A sleek and professional appearance that blends well with modern installations.

This transformer is ideal for applications in power distribution systems, ensuring reliable and efficient energy delivery.

Conclusion:

The 3-Phase Dry Type 50 KVA Power Transformer combines advanced features, durable materials, and efficient design to provide a dependable solution for distribution systems. Whether for industrial or commercial use, this transformer is built to deliver outstanding performance.

Product Info Gallery

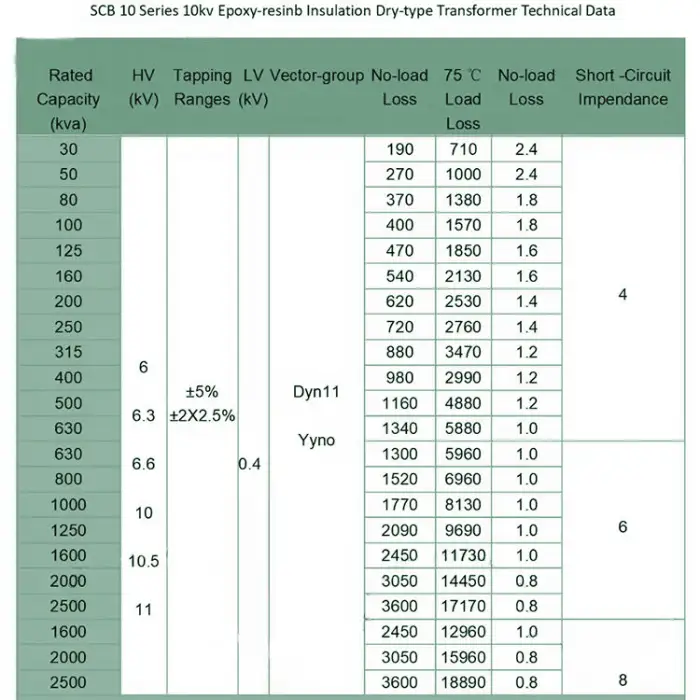

Specification

THSCB10 Epoxy-resin Insulation Dry-type TransformerThe product equipped with perfect temperature protection control system to provide reliable guarantee for transformer safe operation.High quality ,according to the product to have already been put into operation,the operation reliability of products has reached the international advanced level.

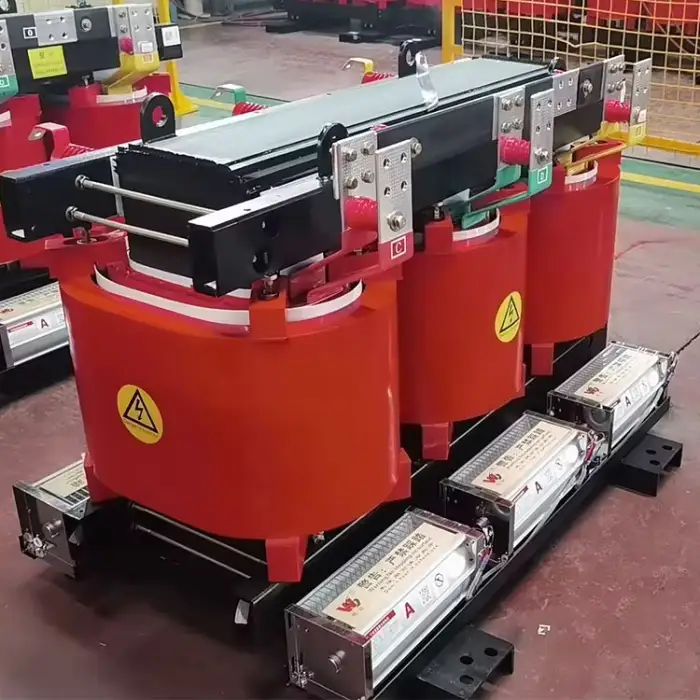

Box-type coil: the low-voltage winding adopts the whole section of copper foil, and is wound on the low-voltage foil winding machine together with Class F turn insulation. Foil coil can solve the problems such as high short circuit stress, unbalanced ampere-turn, poor heat dissipation, winding spiral angle, unstable manual welding quality, etc. At the same time, the winding end of our company is sealed with resin, solidified, moisture-proof and antifouling. The lead copper bar is automatically welded by argon arc welding.Temperature control device: the transformer adopts BWDK series signal thermometer, and the temperature measuring element is buried in the upper part of the low-voltage coil, which can automatically detect and display the working temperature of each phase coil, and has the function of over-temperature alarm and tripping.
