Select a product option to continue.
Explore funding with Afrimart's partners. Subject to provider approval.
The 5kW-20kW Inverter Battery Stackable Energy Storage System is designed to optimize the performance of both wind turbine and solar power systems, providing reliable energy storage for homes. Equipped with Lithium Ion batteries and a powerful inverter, this system offers a scalable solution to meet your energy needs. Whether you are powering a small home or a larger facility, this energy storage system ensures efficient and sustainable power storage.
| Dc Input | |
| Max. PV Input Power | 6500W |
| Max. PV Input Voltage | 370V |
| Startup Voltage | 150V |
| MPPT Voltage Range | 100 - 500V |
| No. of MPPT | 2 |
| Max. Number of PV Strings Per MPPT | 2 |
| AC Input and Output | |
| Norminal AC Input Power | 5000W |
| Norminal AC Output Power | 5000W |
| Max. AC Output Apparent Power | 6000VA |
| Max. AC Output Current | / |
| Norminal Output Voltage | 220VAC |
| AC Voltage Range | Max 240VAC |
| Norminal Output Frequency | 50 / 60Hz |
| Ouput Power Factor | 0.8 Leading - 0.8 Lagging |
| Output THDi (@ Norminal Output) | ＜3% |
| Battery Input and Output | |
| Nominal Battery Voltage | 51.2V |
| Battery Voltage Range | 42 - 57V |
| Max. Charging Current | 80A |
| Max. Discharging Current | 150A |
| Battery Box | |
| Number of Battery Modules | 2 |
| Storage Capacity | 20KWH |
| Nominal Voltage | 51.2V |
| Battery Voltage Range | 42 - 57V |
| Max Discharge Current | 150A |
| Battery Type | LFP |
| Battery Brand | / |
| Cooling | / |
| Protect | BMS Inside |
| Battery Module | |
| Module Capacity | 10KWh |
| Module Dimensions (W*H*D） | 214*550*621mm |
| Module Weight | / |
| General Specification | |
| Enviornmental Protection Rate | IP21 |
| Ambient Temperature Rate | -25~45ºC |
| Communication | 4G / WIFI |
| Remote Access | APP / Website |
| Warrant Inverter | 2 years |
| Warrant Battery | 5 years |
| *product specification are subject to change without further notice. |
The 5kW-20kW Inverter Battery Stackable Energy Storage System offers a robust and customizable solution for energy storage, ensuring your home benefits from a reliable and renewable energy supply.
| Max. PV Input Power | 6500W |
|---|---|
| Max. PV Input Voltage | 370V |
| Startup Voltage | 150V |
| MPPT Voltage Range | 100 - 500V |
| No. of MPPT | 2 |
| Max. Number of PV Strings Per MPPT | 2 |
| Norminal AC Input Power | 5000W |
| Norminal AC Output Power | 5000W |
| Max. AC Output Apparent Power | 6000VA |
| Max. AC Output Current | / |
| Norminal Output Voltage | 220VAC |
| AC Voltage Range | Max 240VAC |
| Norminal Output Frequency | 50 / 60Hz |
| Ouput Power Factor | 0.8 Leading - 0.8 Lagging |
| Output THDi (@ Norminal Output) | ＜3% |
| Nominal Battery Voltage | 51.2V |
| Battery Voltage Range | 42 - 57V |
| Max. Charging Current | 80A |
| Max. Discharging Current | 150A |
| Number of Battery Modules | 2 |
| Storage Capacity | 20KWH |
| Nominal Voltage | 51.2V |
| Max Discharge Current | 150A |
| Battery Type | LFP |
| Battery Brand | / |
| Cooling | / |
| Protect | BMS Inside |
| Module Capacity | 10KWh |
| Module Dimensions (W*H*D） | 214*550*621mm |
| Module Weight | / |
| Enviornmental Protection Rate | IP21 |
| Ambient Temperature Rate | -25~45ºC |
| Communication | 4G / WIFI |
| Remote Access | APP / Website |
| Warrant Inverter | 2 years |
| Warrant Battery | 5 years |

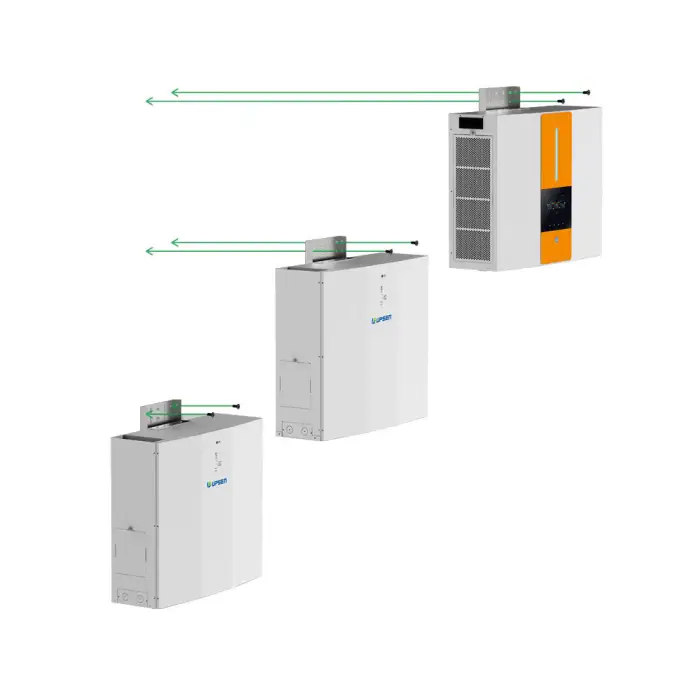

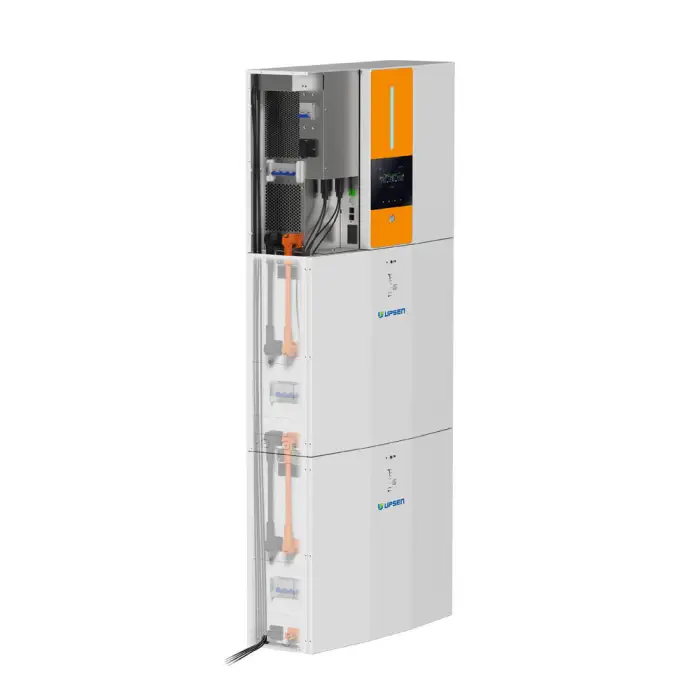

| Stackable Energy Storage | The system's stackable design allows for easy expansion, making it adaptable to your energy needs. Whether you require 5kW, 10kW, or 20kW of energy storage, you can customize the system to match your power requirements. |
| Lithium Ion Battery | Equipped with high-quality Lithium Ion batteries, this system provides efficient energy storage with a longer cycle life and superior performance compared to traditional battery types. |
| Powerful Inverter | Comes with a reliable inverter capable of supporting up to 20kW of load power, ensuring that your stored energy can be used effectively for household applications. |
| Wide Voltage Range | Offers a standard output voltage of 220V, compatible with typical household appliances and systems. |
| Efficient Power Conversion | With a 50Hz output frequency, the system delivers smooth and stable power for a variety of applications, from lighting to powering appliances. |
| Ground Mounting | Designed for easy installation, the system uses a ground mounting type, ideal for residential properties with available outdoor space. |
| Ideal for Wind and Solar Systems | Perfectly complements wind turbines and solar power systems, allowing you to store energy generated from renewable sources for use during non-production periods. |
| Long Working Time | The system provides efficient energy storage for continuous use, making it perfect for homes that rely on renewable energy sources for most of their power needs. |
| Voltage | 220V |
The maximum power output of the system is 20kW, making it suitable for a variety of household applications.
Yes, the system features a stackable design that allows you to easily expand the energy storage capacity from 5kW up to 20kW.
The system is equipped with high-quality Lithium Ion (LFP) batteries, which provide efficient energy storage and have a longer cycle life compared to traditional batteries.
Yes, this energy storage system is designed to work effectively with both wind turbines and solar power systems.
The standard output voltage is 220V, which is compatible with typical household appliances.
The system operates at a nominal output frequency of 50Hz, delivering smooth and stable power for various applications.
Each battery module has a storage capacity of 10kWh, and the system can accommodate up to 2 modules for a total of 20kWh.
The system operates efficiently in ambient temperatures ranging from -25ºC to 45ºC and has an environmental protection rate of IP21.
You can monitor the system remotely via an APP or website, allowing for convenient access to performance data.
The inverter comes with a 2-year warranty, while the batteries are covered for 5 years.
The maximum charging current is 80A, and the maximum discharging current is 150A.
Yes, the system is designed for easy ground mounting, making it suitable for residential properties with available outdoor space.
The system supports a maximum PV input power of 6500W and a voltage range of 100 - 500V, with two MPPTs for optimal solar panel performance.
You can connect up to 2 PV strings per MPPT, allowing for flexibility in your solar panel setup.
Each battery module weighs 214 kg, and the dimensions are 214mm (W) x 550mm (H) x 621mm (D).
