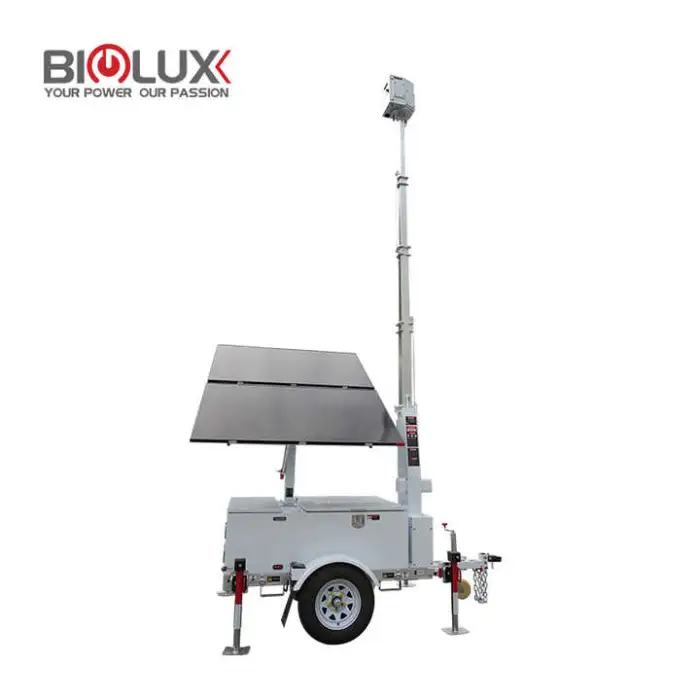

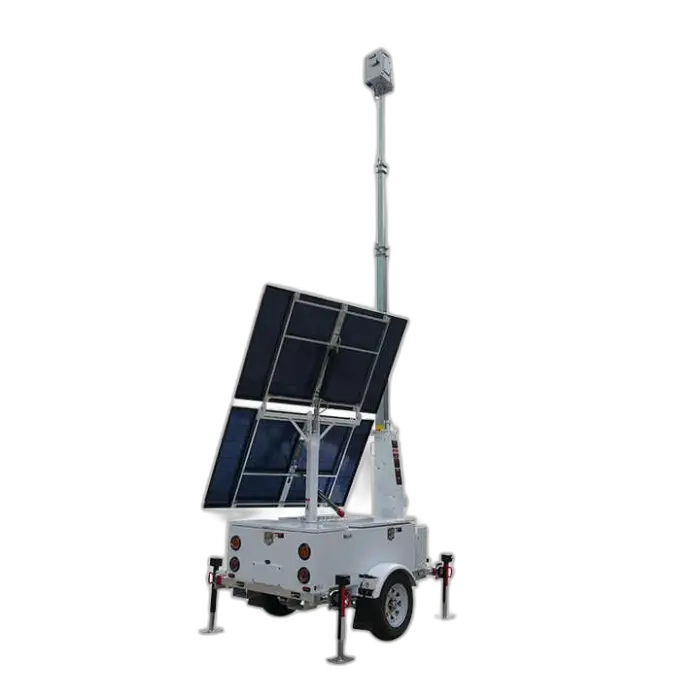

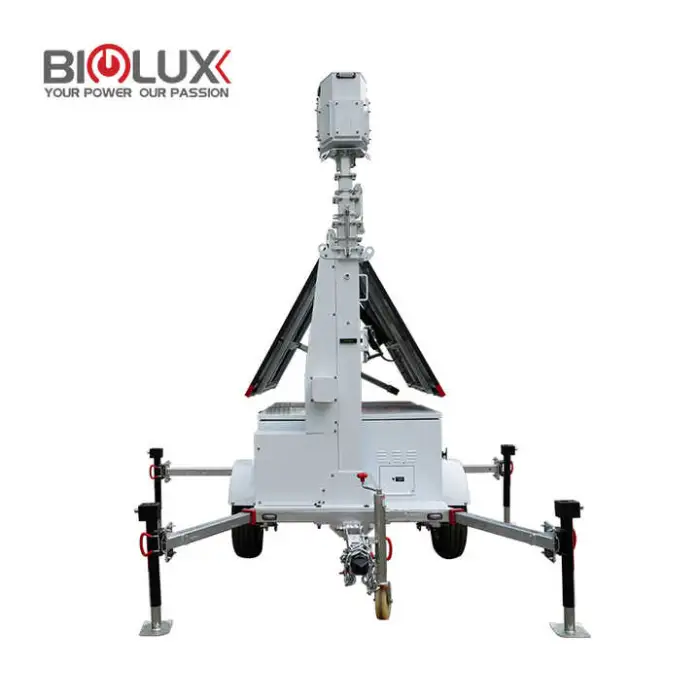

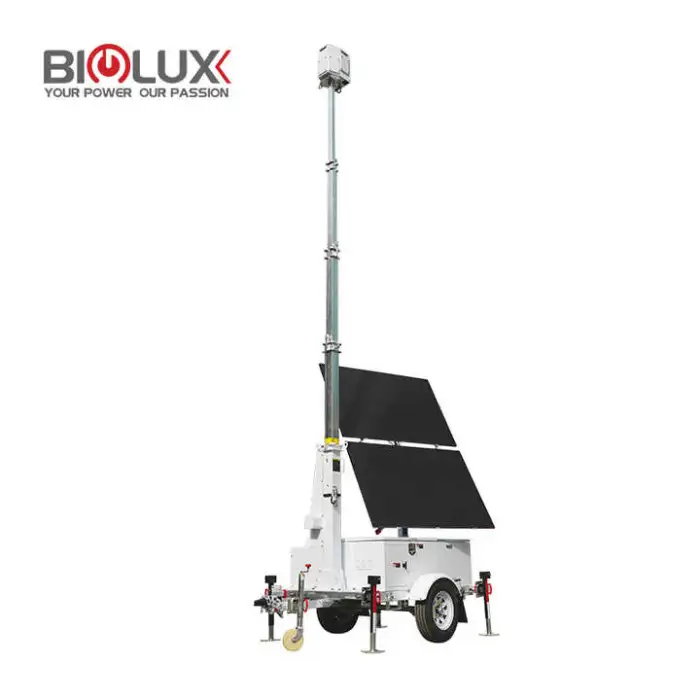

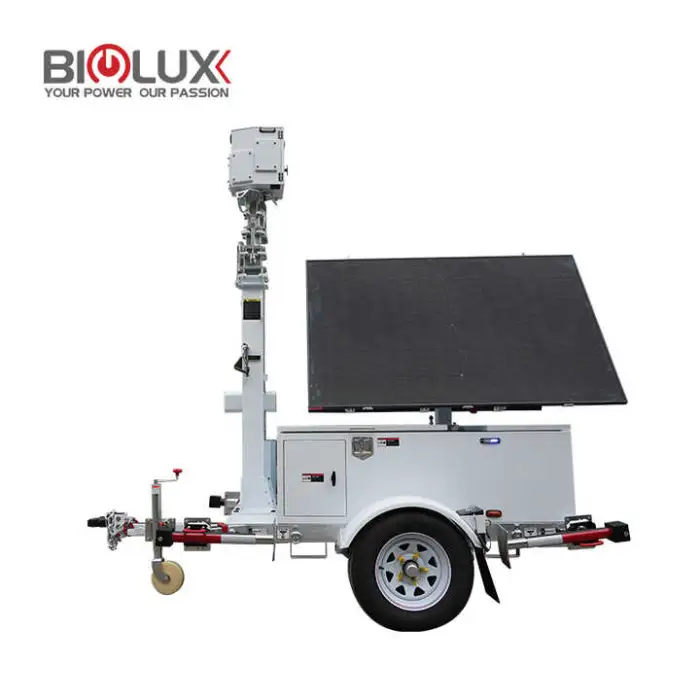

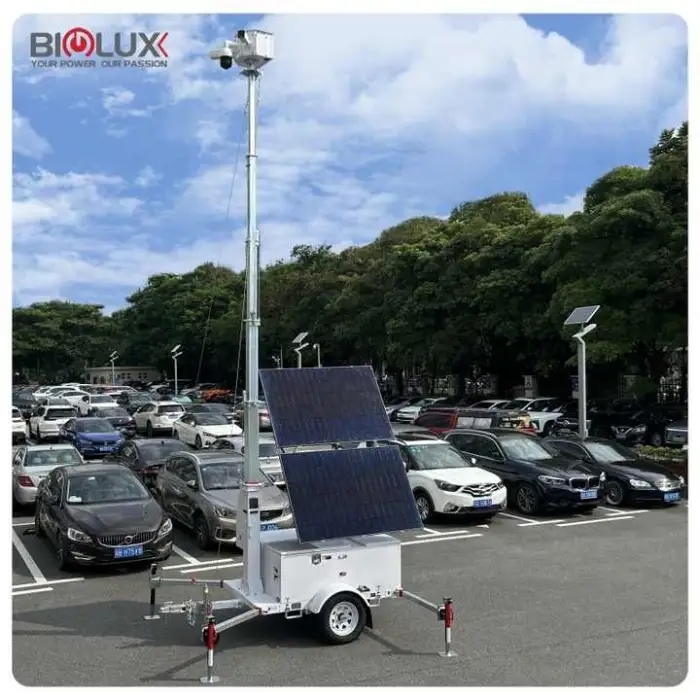

Biglux 2025 960w Solar Panels Mobile Solar Surveillance Trailer - Ideal for Remote Areas, No Maintenance Needed

The spec sheet lists two 600W panels (2x600W = 1200W gross panel rating). However the MPPT controller is rated DC24V/40A, which corresponds to a maximum harvest of about 960W. Confirm with the manufacturer which panel configuration and controller settings are shipped for your unit.

The trailer includes 4 × 200Ah, 12V batteries for a stated total capacity of 9,600Wh. (4 × 200Ah × 12V = 9,600Wh). The exact internal wiring (series/parallel) to achieve system voltage is implemented by the manufacturer.

Runtime depends on your system load. Example estimates: a small setup drawing ~50W (NVR + cameras + modem) could run ~192 hours (9,600Wh ÷ 50W) without solar. A heavier load (200W) would run ~48 hours. With sunlight, the solar array and MPPT will extend runtime or maintain full operation.

With the controller's peak input (~960W), a full recharge from empty would take roughly 10–14 hours of peak sun (9,600Wh ÷ ~960W, plus system/MPPT inefficiencies). Actual charge time varies with weather, panel configuration, and state of charge.

The product is marketed as 'no maintenance needed' for normal operation, but routine checks are recommended: inspect mounting hardware, wiring, battery condition, outriggers, and clean solar panels if heavily soiled to ensure optimal performance.

IP65 means the unit is dust-tight and protected against low-pressure water jets from any direction. It is suitable for outdoor use, but sealed enclosures should still be checked periodically to ensure gaskets and closures remain intact.

The telescopic aluminum alloy mast extends to 7 meters and has 4 sections. It is raised and lowered using a manual winch (manual winch lifting).

The winch/mast assembly is rated windproof to 117 kph (~73 mph). Always lower the mast in extreme weather conditions and follow site-specific safety procedures.

The manual winch has a rated lifting load of 40 kg. Do not exceed this payload rating — include the weight of cameras, housings, and any accessories when calculating total mass at the mast top.

The trailer is built to US/EU/AU standards and uses a ball hitch with a single axle design. Confirm the exact hitch size and towing weight with the supplier to ensure compatibility with your vehicle and local regulations.

The system is a DC-based setup (system input listed as DC24V). Many cameras run on 12V or PoE — you may need a DC–DC converter or inverter and PoE injector/switch depending on your camera requirements. Confirm power outputs provided or request optional inverters/PoE equipment.

Typical deployment (position trailer, stabilise outriggers, extend mast and connect equipment) can be completed by one or two people in roughly 10–30 minutes depending on experience and site conditions.

Yes — the trailer color is listed as customizable. Other custom options (camera mounts, enclosures, telematics/GPS, battery chemistry, and additional accessories) may be available — contact the manufacturer or dealer for configurable options.

Recommended measures include wheel locks, trailer coupler locks, physical security cages/locks for camera and electronics enclosures, GPS/telemetry tracking, and site-level security measures. Ask the supplier about optional anti-theft packages.

The specification sheet provided does not list certifications, warranty length, or detailed operating temperature ranges. Request official documentation from the manufacturer/distributor for warranty details, CE/UL/other certifications, and environmental operating limits before purchase.
