100T/4000 Automatic Hydraulic Bending Machine Tool CNC Press Brake

Product Information:

ZWHOPES®EH2024 Series Electric-hydarulic Synchronous CNC Press Brake

ZWHOPES® EH2024 Series Press Brake is a new CNC bending machine launched by ZWHOPES Group in 2024, and is suitable for manufacturers with high precision and cost performance requirements. ZWHOPES® 4-axis CNC Bending Machine is our most popular model by volume and a true workhorse, which is constructed of high quality parts and offers serious reliability. Y1 & Y2 Synchronization technology ensure high approach, bend and return speeds. It`s bending length capability and pressure range can be customized to meet various producing requirements.

Stable and durable performance of the machine body

1, The machine frame integrated welding.

2, The machine frame formed by the CNC three-dimensional machining center in one process,which ensures the parallelism and verticality of each mounting surface.

3,Internal stress lamination by tempering Shot blast to remove rust and anti-rust treatment. 4,Shot blast to remove rust and anti-rust treatment.

Scientific design

1, Synchronous movement of Y1 and Y2 axes each controlled by independent cylinder.

2,Possibility to add options and upgrades on the configuration, at later stage.

Environmental friendly
low noise during waiting and fast down (less than 25 decibels), pressing and return, as the pressure in the hydraulic system is the closed loop control of the servo main motor.
Energy consumption lower than general machine by 60% by using servo motor.

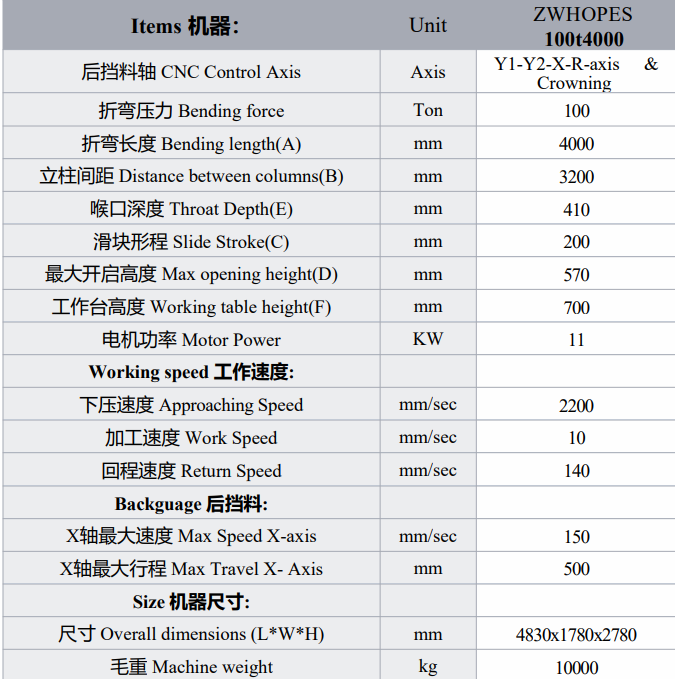

Technical Parameters

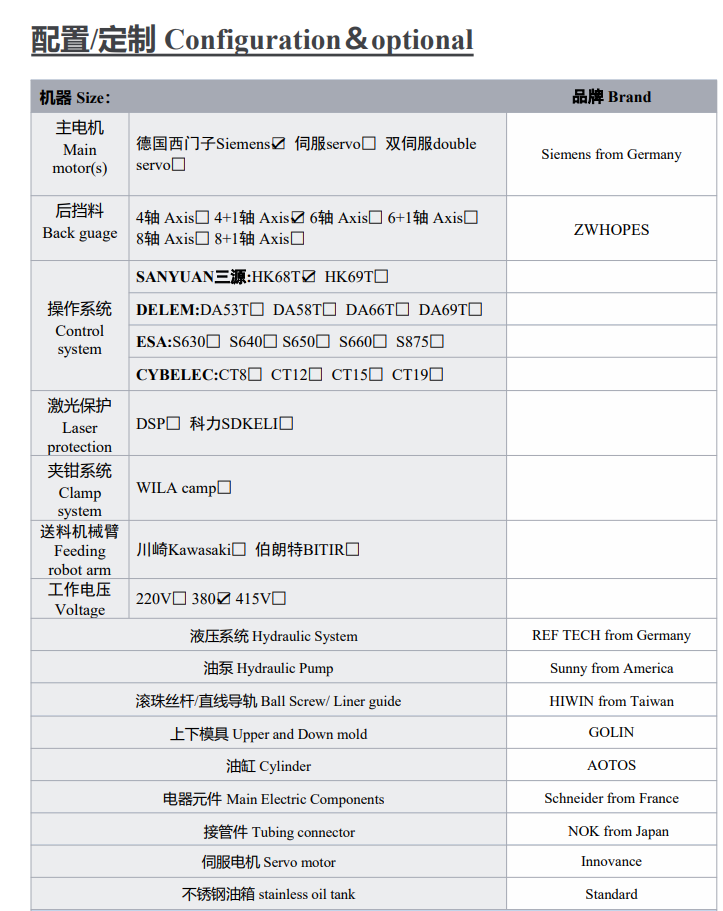

Control System

ZWHOPES CNC bending machine can be equipped with various control systems.

Our high-efficiency backgauge system provides our customers with different automation solutions.

2 AXIS BACK GAUGE (X,R)

4 AXIS BACK GAUGE (X,R,Z1,Z2)

6 AXIS BACK GAUGE (X1,X2,R1,R2,Z1,Z2)

Machine Display

DELEM DA-53T Controller System:

1. Quick, one page programming;

2. Hotkey navigation;

3. 7" widescreen colour TFT;

4. Up to 4 axis (Y1, Y2, and 2 auxiliary axes);
5. Workbench deflection compensation control;

6. USB peripheral interface;

7. Advanced Y-axis control algorithm, which can control both closed-loop and open-loop valves;

8. Panel mounting structure, optional suspension box;

9. Full touch screen.

High Efficient Working Table

1, You can use the whole bending length as there are no interference contours.

2, CNC customized mold

3, Quick clip:fast tool changes thanks to vertical set up，to reduce your set up times.

4,Supporting arms: The ergonomic support brackets and led work area illumination serve to maximize your operating ease.

5.Hydraulic Valve (Rexroth from Germany)

6, GIVI Grating ruler(from Italy): precise positioning stroke travel

7, Automatic Crowning System: To give more accurate bending angle

8, Laser safe

High efficient and powerful back gauge

1, Servo motor drive back gauge: Servo drive back gauge system to increase speed.and energy saving.

2, The ball screw and linear guidedynamic back gauges and the high speed axis thanks to the ball screw and linear guide.

3, Double linear guides and integrated support beam to improve finger movement accuracy.
