10 Elements Automatic Ultrasonic Weather Station Sensor RS485 Wind Temperature Humidity Pressure Rainfall Illuminance Noise PM

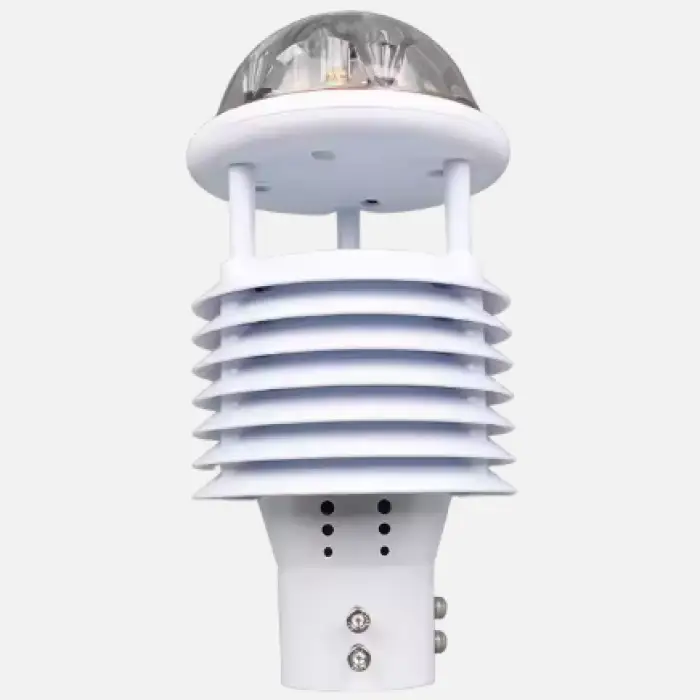

FengTu FT-WQX10 Ultrasonic Weather Station Sensor

The FengTu FT-WQX10 Ultrasonic Weather Station Sensor is an advanced, compact solution designed for precise meteorological data collection. Built with durability and high integration in mind, this sensor is perfect for applications in meteorology, intelligent industries, and more. It provides accurate wind speed and direction readings using ultrasonic technology, ensuring reliable performance even in harsh environments.

Key Features

Ultrasonic Technology: The FT-WQX10 uses advanced ultrasonic technology to measure wind speed and direction, providing accurate and reliable data without the moving parts that traditional anemometers require.

Compact and Integrated: This weather sensor is highly integrated and compact, making it easy to install and ideal for use in confined spaces or remote locations. Its design ensures minimal maintenance and long-lasting performance.

Wide Communication Options: The sensor features RS485 output with Modbus RTU communication protocol for easy integration into data collection systems. An optional RS232 output is available for additional flexibility.

Durable Construction: Made from ASA engineering plastic, the FT-WQX10 is built to withstand harsh weather conditions. With a protection grade of IP65, it is dust-tight and water-resistant, ensuring reliable performance in various environmental conditions.

Power Supply: The sensor operates with a DC12V power supply, ensuring efficient energy use for continuous operation.

Highly Certified: The FT-WQX10 Ultrasonic Weather Station Sensor is certified with CE, RoHS, EMC, LVD, ISO9001, and ISO14001, ensuring it meets high standards of quality and environmental responsibility.

Customizable Solutions: FengTu offers OEM, ODM, OBM, and software reengineering support, making it adaptable to your specific needs and system requirements.

1-Year Warranty: The FT-WQX10 comes with a 1-year warranty, providing peace of mind and ensuring consistent performance over time.

Conclusion

The FengTu FT-WQX10 Ultrasonic Weather Station Sensor is an excellent solution for precise and reliable weather monitoring. Its ultrasonic technology, compact design, and durable construction make it ideal for use in meteorology, intelligent industries, and various environmental monitoring applications. With its flexible communication options and customizable features, this sensor is perfect for any weather station setup.

Product Info Gallery

Product Presentation

FT-WQX series ultrasonic weather station is designed by the standard of WMO(World of Meteorological Orgnization). The instrument is widely used in meteorological monitoring, navigation, environmental protection, animal breeding, pier, bridge, tunnel etc. It can monitor wind speed, wind direction, ambient temperature, relative humidity, barometric pressure, rainfall, PM2.5,PM10, CO,NO2, SO2, O3. We have 8models, each model is with different parameters, so you can choose anyone suitable for you.
The weather station is developed based on the principle of ultrasound. Our FT-WQX series ultrasonic weather station is designed with new technology---phase demodulation and phase discrimination. Compared with the time-difference method(old technology), our device is more accurate and durable when using.

Detailed Images

Hidden Ultrasonic Probe

The wind monitor sensors are hidden at the top of instrument, compared with the one at down side and outside, it is more clean,
specially in snow or raining circumstances. We use the continuous frequency conversion principle to measure the data. By the phase
discrimination and phase demodulation principle to confirm the wind specifications. We got two patents for this sensor.

Other Sensors

The sensors for ambient temperature, relative humidity, barometric pressure, mean while, also can integrated other sensors together as your requires, such as noise, PM2.5, PM10, CO, NO2, SO2, O3 etc. Just tell us what you need.

Rainfall and Illuminance Sensors

Optics principle

Maintenance free

No need to climb up to clean the device. Very suitable for integrating to other equipment.

Flange(optional)

When install the sensor at upright tube, will need this flange to connect.

This part is Optional!

Communication Term

Modbus RTU.

The standard type is RS485. RS232 is optional. Also accept other ways for communication as client's requirement.

RS232(optional)

Optional output interface.

This part is Optional!

Product Description

FT-WQX10 ultrasonic weather station is with 10 parameters, we adopt highly integrated system, it can simultaneously measure five meteorological parameters: Wind Speed, Wind Direction, Ambient Temperature, Relative Humidity, Barometric Pressure, Rainfall, Illuminance, Noise, PM2.5, PM10. It can make 24 hours continuous monitoring.

Compared with traditional weather station, we avoid the data delay from sensor start and demodulator circuit, and the data inaccuracy from temperature variation. Our new technology solves all the problems and makes the instruments more stable and accurate.
