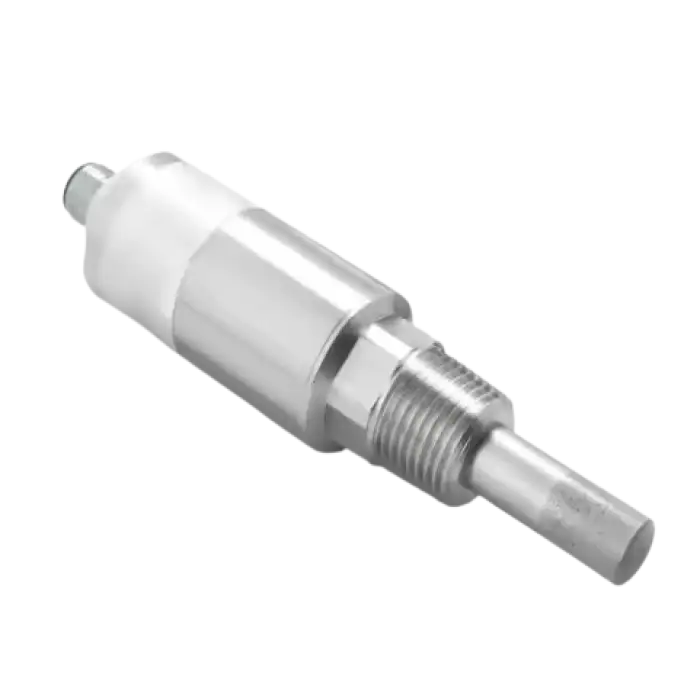

The WT Sensor PCD01 Dew Point Sensor is an advanced and reliable solution for precise monitoring of dew point levels. Built with stainless steel and offering robust performance, this sensor is ideal for use in a variety of industrial applications where accurate dew point measurement is crucial. With customizable support options and strong certifications, the PCD01 ensures consistent, high-quality results in challenging environments.
Accurate Dew Point Measurement: The PCD01 sensor delivers precise dew point readings with a repeatability of 0.5°C, ensuring highly accurate data for critical applications.
Wide Operating Temperature Range: With an operating temperature range from -40°C to +80°C, this sensor is capable of functioning in a wide variety of environments, making it suitable for extreme conditions.
Durable Stainless Steel Construction: Made from stainless steel, the PCD01 offers durability and resistance to corrosion. The sensor also features a stainless steel weaving filter with pore sizes of <8μm for enhanced protection.
High Operating Pressure: The PCD01 is designed to handle operating pressures of up to 5MPa, with options for up to 15MPa, making it ideal for high-pressure applications.
RS485 and 4-20mA Output: The sensor provides both RS485 and 4-20mA output options for seamless integration into existing systems. This makes it adaptable for use in various industrial setups.
Flexible Power Supply: With a wide supply voltage range of 8VDC to 35VDC, the PCD01 is compatible with a range of power sources.
Fast Response Time: The sensor offers a quick response time of just 5 seconds, ensuring fast detection and monitoring of dew point changes.
Customizable Options: The PCD01 offers OEM and ODM customization support, allowing you to tailor the sensor to meet specific application needs, including pressure connection options such as G1/2''.
Certifications: The PCD01 is CE, RoHS, and ISO 9001 certified, ensuring that it meets high-quality standards for safety, environmental compliance, and manufacturing.
The WT Sensor PCD01 Dew Point Sensor provides accurate, reliable, and durable dew point monitoring for industrial applications. With its stainless steel construction, high operating pressure capabilities, fast response time, and customizable options, it is the perfect choice for anyone requiring precise environmental control in demanding conditions. Invest in the PCD01 to ensure optimal performance and protection in your systems.
WTsensor OEM Factory 4-20 mA 0-5V High Pressure Dew Point Transmitter MODBUS RTU RS485 Temperature And Humidity Sensor
Features
■ High accuracy and long-term stability
■ Capable of temperature compensation and linear adjustment
■ Standard MODBUS RTU protocol, RS-485 communication interface
■ More size of connector for different environment to be easily installed
■ High pressure, low humidity, dew point Max scaling range – 100 ~ + 60 dp℃
■ Free programmable software which can adjust dew point range
Applications
■ Compressed air system / Freezer / Adsorption machine
■ Plastic dryer / Industrial drying process
■ Paper / Chemical process monitoring
| Performance parameters | ||
| DP range | DP range | |
| Output signal | Standard RS-485 & 1 analog output | |
| 0-20mA / 4-20 mA / 0-1VDC / 0-5VDC / 0-10VDC | ||
| Signal connection | 3-wire | |
| Modbus | Standard RS-485 & 1 analog output | |
| Power Supply | 8VDC to 35VDC & 10VAC to 30VAC | |
| Linear accuracy | ± 2 dp ℃ ( at + 25 ℃ ) ± 0.02%F.S/℃ | |
| Response time | ＜ 20S (temp.at+25℃) | |
| Operating temp. for housing | - 40 ~ + 80 ℃ | |
| Operating humidity for housing | 0 ~ 95 RH % | |
| Operating temp. for probe | - 70 ~ + 80℃ | |
| Storage temperature | - 25 ~ + 60 ℃ | |
| Bearable pressure | 16 bar | |
| Current | DC24V, 50 mA | |
| Consumption | M12 connector | |
| Power Supply | 8-35 VDC & 10-30 VAC | |
| Protection | Body IP65 ( probe : IP20) | |
| Housing | S.S.( SUS304) | |
| Probe | S.S. ( SUS304 ) / SUS sintered filter ( SUS316 ) | |
| Weight | 233g |
