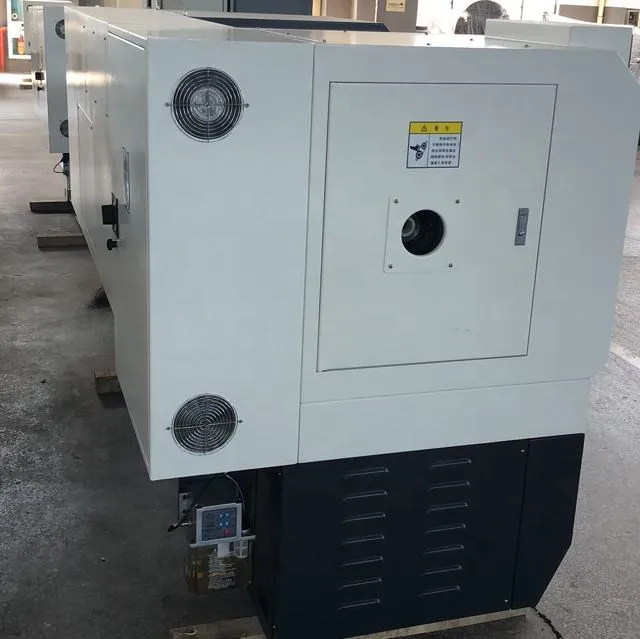

BH-QK1325A Precision CNC Oil Pipe Lathe | P5-Grade Spindle with 0.01mm Runout
The BH-QK1325A Precision CNC Oil Pipe Lathe is a strong and smart machine. It cuts metal pipes with great accuracy. This lathe works well for medium-duty jobs. It has a P5-grade spindle that keeps runout at just 0.01mm. That means every cut is smooth and exact. You can choose from SIEMENS, GSK, or FANUC control systems. The BH-QK1325A Precision CNC Oil Pipe Lathe is built for speed and repeatability. It comes with a one-year warranty and free replacement parts.
Specifications
| Attribute | Details |
|---|---|
| Type | Horizontal |
| Max. Length of Workpiece | 750 mm |
| Max. Weight of Workpiece | 300 kgs |
| Positioning Accuracy | ±0.01 mm |
| Repeatability (X/Y/Z) | ±0.01 mm |
| Repetitive Position Precision | 0.005 mm |
| Number of Axes | 2 |
| CNC Control System | GSK (SIEMENS, FANUC optional) |
| No. of Spindles | Single |
| Spindle Bore | 52 mm |
| Range of Spindle Speed | 200–2000 r/min |
| Tool Post Stations | 4 |
| Tool-Post Working Position | Horizontal 4-Position Turret |
| Tool Dimension | 25 × 25 mm |
| Travel (X Axis) | 235 mm |
| Travel (Z Axis) | 800 mm |
| Width of Bed | 300 mm |
| Machining Capacity | Medium Duty |
| Cutting Torque | 7.5 |
| Workplaces Precision | IT6 |
| Workplaces Roughness | Ra0.8 |
| Work Frequency | 50/60 Hz |
| Voltage | 220V / 380V |
| Dimension (L×W×H) | 2200 × 1200 × 1520 mm |
| Weight | 1800 kg |
| Brand Name | BH |
